Small Horizontal Spiral Centrifuge

Product Description

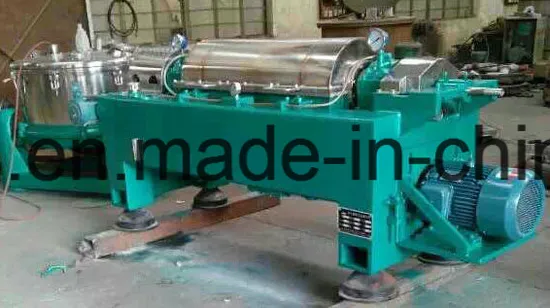

Product Description LW 250 centrifuge is widely used by users, with large size, rotating speed of 5000r/min, small processing capacity, etc. According to the actual use, it can be divided into: clarification type, dehydration type, concentration type, separation type, classification type and extraction type, Users can choose by themself.
The actual project has been used in the following industries: papermaking, magnetic particle treatment, sewage treatment, pharmacy, food, laboratory, petroleum industry, new energy, biotechnology, chemical fiber, polymeric materials ,leather manufacturing, cosmetics, printing and dyeing,knitting, etc.
Introduce:
LW Horizontal Decanter Centrifuges feature continuous feeding and discharge. This chemical separation equipment has been applied Two-Phase (Solid - Liquid) and Three-Phase (Solid - Liquid - Liquid) slurries separation industry of chemicals, pharmaceutical, environment protection, as well as mining and food, etc.

Working principle LW500 decanter centrifuge uses the centrifugal force generated by the high-speed rotating drum to intercept the solid particles in the suspension in the drum and automatically discharge them out of the machine under the action of the force. At the same time, under the action of centrifugal force, the liquid in the suspension is thrown out through the filter medium and the small hole of the drum, so as to achieve the purpose of liquid-solid separation and filtration.
According to different materials, it is mainly divided into decanter centrifuges for maximum concentration of solids, decanter centrifuges for separation of mixed liquid, which are mainly used for separation of soybean, peanut and other plant and animal protein, purification of fruit juice and separation of fiber, separation of plant extract, separation of fish meal, separation of distiller's grains, as well as treatment of industrial wastewater and treatment of catering waste.
Advantage:
This liquid clarifying device adopts horizontal design which balances the layout of electric motor and bowl. As a result, outstanding operation stability generates minimized vibration. Dual electric motor control enables stepless speed adjustment on bowl and spiral components. Scroll conveyor flight inside this continuous centrifuge is painted by abrasion resistant alloy or welded by hard alloy. Main components on our horizontal decanter centrifuge, such as rotating bowl and spiral parts, are made from corrosion resistant stainless steel or dual-phase steel, whereby offering exceptional speed limits and separation ratio. Our mud dewatering equipment comes with three options including cycloidal gear, planetary gear and hydraulic differential, resulting in large rang of differential adjustment. Therefore, this industrial centrifuge can be applible to diverse solids. Multiple protections are available on our horizontal decanter centrifuge to ensure operation safety, including over-vibratation protection, bearing temperature detection, screw conveyor torque protection rotating and differential speed detection, as well as nitrogen-filled explosion-proof protection, motr overload and over heat protection. Main Characteristics Two motor, two frequency inverter drive system, realize differential speed stepless regulation and energy return
Drum cone cylinder material outlet: Replaceable wear resistant, corrosion resistant ceramic alloy bushing.
Main bearing: Sweden NSK
Main sealing parts: Taiwan SOG, material is Nitrile butadiene rubber
Main and vice inverter use common DC bus, vice motor's function is generating electricity ( save electricity)
PLC remote control (Customer selection).
Convenient maintenance and low energy consumption
Customized decanter centrifuges with different performance according to material characteristics
The screw driving force and speed of the equipment can be customized.
The materials can be customized to meet the corrosion resistance of different materials
The angle of spiral roller can be customized. Convenient maintenance and low energy consumption ller can be customized.

Main application
Product Parameters

Model	Diameter	Length	Max Speed (R/Min)	L/D Ratio	G-Force (G)	Capacity	Main Motor Power	Weight	Dimension (L*W*H)
	(Mm)	(Mm)				(M3/H)	(Kw)	(Kg)	(Mm)
LW250*1000	250	1000	5000	4	2195	0.5-2	7.5	1050	2420*700*1010

Packaging & Shipping
Company Profile FAQ 1. What Factors Affect Decanter Centrifuge Separation Efficiency?
Factors like rotational speed, feed rate, solid concentration, and bowl design impact the efficiency of Decanter centrifuge separation.

2. What Types Of Decanter Centrifuge Machines Are Available?
We offer horizontal, vertical, and conveyor-scroll designs to cater to different separation needs.

3. How Effective Is Decanter Centrifuge In Solid-Liquid Separation?
Decanter centrifuge provides high separation efficiency, making it ideal for dewatering and clarifying processes.

4. What Is The Pricing Range For Decanter Centrifuges?
Pricing varies based on specifications, capacity, and features. We provide competitive pricing to suit your requirements.

5. What Is The Typical Production Lead Time For Decanter Centrifuges?
Production lead time usually ranges from 25 to 50 days, depending on the model and customization.

6. Is An Advance Payment Required For Ordering Decanter Centrifuges?
Yes, we typically require 35% advance payment to initiate the production process.

7. What After-Sales Support Do You Provide For Decanter Centrifuges?
We offer comprehensive after-sales support, including technical assistance, maintenance guidance, and spare parts availability.

8. Are Spare Parts Included In The Decanter Centrifuge Package?
Basic spare parts are included, and we also offer optional spare parts packages for extended support.

9. Can Decanter Centrifuges Be Customized For Specific Applications?
Yes, we can customize Decanter centrifuges based on your application and separation requirements.
