China Tool Manufacturer Wholesale CE Certification Manual Repair Hydraulic Industrial Tool Jack

Product Description

Product Description

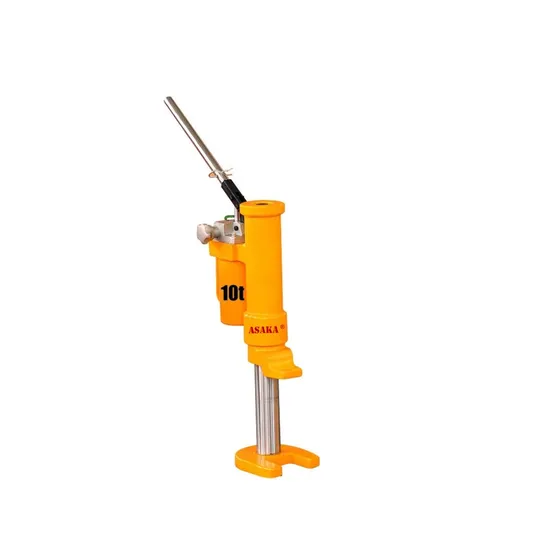

What is an industrial toe jack?
An industrial hydraulic toe jack is a lifting device that operates using hydraulic pressure. It features a pair of lifting toes, allowing it to grip and lift heavy objects from underneath. These jacks are commonly used in automobile industries to lift vehicles.

The industrial toe jack is a lifting device operated by a foot pedal, which is specially used to lift heavy objects. Its "pedal" design allows the operator to control the lifting through foot movements. This design not only frees up both hands, but also provides convenience for more precise operation.


The structure of this jack includes a hydraulic system, a foot pedal and a jacking part. It is usually used in some narrow environments or environments that require precise height adjustment, such as the installation and movement of machinery and equipment, and the construction of steel structures. Because its design can easily control the lifting and lowering of heavy objects through the foot pedal, it is particularly suitable for carrying or supporting some vast equipment.
1. Super strong - rated lifting capacity up to 5 tons (11023 pounds). In addition, you can use the top of your toes to lift heavy objects that you can barely move with your own hands.

2. Heavy duty construction is made of machined stainless steel. Therefore, the entire body, including the cylinder housing, is durable and sturdy.

3. Flexible drum box - the housing can rotate 360°. By rotating the housing, you can install the machine jack more flexibly in different situations.

4. Easy to use straight valve and long handle make the operation of elevator and machine falling as easy as possible.

5. Widely used suits - suitable for different situations and industries, such as heavy machinery industry, automobile maintenance industry, or only for personal needs.
To avoid possible personal injury or damage to equipmast.

1. Do not exceed the maximum load capacity of the jack.
2. An unstable load may cause the jack or load to slip.
3. Do not add additional load to a lifted load.
4. Do not use jack(s) if damaged, altered or in poor condition.
5. Do not use in unstable or hazardous position.
6. Do not lift people or loads with people on them.
7. Unit must be used on flat surfaces able on carry the load.
8. Do not lift at the end of the toe. Fully engage the load with the toe.
9. The load must be stable during lifting.

Model	Capacity (T)	Min. H (MM)	Lifting. Stroke (MM)	N.W (KG)	Measurement (CM)
ZXAY1305	5	25	140	25	365*200*430
ZXAY1310	10	30	165	35	380*225*485
ZXAY1350	25	58	170	102	540*320*615

Certificate and Inspection
ASAKA related certificate of industrial toe jack
An industrial toe jack sellers must conduct safety tests and obtain relevant safety certificates to ensure the safe use of industrial toe jack. ASAKA industrial toe jack in terms of product quality, we will strictly check each product to ensure that it absolutely meets safety standards.
Case Show
Common uses of industrial toe jack include:
Lift trucks, lawnmowers, farm vehicles and more with this workhorse hydraulic jack! Anyone performing agricultural, automotive, industrial or construction work can lighten their workload with this outstanding hydraulic jack.

1. The jack can be used in two operations: air or hydraulic.
2. Heat treated extension screw allows low pickup height adjustment and maximum lift height.
3. High quality air pump for longer lift.
4. The hard, machined and poshed ram and plunger allows for smooth operation.
5. Aside base provides stability and strength.

We adopt high-quality raw materials and fine technology. Treat each product seriously and responsibly and carefully ensure the quality of each product.
ZHI XING MACHINERY (HANGZHOU) CO., LTD.
Which is a professional enterprise integrating R&D, design, manufacturing and export. It produces and exports various small lifting tools such as jacks, lifting slings, manual and electric hoists. The company is located in the beautiful Hangzhou, China, close to the ports of NINGBO and SHANGHAI, with convenient transportation, our products with stable quality, complete certificates and qualifications, our company with more than 20 years of industry experience and rich export experience in more than 50 countries around the world. Customers and friends from all over the world are welcome to consult and cooperate.
Why choose ASAKA?
1.Annual production of jacks over one million, exported to more than 50 countries.

2.The factory area is 18,000 square meters.

3.The factory has passed ISO 9001 and BSCI.

4.The product complies with GS/ ANSI/ ASME standards.

5.We have own R&D team.

6.Complete quality inspection system.
Customer's Feedback
FAQ
Q1:Are your factory or trade company?
A1: We are factory with over 20 years of experience. We support visit factory on line.

Q2: What is the min order quantity?
A2: We don't require MOQ. Whether you are a home customer, a project customer, or a distributor, whether your order is large or small, we will do our best to serve you.

Q3: How do you guarantee quality?
A3: We will do loading test for each jack before it shipped out.

Q4: What is the difference of between your product and other factory?
A4: Our material is ductile iron, other manufacturers are steel body, The steel body has the risk of brittle fracture.

Q5: Do you have them in stock?
A5: Yes, all capacity in stock.

Q6: What about the delivery time?
A6: For samples, it will be shipped within a week, and for large orders, it will be shipped within 15-25 days.

Q7: Can you put my logo on product?
A7: We accept OEM.

Q8: Can I have sample to check quality?
A8: Of course, we are willing to send the sample to you.

Q9: Do you have distributor/customer in our country?
A9: We exported our product to all over the world, so there are distributors/customers in most of country.

Q10: Do you have any certificate?
A10: Yes, we have CE certificate. we can send to you to check if you need.

Contact us for more product information!
