Digital Coating Thickness Gauge Tester F and Nfe Probe

Product Description

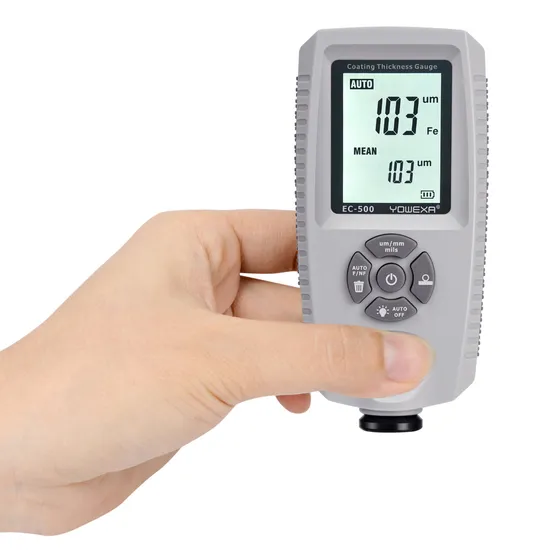

Digital Coating Thickness Gauge Tester F and NFe Probe

Product Overview

EC-500A/EC-500
These gauges can be used for non-destructive coating thickness measurement of non-magnetic coatings, e.g. paint, enamel, chrome on steel, and insulating coatings, e.g. paint and anodizing coatings on non-ferrous metals.

Function & Benefits

· High accuracy and stability
· LCD shows number, mean, maximum, minimum
· Easy to do zero calibration
· Power off automatically
· Low battery indication
· Detect the substrates type automatically

Wide Range Of Application

· Metalwork · Automobile Works · Used Car Market
· Foil Manufacturer · Industrial Lacquer · Paper Mill

Specification

Model	EC-500	EC-500F	EC-500N
Probe	F-Probe & N-Probe	F-Probe	N-Probe
Measuring Principle	Magnetic induction & Eddy Currents	Magnetic induction	Eddy Currents
Measuring Range	0 to 1500um
Accuracy	± (2%+1um)
Resolution	0~99.9(0.1um) 100um~999um(1um) 1000um~1500um(0.01mm) 0mils~3.933mils (0.004mils), 3.934mils~39.39mils (0.01mils), 39.4mil~51.2mil (0.1mil)
Calibration	One point to four point calibration, zero point calibration
Data Group	One direct group(readings not be stored to memory) Four general groups (readings will be stored automatically) NOTE: each group have individual statistics, alarm limit settings and calibration
Statistics	No. of readings, mean, minimum, maximum and standard deviation
Units	um, mm, mil
Alarm	User can set the high/low alarm limit; Alarm icon displayed on LCD when over the limit
Minimum Curvature Radius Convex	1.5mm
Minimum Curvature Radius Concave	25mm
Minimum Measuring Area	Diameter 6mm
Minimum Thickness Of Substrate	F-probe: 0.5mm(0.02");N-probe: 0.3mm(0.012")	0.5mm(0.02")	0.3mm(0.012")
Maximum Measuring Rate	Two readings per second
Computer Interface	Download data via USB
Power Supply	Two 1.5V AAA battery
Operation Environment	Temperature: 0 to 40°C(32 to 104°F); Humidity: 20% to90%RH
Storage Environment	Temperature: -20 to 70°C(-4 to 158°F)
Standard Certification	ROHS ;WEEE;CE
Dimensions	110mm*53mm*24mm(4.33"*2.09"*0.94")
Case Material And Weight	ABS; 92g(3.24 oz)

More Pictures

Company Profile

Certifications

Ask And Question

1. Is the measuring error large?
• Enter the menu interface, clear the calibration data; shut down to restore the factory configuration steps; do zero calibration after booting, (Note: you need to do zero calibration on the customer's own substrate)
2. Does the measurement screen display overflow?
• The coating thickness exceeds the measurement range.
• There is an error and zero calibration is required on the substrate.
• Probe fault
3. Measurement no response?
• Check if the battery has power.
• The probe has a fault.
• Whether the measured material meets the measurement principle.
4. Does the measurement show a negative number?
• It is judged according to the customer's materials whether the machine accuracy is applicable.
• The calibration did not do well and needs to be recalibrated.
5. During the measurement process, is it sometimes display F, sometimes display N?
• The automatic mode undistinguishable the type of material and it requires manual switching of the measurement principle.
6. How to do calibration?
• Please refer to the zero calibration, point calibration step.
7. Long press "ZERO" does not respond?
• You need to restore the factory settings and then operate.
8. It can measurement but there is no reading, why?
• Confirm whether the mode is in continuous measurement mode
• Check if the beep is broken
