Gas Station Stainless Steel Gauge Ex IP68 Fuel Level Sensor

Product Description

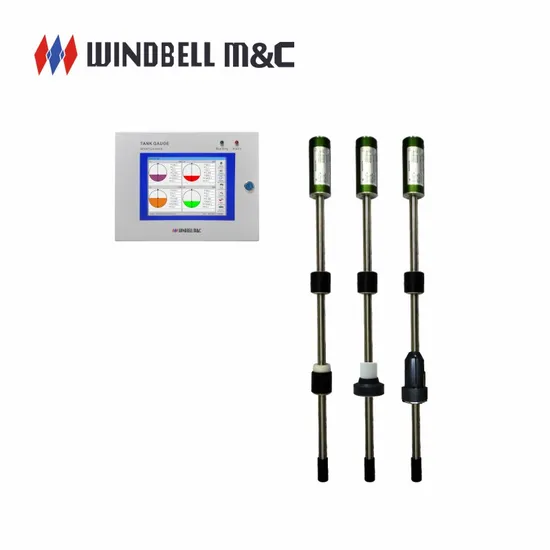

Product Description The WINDBELL M&C Gas Station Fuel Level Gauge mainly includes of SP series magnetostrictive probe, SS series console and APP. Help gas station managers to know the fuel level, water level and temperature in the underground fuel storage tank of the fuel station anytime, anywhere.
It has the characteristics of high measurement accuracy, strong anti-interference ability, and strong environmental adaptability, and has been widely used in gas stations and skid-mounted site.
SP300 Magnetostrictive probe is mainly composed of probe head, temperature sensors, protection steel pipe, magnetostrictive waveguide wire and floaters with magnet inside. Insert probe into underground tank, floaters float on the liquid surface, and slides up and down on rod according to the changes of liquid level. Processing measured data of product level, water level, density values (option), and average temperature of five-points, then transmit these data to smart console by digital communication port.
The smart console is the display terminal of the automatic tank gauge system, It consists of TFT colorful touch screen, core processing CPU, safety barriers and power module. Display and operating screen are 8'' size, 800*600 resolutions.
The smart console communicates with the probe rod through RS485, which can simultaneously monitor the product level, water level, temperature, product volume, water volume, empty volume, all kinds of alarms, inventory and delivery information in 1~12 fuel tanks.
Product Advantage International graphic touch screen and user-friendly icons, easy to use. Standard measurement unit, mm or inch, liter or gallon, meet different requirements from different countries. Display product volume and water volume, empty volume, product level and water level, and product temperature for individual tanks. Reports include current inventory, delivery history, alarm, shift, leak, system log, SMS. Operating language optional, support English, Spanish, Portuguese, French, Russian. And can be customized. Support import & export data, tank volume table import, very convenient for console configuration. Monitor up to 12 probes (tanks). Standard configuration is 6 probes. Monitor up to 40 leak sensors. Printing reports by optional external printer or optional built-in printer without any software. Automatic alarm function can show any abnormal status of tanks. Administrator password, different authorization, safe management. Compatible with PC remote software on site's computer. Support standard static or dynamic leak detection on 0.38 L/H or 0.76 L/H. Optional density probe can monitor product quality. Fuel density can be shown in real time on the console. Open communication protocol, can connect to the central control system of mainstream fuel dispensers, totally satisfy management demand of oil retail companies. Update program by USB port, one-touch operation, easy and convenient. iTank APP, support Android and IOS system, monitor tank information remotely in real time. ATEX, EAC, CQST, SIL approved. Length customized production. Applied in Gasoline, Kerosene, Diesel, Ethanol gasoline, Methanol gasoline, Approved light oil. Product Parameters

Model	WB-SS160PLUS Smart Console
Power	AC90 ~ 276VAC, 47-440HZ
Working temperature	-20ºC to 60ºC (-4ºF to 140ºF)
Display	8-inch color touch screen
Ex-proof grade	[EX ia Ga] IIA
Safety barrier	WB-GSB03, GSB05
Relay output	2 groups
External extension anti-overfill valve console	WB-DFV100
External extension submersible pump console	EM02
Output voltage	DC 12V
Monitor probes	6, Up to 12
Leak sensor	Optional
SMS module	Optional
GPRS module	Optional
Built-in printer	Optional
WIFI function	No
External sound-light alarm	Optional
External printer	Support
Running/Alarm indicator	Yes
Inventory and delivery management	Yes
Density and mass measurement	Yes
RS485 port	1
RS232 port	2
USB port	1
Ethernet port	1
Buzzer alarm	Yes
Tank table	Yes, simulate/input/import/export
Reports	Inventory, delivery, shift, alarm, leak detection test, system log, SMS for optional
PC remote software	PCR200
Anti-theft function	Yes
Dimension (L*W*H)	30*23*14.5cm
Model	WB-SP300 Series Magnetostrictive Probe
Precision	±0.5mm
Repeatability	±0.1mm
Resolution of fuel level	0.01mm
Resolution of water level	0.01mm
Points of TEMP. measured	5
Resolution of temperature	0.0625ºC
Accuracy of density measurement	+/-1kg/m³
Density measure range	700-780kg/m³, 810-890kg/m³
Communication mode	RS485
Maximum communication distance	1200m
Communication cable	4-core shielded cable
Rated working pressure of probe	1.6MPa
Material	316L stainless steel
Protection grade	IP68
Operating temperature range	-40ºC~60ºC (-40ºF to 140ºF)
Mark of explosion proof	Ex ia IIA T4 Ga, Ex II 1G Ex ia IIA T4 Ga
Associated apparatus	WB-GSB03, GSB06, GSB08 safety barrier
Definition of power cable	BLUE: POWER+, BROWN: RS485A, WHITE: RS485B, BLACK: POWER-
Applicable medium	Gasoline, Kerosene, Diesel, Ethanol gasoline, Methanol gasoline, Approved light oil
Installation method	Flange type, Threaded type
Reliability	Anti electromagnetic interference, anti surge
Dimension (L*W*H)	185*12*12cm (Can be customized)
