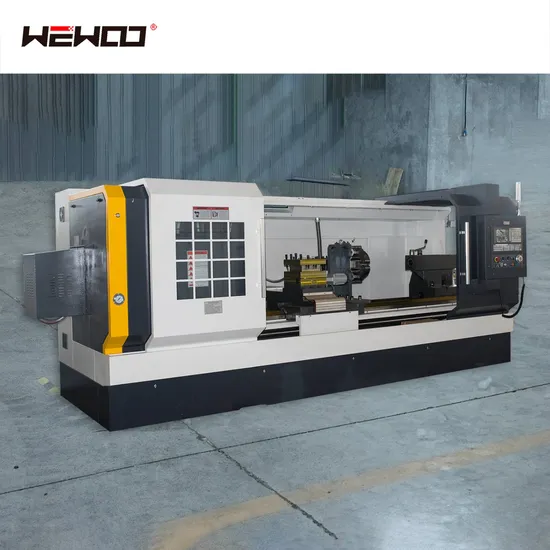

Ck61125 Ck6140 Ck6150 Ck6180 1/1.5/2/3m Hydraulic 3 Jaws Chuck and Tailstock Horizontal Flat Turning Lathe with Siemens/GSK/Fanuc System Max Cutting Length500mm

Product Description

Ck61125 Ck6140 Ck6150 Ck6180 1/1.5/2/3m Hydraulic 3 Jaws Chuck and Tailstock Horizontal Flat Turning Lathe With Siemens/GSK/Fanuc System Max Cutting Length:500mm
Product Description

Specifications

SPECIFICATIONS	Units	CK6163	CK6163	CK6180		CK6180
		Manual	HYD.	Manual		HYD.
Swing over bed	mm	630		800
Swing over cross slide	mm	350		520
Distance between centers	mm	1000/1500/2000/3000/4000/5000/6000		1000/1500/2000/3000/4000/5000/6000
Guideway width	mm	550		550
Max. load capacity	T	3		3
Spindle bore	mm	104		104
Spindle bore taper	-	Metric φ120/MT5		Metric φ120/MT5
Spindle nose type	-	C11		C11
Spindle speed steps	-	VF. 3 steps	HYD. 4 steps	VF. 3 steps	HYD. 4 steps
Spindle speed range	rpm	10-1000	17-1000	10-1000	17-1000
Chuck	mm	φ315 3-jaw manual		φ315 3-jaw manual
Turret/tool post	-	Electric 4 position		Electric 4 position
Tool size	mm	32 x 32		32×32
X axis travel	mm	320		420
Z axis travel	mm	850/1350/1850/2850/3850/4850/5850		850/1350/1850/2850/3850/4850/5850
X axis rapid traverse	mm/min	4000		4000
Z axis rapid traverse	mm/min	6000		6000
Tailstock quill diameter	mm	φ100		φ100
Tailstock quill taper	-	MT5		MT5
Tailstock quill travel	mm	250		250
Main spindle motor	kw	11		11
Coolant pump motor	kw	0.125		0.125
Weight for 1000	kg	3700		3900
Weight for 1500	kg	4100		4300
Weight for 2000	kg	4500		4700
Weight for 3000	kg	5300		5500
Weight for 4000	kg	6100		6300
Weight for 5000	kg	6900		7100
Weight for 6000	kg	7700		7900
Dimension for 1000	mm	3300x1750x1850		3300x1850 x1900
Dimension for 1500	mm	3800x1750x1850		3800x1850 x1900
Dimension for 2000	mm	4300x1750x1850		4300x1850 x1900
Dimension for 3000	mm	5300x1750x1850		5300x1850 x1900
Dimension for 4000	mm	6300x1750x1850		6300x1850 x1900
Dimension for 5000	mm	7300x1750x1850		7300x1850 x1900
Dimension for 6000	mm	8300x1750x1850		8300x1850 x1900

Detailed Photos

After Sales Service
We offer a comprehensive range of services to support our customers with their technical needs. Our online technical support service allows for efficient troubleshooting and problem-solving, ensuring minimal downtime for your operations. Additionally, we provide detailed machine operation videos to assist you in maximizing the potential of our Jiangsu Wewoo Advanced Vertical Machine Center Vmc1160 with 4 Axis/5 Axis Milling Machine.
For a more hands-on approach, we offer on-site training and commissioning videos. Our experienced technicians will guide you through the setup and operation of the machine, ensuring that you are fully equipped to utilize its capabilities effectively.
In the event of any maintenance or repair requirements, we provide spare parts replacement and repair services. Our team of experts will promptly address any issues, ensuring that your machine is up and running smoothly in no time.
We take pride in offering reasonable offers without compromising on quality. Our Jiangsu Wewoo Advanced Vertical Machine Center Vmc1160 with 4 Axis/5 Axis Milling Machine is designed to deliver exceptional performance and precision, making it an ideal choice for your machining needs.
For more information on our Machine Center/CNC Machining Center/Vertical Machine Center, please refer to our product catalog or contact our customer support team. Company Profile
FAQ

1:How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?

A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?

A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .

6: What's the MOQ?

A: 1 set .(Only some low cost machines will be more than 1 set )
