DS-250X Perfume card packaging machine pillow packing machine with automatic

Product Description

Product Description

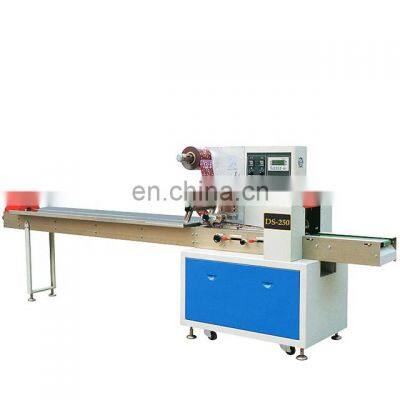

DS-250X Perfume card packaging machine pillow packing machine
Product Description
Machine and structure

ITEM	DS-250X	DS-350X	DS-450X	DS-600X
Film Width	Max.250mm	Max.350mm	Max.450mm	Max.600mm
Bag Length
Bag Width	30~110mm	50-160mm	60-210mm	60-280mm
Product Height	Max.40mm	Max.70mm	Max.45mm	Max.70mm
Film Roll Diameter	Max.320mm
Packing Speed	40~230 bags/min	40~230 bags/min	30-150 bags/min	30-150 bags/min
Power	220V, 50/60HZ, 2.4KVA
Machine Size	L)3920 * W)670 * H)1320mm	L)4020 * W)720 * H)1450mm	L)3990 * W)900 * H)1468mm	L)3990 * W)1000 * H)1468mm
Machine Weight	800kg	900kg	900kg	1050kg
Optional Device	Date Coder / Air-filling Device / Punching Device
Machine Packing	Wooden Box

Main Features1.Efficient: Bag-making, filling, sealing, cutting, heating, date / lot number achieved in one time;
2.Intelligent: Packing speed and bag length can be set through the screen without part changes;
3.Profession: Independent temperature controller with heat balance enables different packing materials; Dual inverters controller, upgradable PLC system, self-failure diagnosis, double encoder.
4.Characteristic: Automatic stop function, with safe operation and saving the film;
5.Convenient: Low loss, labor saving, easy for operation and maintenance.
6.Adapability: one set of machine can be applicated to different kind of product via optional devices, such as air-filling device, feeding line, etc.
Detailed Images
Easy Control Touch Screen

Standard English and Chinese. Any language can be customized.
Imported PLC microcomputer with interface and frequency control enables bag parameter setting more convenient and easier.
SUS304# Conveyor
The whole conveyor is made of 304# stainless steel, qualified for food packaging.
Film Roller & High Sensitivity
The film can be replaced easily on the film roller.
High sensitivity eye spot detector enables the film positioning more accurate and avoid wasting film or destroying product.
Bag Former
#304 stainless steel bag former is for shaping the film into a bag.
Different bag width needs different bag former.
Durable Sealing Cutting Blades
High speed of fine and clean cutting and sealing bags.
Positioned stop function avoides sticking blades and wasting materials.
Send inquiry to us
Related Products
Bread Powder Packing Machine
93.2% Response Rate
Palm Oil Packing Machine
96.8% Response Rate
Carrot Vegetable Packing Machine
92.5% Response Rate
Packing & Delivery
Payment
1.T/T and Western Union are accepted
2.30% deposit before production and 70% balance before shipment
3.All banking charges outside China are on buyers
Shipping
1.Upon receipt of payment , delivery date will be in 15-30 working days,
2.By Air, by Sea or by Express (DHL etc)
3.Shipment cost will depend on the destination, shipment way and the weight of the goods
Certifications
Our Service
Sales Team
After-sales team
Our Company
Foshan Dession Packaging Machinery Co.,Ltd is located in nanhai district, foshan,It is a collection of research, production, sales and after-sales service as one of the production-oriented enterprises.Machines are widely used in food, articles for daily use, hardware industrial products, medical supplies, hotel one-time items, etc. Along with the continuous development of science and technology, the level of automatic packing machinel is higher, scope will be wider.
large vertical workshop
pillow machine workshop
small vertical workshop
Customer Photos
FAQQ1:Do you have manual or operation video for us to know more about the machine?
Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q2:How can I trust you for the first time business ?
Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q3:Is engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q4:How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
Q5:Will you provides the door to door service?
Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
DS-250X Perfume card packaging machine pillow packing machine
