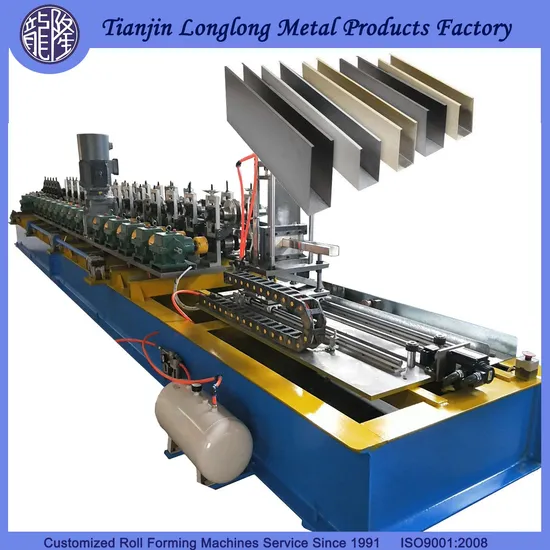

Aluminium Ceiling Rolling Mill Steel Suspend Baffles Roll Forming Machine for Ceiling Decoration

Aluminium Ceiling Rolling Mill Steel Suspend Baffles Roll Forming Machine for Ceiling Decoration

US$35,000.00-60,000.00 1 set (MOQ)

Basic Info.

Model NO.
LL-55-16
Rolling Shape
Plank
Product
Profile
Roller Position
Horizontal
Roller Number
Customized
Layout
Continuous
Type
Cold Rolling Mill
Thickness
0.4-0.8 mm
Cutting
Servo Flying Cutting
Forming Stations
16
Shaft Diameter and Material
55mm and 45# Steel
Production Speed
20~45 M/Min
Transport Package
Main Machine in Bulk and Spare Parts by Wooden Box
Specification
C/U Baffles
Trademark
LONGLONG
Origin
Tianjin China
HS Code
84552210
Production Capacity
30sets/Month

Packaging & Delivery

Package Size
580.00cm * 150.00cm * 160.00cm
Package Gross Weight
5000.000kg

Product Description

Aluminium Ceiling Rolling Mill Steel Suspend Baffles Roll Forming Machine for Ceiling Decoration
We can provide customized roll forming machines service with clients,please give us the shape drawings (sizes) of metal profiles,we will send a best offer.
Description
Name Ceiling Size Adjustable U Baffles Roll Forming Machine for Auto Cutting and Punching
Item Aluminum Size Adjustable C/U Baffles Roll Forming Machine
Ceiling Aluminum U Baffle Roll Fomer
30~600mm Adjustable C Linear Metal Roll Forming Machine
Model LL-LZ-55-16
MACHINE LIST--WHOLE LINE
No. Item Unit Qty
1 Decoiler Set 1
2 Main forming machine Set 1
3 PLC Set 1
4 Hydraulic pressure pressure station Set 1
5 Collector(Configurable) Set 1
Main technical parameter
No. Item Parameters
1 Material width for production 400mm
2 Raw material Hot-dip galvanization steel strip/ Aluminum strips
3 Raw material thickness 0.3-1 mm
4 I.D. 508-600mm
5 O.D. 1200mm
6 Electromagnetic speed motor 7.5kw
7 Working voltage 380v 50hz
8 Control voltage 24v
9 Forming steps About 16 steps
10 Machine structure Welded steel structure
11 Transmission mode Gear wheel transmission
12 Roller shaft 45#steel, hardness of themodulation is HB250-280
13 Outer diameter 55 mm
14 Roller mould Gcr15,salt bathquenching,hardness is HRC58-62
15 Production speed 0-45M/Min
16 Tolerance 0.50mm
17 Feed in material way From left to right
19 Cutting form 45degree skew
20 Cutting frame High structured frame welding
21 Cutting mould Steel CR12, salt quenching hardness is HRC 60-62
22 Cutting length tolerance 1.5mm
23 Weight of production line 6 tons
24 Main machine (L*W*H) 5800mm*1650mm*1250mm
25 Length of production line(L*W*H) 14500mm*1650mm*1250mm

Application:

Shipping and Packing Photos:
4 kinds of Double Automatic-adjustable roll forming machines:
No.1 :Ceiling U Baffle Roll Forming Machine
Raw material: Aluminum/ galvanized sheets
Thikcness: 0.3~0.6mm
Web width: 200 ~550mm Automatic-adjustbale
Flange height: can be auto-adjustbale as your need
No.2 : Open Metal Ceiling U Baffle Roll Forming Machine
Raw material: Aluminum/ galvanized sheets
Thikcness: 0.3~0.6mm
Web width: 30 ~100mm Automatic-adjustbale
Flange height: 30~150mm Automatic-adjustbale
No.3 :Light steel stud and track roll forming machines for ceiling and drywall
Raw material: galvanized sheets
Thickness: 0.4~0.8mm
Web Width: 50~100mm / 100~200mm Automatic Adjustable
Flange Height: 29~65mm Automatic Adjustable
No.4 : Heavy steel C/U steel purlin roll forming machines
Raw material: galvanized sheets/Alu-zinc steel sheets
Thickness: 1.8~3.0mm
Web Width: 50~160mm / 130~250mm Automatic Adjustable
Flange Height: 30~65mm Automatic Adjustable
Patent Certificate
Main Types of Exported Machine
Advantage
1.We are manufacturer and have export entitlement.
2.We have more than 30 years' experience, our products have been exported to more than 80 countries all over the world.
3.We supply manufacturing, design, installation, after-sales and other services.
FAQs
1.Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.
We need your machines running in order to keep your business running.
2.How to visit your company?
a. Fly to Beijing airport, we can pick up you.
b. Fly to Tianjin Airport, we can pick up you.
3.How to get a quotation?
a. Give me the profile drawing and thickness, this is the important. If no, I will suggest you some.
b. Other specific requirements are welcome, such as the speed, power and voltage you want.
4.You are trade company or factory?
We are factory. Welcome to our workshop for visiting.
5.Can you be responsible for transport?
Yes, please tell me the destination port or address. We have rich experience in transport.
6.How long the machine could be made?
Normally speaking, common roll forming machine could be made within 45 working days.
If you need machines in a hurry, we can make it for you less than a month.
