Gold, Silver, Lead, Zinc, Iron, Molybdenum, Copper Mining Machinery Rj Single Impeller Agitation Tank (RJ40)

Product Description

Overview of Agitation Tanks
Agitation tanks, also known as mixing tanks or agitators, are vessels used for mixing, dissolving, homogenizing, or carrying out chemical reactions in industrial production. They are widely used in various fields such as chemical, pharmaceutical, food processing, mineral processing, paint manufacturing, wastewater treatment, and more.
Working Principle:The agitation tank works by using an internal mixer (usually one or more impellers or blades) to stir the materials inside the tank. The mixer is driven by a motor and can generate different flow patterns, including axial flow, radial flow, or a combination of both, to achieve the desired mixing effect. The stirring speed and the type of mixer can be adjusted according to the properties of the materials and the purpose of processing.
Types:There are several types of agitation tanks, including:
Vertical Stirring Tanks: The mixer is installed vertically in the tank, suitable for most conventional mixing and blending operations.Horizontal Stirring Tanks: The mixer is installed horizontally, suitable for mixing operations that require a high torque.High Shear Stirring Tanks: Equipped with high shear mixers, used for processes that require fine mixing or emulsification.Magnetic Stirring Tanks: Use magnetic drive mixers, suitable for sterile or contact-free stirring environments.Application Fields:Agitation tanks have important applications in the following fields:
Chemical Industry: For mixing, reacting, and dissolving raw materials.Pharmaceutical Industry: For mixing and homogenizing pharmaceutical ingredients.Food Processing: For mixing food ingredients, such as dough and batter.Mineral Processing: For the preparation and mixing of pulp.Paint Manufacturing: For mixing pigments and solvents.Wastewater Treatment: For mixing and homogenizing in the wastewater treatment process.Advantages:Good Mixing Effect: Can achieve uniform mixing of materials.Flexible Operation: Can adjust the stirring speed and type of mixer according to different process requirements.Wide Range of Applications: Suitable for various materials and processes.Easy Maintenance: Simple structure, easy to clean and maintain.High Degree of Automation: Can be equipped with automatic control systems for automated operation.Precautions:Choose the appropriate stirring tank and mixer according to the properties of the materials and the purpose of stirring.Regularly inspect the operation of the mixer and motor to ensure normal functioning.Keep the stirring tank clean to prevent material residue and cross-contamination.Adjust the stirring speed and time according to process requirements to achieve the best mixing effect.As one of the key pieces of equipment in industrial production, the design and correct operation of the stirring tank directly affect product quality and production efficiency.Technical Data Sheet of RJ Single Impeller Agitation Tank

Standard Model	(mm) Diameter Of Tank	(mm) Height Of Tank	(m³) Fffective Volume	(mm) Impeller Diamete	(r/min) Impeller Speed	Motor		(kg) Weight
						Model	(kW) Power
RJ05	500	500	0.078	240	530	Y80M-4	0.75	160
RJ07	750	750	0.26	240	530	Y80M-4	0.75	228
RJ10	1000	1000	0.58	240	530	Y90S-4	1.1	350
RJ12	1200	1200	1.14	400	320	Y112M-6	2.2	765
RJ15	1500	1500	2.2	400	320	Y132S-6	3	1360
RJ20	2000	2000	5.5	550	230	Y132M-6	5.5	1800
RJ25	2500	2500	11	625	230	Y160M-6	7.5	2270
RJ30	3000	3000	19.1	800	200	Y225S-8	18.5	4296
RJ35	3500	3500	29.5	850	190	Y225M-8	22	5580
RJ40	4000	4000	46	1000	160	Y250M-8	30	8036

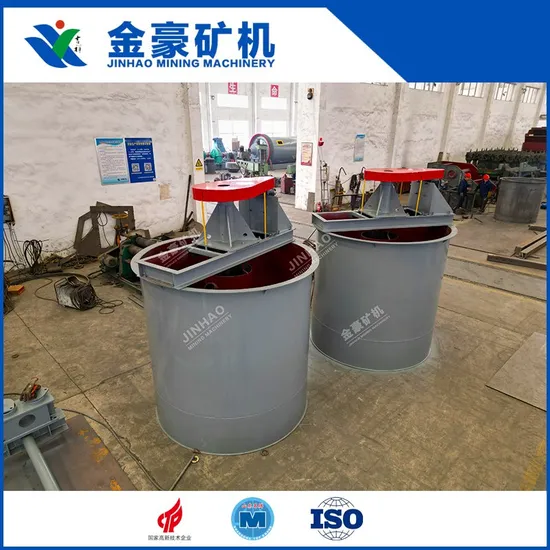

RJ single impeller agitation tank is the most popular model at present.The
impeller is located in the bottom of the cycle barrel in order to mix the ore
pulp with chemical.By experiment,our new design will replace I ll model
agitation tank to improve the mixing efficiency.
Remark
1.The type of products like rubber impeller and nylon impeller shall be carried out according to the user's demand.Please specify it when ordering.
2.The position of the motor,feed port and the outlet shall be installed according to customer's requirements.Generally,relevant parts are assembled at the time of on-site installation.
3.There are two kinds of RJ agitation tanks:cone bottom and flat bottom.Please specify which type is demanded.
