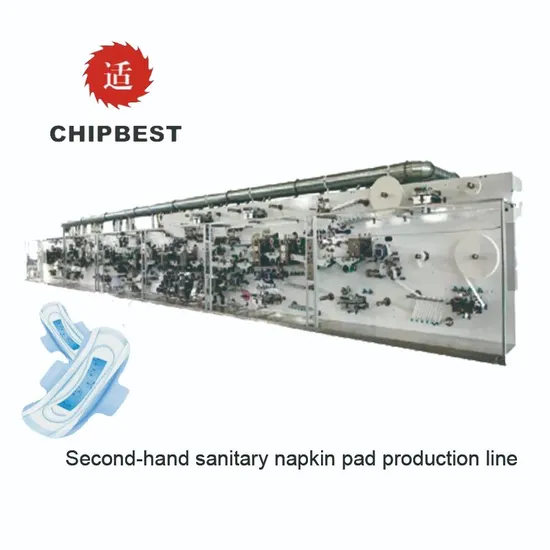

Sanitary Napkin Machine Full Automatic Woman Panty Liner Machine Sanitary Napkin Pad Machine

Product Description

Sanitary Napkin Machine Full Automatic Woman Panty Liner Machine Sanitary Napkin Pad Machine
Main Function Features:
1.The machine can produce regular type,economic type and high grade type Sanitary Pad.
2.The machine can do different size Sanitary Pad for women
3. The machine can do two type classic type(fluff pulp) and ultra thin type Sanitary Pad
4.Materials of stereo-protection are complex and molding on machine
5.The quantity of fluff pulp can be adjusted freely
6. Raw materials automatic unwinding system,automatic tension control system,automatic splicing units,automatic rejection units,automatic web guard system.
7.The machine is attached with fully automatic packing machine(stacker),make packing simpler and save labor force
8.Machine equipped with production door
9.Touchable Screen:Machine switch on/off,running speed,time,counting pieces,parameter setting,alarm,error display,error enquiry(functions setting appear on screen are different according to different machine type). Machinery Types

Types	Type one	Type two	Type three	Type four
	Full Servo Winged Woman	Semi Servo Winged Woman	Full Frequency	Economic Winged Woman
	Sanitary	Sanitary	Winged Woman
	Napkin machine	Napkin machine	Sanitary Napkin	Sanitary Napkin
			Machine	Machine
Capacity	650-700pcs/min	500-600pcs/min	300-450pcs/min	200-300pcs/min
Operation Worker	2	2	4	4
Size Range:	Length:220-330mm	Length:220-330mm	Length:220-290mm	Length:220-290mm
	Width:80-160mm	Width:80-160mm	Width:80-160mm	Width:80-160mm
Shape:	Wing/Non-wing	Wing/Non-wing	Wing/Non-wing	Wing/Non-wing
Installed Power	390KW (excluded glue machine,	3500KW (excluded glue machine,	350KW excluded glue machine	300KW (excluded glue machine,
	air compressor)	air compressor)	,air compressor)	air compressor)
Electric Supply	440V ±5%,50Hz ,	440V ±5%,50Hz ,	380V±5%, 50HZ,	380V± 5%, 50HZ,
	3phase 4 wire+ground wire	3phase 4 wire+ground wire	3 Phase 4 Wires + Ground Wire	3 Phase 4 Wires + Ground Wire
Air Supply	0.6-0.8Mpa	0.6-0.8Mpa	0.6-0.8Mpa	0.6-0.8Mpa
Machine Size	21×6×2.3m	21×6×2.3m	20×6×2m	20×6×2m
Operating Size	26×10×5m	26×10×5m	25×10×4m	25×10×4m
Total weight	70T	70T	40T	40T

Finished products

Packing and shipping
About Us
Chipbest is a one-stop automation solution provider of R&D, manufacturing, marketing and service.
It has three subsidiaries, namely Chipbest Technology (Dongguan) Co., Ltd., Chipbest Automation Technology Nanjing Co., Ltd., Chipbest Automation Technology (Shanghai) Co., Ltd.
Our main products include personal health protection equipment (face mask machine,
bed cover machine, shower cap machine, sleeve machine, etc.), nucleic acid (virus) extracting&filling machine, swab packaging machine, automated production equipment for antigen reagent detection kit, automatic assembly equipment for TV sets screen , condom production equipment, power battery manufacturing equipment, solar photovoltaic equipment (stringer, printing machine, sintering furnace, diffusion furnace, baking furnace), automatic detection equipment for wire solder of solid crystal in the semiconductor field (semiconductor AOI).
