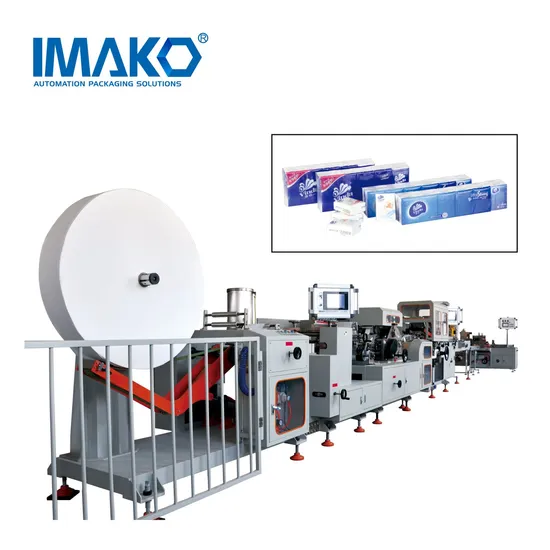

Automtic Folding and Counting Mini Type Handkerchief Facial Tissue Machine

Product Description

Technical Specification
1. Handkerchief Format
A. Single handkerchief unfold size: Square: 200mm± 2 mm 210mm± 2 mm
B. Single handkerchief Fold size: Mini: 72 mm± 0.5 mm× 53.5 mm± 0.5 mm (L*W)
Standard: 105mm± 0.5 mm× 53.5 mm± 0.5 mm (L*W)
C. Side embossing is symmetrical and tolerance is 5 mm
2. Machine Size: 1610*2000*2000. Mm (L*W*H)
3. Electric power: 30.5KW
4. Bundling Unite Specification
A. Packing speed: Design speed≤ 25/, Product speed: ≤ 20/;
B. Packing size: Length: 75mm-105mm;
Thickness: 24± 2mm; Width: 50mm± 2mm;
Bundling style: : 2X3; 2X4; 2X5; 2X6;
3X3; 3X4; 3X5; 3X6.
C. Power: Supply: 380V± 38V, 50Hz± 1Hz
D. Total power: 2.5Kw
E. Main machine power: 0.25Kw
F. Main air pressure: 0.6Mpa
G. Bundling unite size and weight: 2300X1250X1450mm (L*W*H), 1000kg
5. Material requirements
A. Parent paper roll: Diameter≤ φ 1600mm, width 420mm, core diameter φ 76mm
GS 13.5~15.5G/M2(triple), 16~18G/M2(double);
B. Film: PE with thickness 0.045 mm, width 115mm, diameter ≤ φ 460 mm, core diameter φ 76mm, dark color mark (except green), size 4× 12mm, equal distance (single film length)168± 2mm;
C. Label: Width: 25± 5mm, equal distance ≥ 2 mm, color should be clear different with color mark.
6. Other requirements
A. Main power supply: 380V± 38V, 50Hz± 1Hz; 24 VDC;
B. Compressed air: Pressure≥ 0.6 Mpa, flow rate≥ 48m3/h;
C. Nagtive pressure: Pressure≥ 0.06 Mpa, flow rate≥ 480m3/h(roots vacuum pum, no need water).

Items	Guarantee
Product guarantee speed	120 packs/min
Qualification rate	≥ 97 %
effective productivity	≥ 85 %
Handkerchief quality	1. Use surface is positive,few and short fold; 2. Cutting side is smooth, no black and burr; 3. Regular fold, derangement is≤2 mm,no inner fold and backslash; 4. Handkerchief format tolerance is ±3 mm; 5. Side embossing is symmetricaland clear, no delaminating.
Packing result	1. Handkerchief tissue inside is neat and the tightness is the same. The surface is smooth, square and symmetrical ; 2. The sealing is firm and no hole. Tip triple is symmetrical and good look. Open part is no broken hole or stick with tissue. Film cann't discolorate, no pollution tissue. 3. Virtul line is in the middle, tolerance is ±2 mm,easy to open. 4. Label position is in the middle of virtul line,left-to-right tolerance is ±2 mmand up -to-down tolerance is ± 1mm. Stick is firm, no inner fold and backslash.
Wastage of parent paper roll, label and film	≤3%
Control system	Completely self-contained, run stably

Company Profile IMAKO is a company entirely focused on the manufacture of automated packaging equipment for tissue industry. We always aim at developing user-oriented innovative solutions for worldwide tissue paper convertors to solve their tissue paper packaging and toilet paper cartoning needs. To become a global packaging machine manufacturer, we also provide packaging solutions for personal care products apart from tissue converting industry. All of our tissue wrapping machines and hygiene product packaging machines like baby diaper packaging machine, wet wipes packaging machine and sanitary pad packaging machine are built to deliver easy operation, high productivity, quick size changeover and simple maintenance. If you are still struggling to choose the right packaging machine, we'll be happy to help you with your tissue packaging needs.
IMAKO has been dedicated to household paper packaging machinery industry for years, and has accumulated much experience. Value-added service to our client is our sole goal, mutual benefit is our base for development, solution is our answer to project.

Paymentterm:T/T,L/C,30% down payment when placing your order, 70% balance payment before shipment.

Delivery: It depends on the machine models and your requirement on packing sizes.Usually within 30 days of Off Season , within 50 days of peak season upon receiving deposit

After service: Seller would repair or replace the damaged parts free of charge caused by the machine poor design or manufacturing defects within this period.Guarantee period is not applicable for the consumables and once damaged, buyer can purchase the consumables from the seller at reasonable prices.
We would systematically train your engineers about the operation, maintenance and supervision and share the knowledge and experience regarding the machine operation and maintenance by fax or at each visit.
If buyer need our technician to fix the machine abroad,buyer shall be responsible for all costs of service like airtickets,accommodation and local transportation.
Besides buyer need paid for the technician USD50/person/day as salary when our Technician going to your country. FAQ

Q 1. Where is your factory located?

A: Our factory is located in Shantou city,Guangdong province,China.Which is a beautiful coastal city in the South-eastern of China.The airport name in our city is Jieyang Airport,airport code SWA and high-speed railway station is Chaoshan Station.It's very convenient to come from Guangzhou city or Shenzhen city.

Q 2. How to Guarantee transaction security?

A: Before delivery, we will send the pictures and videos to you to check the quality. Or you could arrange checking on your own. Also license and certificate could be provided for checking.

Q 3: What technical support can I get during the transaction?

A: We offer online technical support at any time you want. Instructional videos, the way of daily commissioning and maintenance also wil be provided. If you need installation service, our technicians can go abroad but this is not free. During warranty you could replace the failed parts for free.

Q 4:How could i contact you if any problem there?

A: Send us email or leave us message, we will contact you as soon as possible.
