Renovl Work Pressure 40-250 Bar EPDM 1 Layer Wire Braided Steam Hose

Product Description

RENOVL Work Pressure 40-250 Bar EPDM 1 Layer Wire Braided Steam Hose
Product Description
EPDM 1 Layer Wire Braided Steam Hose
Tube: EPDM
Reinforcement: One high tensile steel wire braid
Cover: Heat and weather resistant EPDM
Applications: for conveying steam, hot water, hot air
Temperature range: -40°C to +180°C
Colour: black or redProduct Parameters

EPDM 1 LAYER WIRE BRAIDED STEAM HOSE
SIZEI.D			O.D	W.P		B.P		B.R	L	W.T
dash	inch	mm	mm	bar	psi	bar	psi	mm	m	kg/m
-3	3/16"	4.8	12.0	250	3600	1000	14400	90	50-100	0.19
-4	1/4"	6.3	13.2	225	3250	900	13000	100	50-100	0.22
-5	5/16"	7.9	15.2	215	3100	860	12400	115	50-100	0.26
-6	3/8"	9.7	17.4	180	2600	720	10400	125	50-100	0.34
-8	1/2"	12.7	20.5	160	2300	640	9200	180	50-100	0.41
-10	5/8"	16.0	23.7	130	1900	520	7600	205	50-100	0.51
-12	3/4"	19.1	27.7	105	1500	420	6000	240	50	0.60
-14	7/8"	22.2	30.5	100	1500	400	6000	280	50	0.75
-16	1"	25.4	33.7	88	1260	352	5040	300	50	0.85
-18	1.1/8"	28.6	40.3	75	1090	300	4360	400	60	1.10
-20	1.1/4"	31.8	42.5	63	910	252	3640	420	60	1.22
-24	1.1/2"	38.1	48.5	50	720	200	2880	500	60	1.41
-29	1.13/16"	46.0	57.2	45	675	180	2700	600	60	1.76
-32	2"	50.8	62.0	40	580	160	2320	630	60	1.88

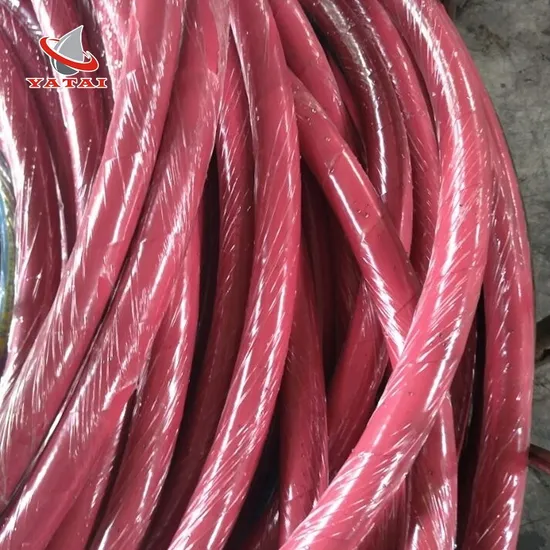

Detailed Photos
Company Profile
FAQ
Q1. How can we guarantee quality?
A1.Always a pre-production sample before mass production.
Always final Inspection before shipment.
Q2. What is your sample policy?
A2.We can supply the sample if we have ready parts in stock, but the customers must pay for the sample and courier costs.
Q3. Can you produce according to the samples?
A3: Yes, we can produce your samples or technical drawings. We can build the molds and fixtures.
Q4. Why should you buy from us not from other suppliers?
A4.For many years, we have been committed to the research and development of rubber and plastic products. Our R&D team has over 20 years of R&D experience. All of our products are produced directly from the factory. We accept OEM and ODM!
Q5.What are your main products?
A5.Our main products are all kinds of rubber hoses including Hydraulic hoses, air hoses, welding hoses, sandblast hoses, suction and discharge rubber hoses, and PVC hoses, including PVC Lay flat Hose,
Q6. Could we pay a visit to your factory?
A6.Yes, you are always welcome to visit our factory.
