Lk Varia 250 Ton Plastic Injection Molding Machine

Product Description

Brief Introduction
LK group specializes in the design manufacture and sales of die casting machines, high precision injection molding machines, CNC machine centers, and industrial integrated control systems. Our market share of die casting machines is over 60%, the injection molding machine ranks among the top 5 in China.We have 12 production bases worldwide, 10 in domestic China, 1 in Taiwan, and 1 acquired company in Italy. Our injection molding machine centers are Zhongshan in Guangdong and Ningbo in Zhejiang. There are over 60 sales and service centers in the world, and our high-quality after-sales service and 24-hour prompt response system provide customs all-around fully coverage customer service.
Ultra-large turntable with 2-3 position(option), suitable for different multi-material plastic part. LK injection molding machines can produce plastic parts combined with 1-3 colors/materials which are commonly found in automotive lighting, internal trim, electrical appliances, household appliances, and houseware. It integrates the servo energy-saving concept and control algorithm.
Varia series 130 ton - 2000 ton
Key features
1. 2/3 components high precision injection
2. Linear rails on injection unit, less resistance
3. Single injection cylinder
4. Special design in turning table rotating without contacting the platen
5. Duel ejector cylinder
6. Servo control system, highly responsive, close loop control
Use of application
Automotive, Home Appliance, Glasses Product, Household Product
Technical Parameter List

	ITEM	UNIT	VA250
			Injection Unit 1				Injection Unit 2
			A	B	C		A	B	C
Injection Unit	Shot Weight	g	175	229	289		116	158	206
	Screw Diameter	mm	35	40	45		30	35	40
	Injection Volume	cm3	192	251	318		127	173	226
	Injection Pressure	MPa	280	280	214		169	206	158
	Screw L/D Ratio	L/D	24	21	21		24	21	21
	Injection Rate	cm3/s	104	136	172		75	102	133
	Screw Speed	r/min	0~260				0~270
	Hopper Capacity	L	30				30
	Distance Between Barrel Centers	L	500(490)
Clamping Part	Locking Force	kN	2500
	Die Height (Min.-Max.)	mm	200-565
	Max.Daylight	mm	1025
	Space Between Tie Bars	mm	960×588
	Ejector Stroke	mm	100
	Ejector Force	kN	2×33
	Rotary Table Diameter	mm	1065
	Bearing Capacity of Rotary Table	kg	2000
Other	Motor Capacity	kW	16.4			11.6
	Max Working Pressure	MPa	17.5
	Oil Tank Capacity	L	385
	Heating Capacity	kW	12.5			12.5
	Machine Dimensions (L×W×H)	mm	6350×1980×2150

Products Display
Showroom Review

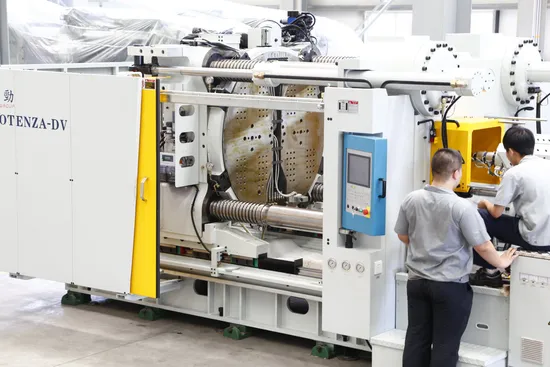

Factory Review
