Dzjx Electric Powder Chemical Seasoning Dual Cone Agitator Mixer Mixing Machine

Product Description

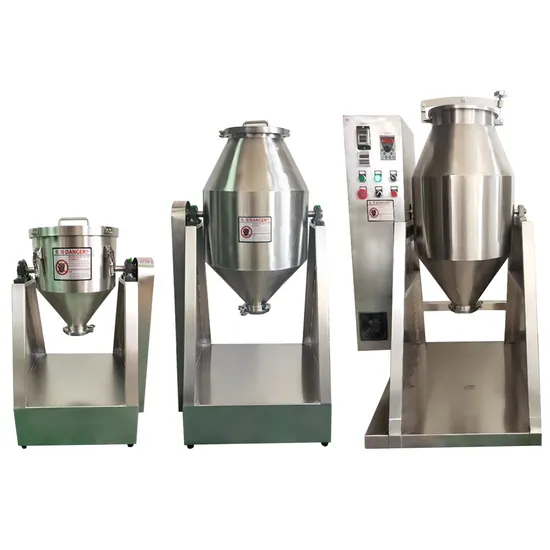

Product Description DZJX cone mixer machine is widely used in food, magnetic powder, ceramics, chemical, pharmaceutical, feed and other industries, also suitable for the Laboratory.* The mixing capacity of the device ranges from 3L to 6000L.* The mixing time and speed can be adjusted, and the timed shutdown can be set.* The direction of rotation can be adjusted, both forward rotation and reverse rotation* The mixing barrel of the machine has unique structure, uniform mixing, high efficiency and non accumulation and easy operation.
* The outer surface and material contact parts are made of high quality 304 stainless steel, with beautiful appearance, convenient maintenance and cleanness.
* The mixer inner walls are smooth without any dead corner. With mixing evenness of 99%.Detailed Photos Machine material:
*The appearance and material contact parts are made of high-quality 304 stainless steel,with beautiful appearance ,convenient maintenance and easy cleaning.
*It's widely used in various industries such as food, pharmaceuticals, and chemicals.
Mixing time, Mixing speed, and Rotation direction:
* The rotation direction of the mixer will be reversed after the forward rotation, greatly improving the uniformity of mixing and shortening the mixing time.
* The mixer has a timed shutdown system, and the speed can be adjusted between 0~36 r/min.After adding the materials to the mixer, the materials are evenly mixed together under impact.Internal structure of the mixer:
* All welding parts are welded using the most advanced laser welding machine, with beautiful welds, no material storage, and easy cleaning.
* The mixer comes with mixing blades, greatly improving the uniformity of mixing and shortening the mixing time. The mixing paddle can be removed or automatically rotated according to customer needs.Product Show
Application scopeThe machine is suitable for mixing dry, powdery, granular materials and irregular materials in chemical, pharmaceutical, food products.Product Parameters

Model	Volume(L)	Effective volume(L)	Max load(kg)	Power(w)	weight(kg)	Overall size(mm)	Speed(r/min)
DZ-1	3	1	1	20	9.5	350*250*480	0~36
DZ-2	6	2	2	40	13	430*300*520
DZ-3	9	3	3	40	17	440*300*580
DZ-5	15	5	5	60	19	480*380*680
DZ-10	32	10	10	120	36	600*420*860
DZ-15	46	15	15	120	46	600*600*1050
DZ-20	62	20	20	250	48	580*650*1100
DZ-50	155	50	50	550	88	860*1000*1450
More models support customization (capacity range: 3L-10000L)
