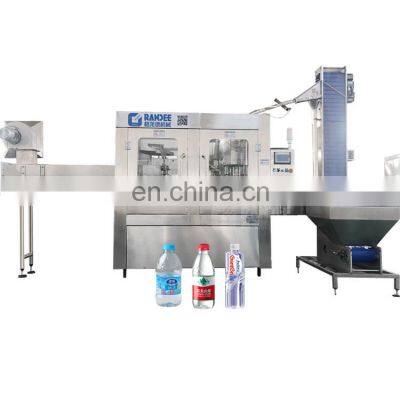

Best quality small scale drinking water filling production machine machinery

Product Description

Product Description
Best quality small scale drinking water filling production machine machineryProduct DescriptionMachine description:1.The mineral water filling machine adopts advanced technology from abroad, and combined with the characteristics of our country, self- developed. 2.It adopts a large number of new technology, new process and new structure. It has top quality. 3.The feature: the neck of the bottle was stuck between the bottle clipping board and upper formed plate, then the star wheel transmission let the … run, and bottles were transported. So that to achieve the three process(washing, filling, sealing).The advantages: low wear rate of bottle, easy changing of bottle model, precise and smooth driving, scientific process flow, etc. 4.Besides, all the parts of the equipment that contact with liquid are made of imported stainless steel or food engineering plastic with wear resistance and ozone proof. Its electric system mostly adopts imported part. With standards food sanitation, stable and reliable property, low failure rate, full automatic control and perfect after-sales service, this kind of machine is popular among the foreign and domestic customers. And it is an ideal equipment for different kinds of beverage manufacturing enterprise. Machine show:DetailsWashing Part:The bottle enters into the rinsing part of three-in-one machine through air conveyor. After the gripping, the bottle is turned upside down with 180 degree and cantred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position againFilling part:Long tube filling type with 2 times filling process to make sure perfect filling level Liquid tank, filling valves, controlling rings, upgrading cylinder. High speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic. Capping Part: Rotative capping turret, suitable to the application of screw plastic caps on PET bottles The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads. The heads are raised and lowered by the action of a follower that is riding on a shaped cam.Air conveyor: Air conveyor is fixed on the floor, with fan installed on the top. Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles. Bottles are held on the neck in the conveyor and transported into filling machine by blowing power. All are made of stainless steel SUS304/316 Rack made by high quality carbon steel welded. Conveyor system Energy saving. High efficient. Adapt to customer factory layout Special lubrication system, keep products clean, health, safety Electric eyes design keep whole line running safety and quickly Main technical parameter:Automatic water filling machine production line packaging specificationsMaterial: SS304/316Bottle materialShapeFilling volumeFilling level(mm)Neck typePET/Glass bottleSquare/round/flat bottle100-2250mlAccording request±1mmAs requiredAdjustable specificationsBottle size: bottle diameter≤110mm, bottle height≤340mmIf using square bottles, then bottle separating system will be addedFilling temperature2℃-40℃ level control: float ball and pneumatic butterfly valve.Bottle labeling typePacking system Min, Spec.Palletizing systemManual/ automaticHot melt roll-fedPVC shrink labelFull label/half labelFilm shrink packingRobert packingCarton packing2*3 2*4 3*43*5 4*4 4*5 4*6 6-30bags/minLow positionGantry palletizerRobot palletizerUser Ambient ConditionsTemperature: 2-40℃, Humidity: no dewBottle feed-inConveyor with screw for glass bottleAdopt air-conveyor for PET bottle Process flow chart: Related productRO System This RO system we can make to match up with your water filling machine from capacity from 500L/Hr to 50000L/hr.This system included sand filter, carbon filter, sodium exchanger, precision filter, Reverse Osmosis, UV, Ozone generator, Ozonized Tower, Pure water tank.This system is made of SUS304 or SUS316 material, thickness is 2.5mm-3mm we promised. Blowing Machine with different options 1. Semiautomatic Blowing Machine for 800BPH-2000bph from 0.2-2.5L bottle with 2 or 4 cavities.2.Full automatic blowing machine from 2 cavity, 4 cavity, 6 cavity, 8 cavity, 9 cavity,etc from 2500BPH to 12000BPH for 500ml bottle. Automatic PVC sleeve labeling machine Capacity: 100-350bottles/min can be chosenLabel material: PVC PET OPS, etcBottle material: PET PE PP GlassBottle Diameter: 28 ~ 120mmBottle Height: 15~320mmBottle shape: round, square, ellipse, rectangularLabel length: 30~250mm(max) Automatic PE film shrink packing machine Flow: Feeding→ pushing bottles→ film covering and sealing→ shrinking→ coolingSpeed: 8-12packages/minPower (rated/real): 26kw / 16kwMax. packing size: 420*300*350mm(LxWxH)Max. sealing size: 650mm Company Information Our teamFAQQ1: How to find suitable machine or complete beverage production line?A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn •Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements • Discussion: Specify the items and what are you exactly looking for. Q2: Are you a trading company or a manufactory?A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms . Q3: Do you have technical support after we purchased your machines?A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems. Q4: If you buy our machines, can you offer us wear-out spare pats?A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
