High Pressure Hydraulic Rubber Hose Wire Braided Spiral Flexible Rubber Oil Hose

High Pressure Hydraulic Rubber Hose Wire Braided Spiral Flexible Rubber Oil Hose

US$1.40
500-1,999 Meters
US$0.69
2,000+ Meters

Basic Info.

Model NO.
hydraulic hose
Color
Black
Surface
Smooth
Length
20, 40, 50, 100 Meter
Marking
Engraved
Structure
High Tensile Steel Wire Braided Reinforced
Cover
Smooth Finish Oil Resistant Synthetic Rubber
Tube
Oil Resistant Synthetic Rubber
Packaging
Fixed Length in Plastic Protector
Brand
Could Be Customized
Place of Origin
Qingdao, China
Transport Package
PVC Packing
Specification
3/16"-2"
Trademark
could be customized
Origin
Qingdao, China
HS Code
40092100
Production Capacity
60000 Meter Per Month

Product Description

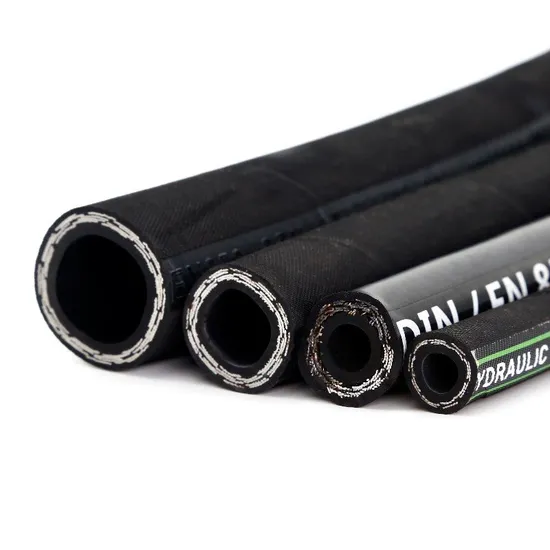

Product Description Tube: Oil resistant synthetic rubber
Cover: Abrasion and weather resistant synthetic rubber
Temperature range: -40 degree centigrade To +100 degree centigrade
This Steel Wire Hose is mainly intended for diverse applications in the fields of forestry, agriculture, construction and others. It is integrated with a bend radius capability which allows an intuitive mounting and routing. This also enables a longer hose life in various curving applications and some of the bent tube fitting needs.

It is enclosed with a black and oil resistant cover which is also integrated with a synthetic rubber. Its cover also comes with a color-optional line of marking. Its tube is black in color and is built with an oil-resistant tube material which enables high pressure and high temperature functionality.

DN Hose I.D Wire O.D Hose O.D Working Pressure Burst Pressure Minimum Bend Radius Weight Length
inch mm mm mm MPa psi MPa psi mm kg/m metres
5 3/16" 4.8 9.5 11.8 25 3630 100 14280 89 0.19 50/100
6 1/4" 6.4 11.1 13.4 22.5 3270 90 12840 102 0.21 50/100
8 5/16" 7.9 12.7 15 21.5 3120 85 12280 114 0.24 50/100
10 3/8" 9.5 15.1 17.4 18 2615 72 10280 127 0.33 50/100
13 1/2" 12.7 18.3 20.6 16 2320 64 9180 178 0.41 50/100
16 5/8" 15.9 21.4 23.7 13 1890 52 7420 203 0.45 50/100
19 3/4" 19 25.4 27.7 10.5 1530 42 6000 241 0.58 50/100
25 1" 25.4 33.3 35.6 8.8 1280 35 5020 305 0.88 50
32 1 1/4" 31.8 40.5 43.5 6.3 920 25 3600 419 1.23 20/40
38 1 1/2" 38.1 46.8 50.6 5 730 20 2860 508 1.51 20/40
51 2" 50.8 60.2 64 4 580 16 2280 635 1.97 20/40
*Brand printing as you order
*Printing color as you order
*Length as you order
*Wrapped surface
*Smooth surface
*Big size up to 4 inch
Packaging & Shipping
Company Profile RISING RUBBER, as a professional manufacturer and exporter since 1999, offers a broad range of hydraulic hose, industrial hose, PVC hose and relative products to suit different types of applications.
We have the whole production line and impulse test machine imported from Italy, which enables us to produce leading quality. Take hydraulic hose DIN EN 853 2SN as an example, the impulse test result can reach as many as 1 000 000 cycles, which is well above DIN EN 853 standard.
Today, we have a distinguished client list in the construction, mining & earthmoving industries. With strict quality control system and annual production capacity of 4 million meters, our products are also reaching foreign shores through markets in the Europe, Africa, South America, East Asia and other areas.
We believe our success is tied directly to the profitable growth and satisfaction of our customers. So if interested, do not hesitate to contact us.


Application
