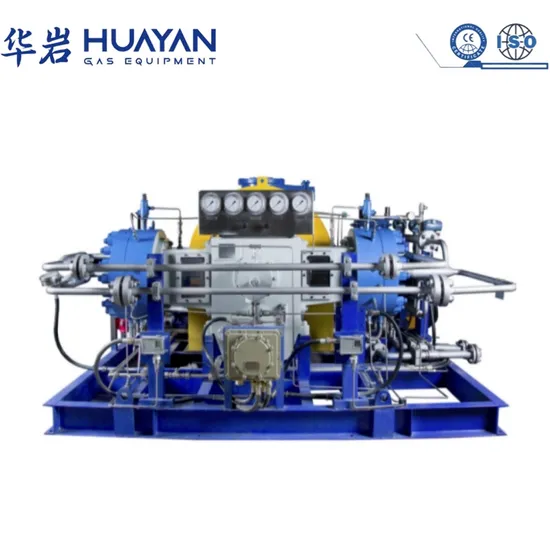

Gd Series High-Pressure Diaphragm Compressor Oxygen Hydrogen High Purity Gases Booster

Product Description

Diaphragm compressor according to the needs of the user, choose the right type of compressor to meet the needs of the user. The diaphragm of the metal diaphragm compressor completely separates the gas from the hydraulic oil system to ensure the purity of the gas and no pollution to the gas. At the same time, advanced manufacturing technology and accurate membrane cavity design technology are adopted to ensure the service life of the diaphragm compressor diaphragm. No pollution: the metal diaphragm group completely separates the process gas from the hydraulic oil and lubricating oil parts to ensure the gas purity.
Our compressors can compress ammonia, propylene, nitrogen, oxygen, helium, hydrogen, hydrogen chloride, argon, hydrogen chloride, hydrogen sulfide, hydrogen bromide, ethylene, acetylene, etc. (Nitrogen diaphragm compressor, bottle filling compressor, oxygen diaphragm compressor)

Advantages Good Sealing Performance . Cylinder has good heat dissipation performance . Completely Oil-free , the gas purity can be guaranteed to be higher than 99.999% . High Compression Ratios, High discharge pressure up to 1000bar . Long service life ,more than 20 years . Lubrication includes : oil free lubrication and splash lubrication
Cooling method includes: Water cooling and air cooling.
Type includes: V-type, L-type,D-type,Z-type
Product description
Main Structure
Diaphragm compressor structure is mainly composed of motor, base, crankcase, crankshaft linkage mechanism, cylinder components, crankshaft connecting rod, piston, oil and gas pipeline, electric control system and some accessories.
Product features:
1. Good sealing performance:
Diaphragm compressor is a kind of special structure positive displacement compressor, the gas does not need lubrication, good sealing performance, the compression medium does not contact with any lubricant, will not produce any contamination in the compression process, Especially suitable for high purity (99.9999% above), rare, highly corrosive, toxic ,harmful, flammable , explosive and radioactive gas compression, transportation and bottle filling.
2.Cylinder heat dissipation performance is good:
Compressor cylinder heat dissipation performance is good, close to isothermal compression, can use high compression ratio, suitable for compression of high pressure gas.
Technological advantage
1, Low of speed prolong the service life of wearing parts. The new membrane cavity curve improves the volume efficiency.optimizes the gas valve profile, and the diaphragm adopts a special heat treatment method, greatly prolongs the service life.
2, the use of high efficiency cooler, so that the temperature is low, high efficiency, can properly extend the life of lubricating oil, O-ring, valve spring. Under the condition of meeting the technological parameters, the structure is more advanced, reasonable and energy saving.
3, the cylinder head using Mosaic double O-ring seal, its sealing effect is far better than open head.
4, diaphragm rupture alarm structure advanced, reasonable, reliable, diaphragm installation is non-directional, easy to replace.
5. The parts of the whole equipment are concentrated on a common skid which is easy to transport, install and operation.
Main Structure
Diaphragm compressor structure is mainly composed of motor, base, crankcase, crankshaft linkage mechanism, cylinder components, crankshaft connecting rod, piston, oil and gas pipeline, electric control system and some accessories.
Structure and working cycle of diaphragm compressor
Application
Food industry, petroleum industry, chemical industry, electronics industry, nuclear power plant, aerospace, medicine, scientific research.
Outlet pressure at 50bar 200 bar, 350 bar (5000 psi), 450 bar, 500 bar, 700 bar (10,000 psi), 900 bar (13,000 psi) and other pressure can be customized .

GD series diaphragm compressor parameter table
Model	Cooling water consumption (t/h)	Displacement (Nm³/h)	Intake pressure (MPa)	Exhaust pressure (MPa)	Dimensions L×W×H(mm)	Weight (t)	Motor Power (kW)
GD-120/4-80	3.0	120	0.4	8.0	3000×1600×1400	4.0	30
GD-130/0.98-11	3.0	130	0.098	1.1	3000×1800×1600	4.0	30
GD-150/2-20	3.0	150	0.2	2.0	3000×1800×1600	4.0	37
GD-100/0.1-5	4.0	100	0.01	0.5	2800×1500×1500	3.0	18.5
GD-100/5.5-200	5.0	100	0.55	20	3200×2000×1600	4.5	45
GD-80/0.12-4	5.0	80	0.012	0.4	2800×1600× 1500	3.8	15
GD-60/0.3-6	4.0	60	0.03	0.6	2800×1600×1500	4.0	15
GD-70/0.1-8	3.8	70	0.01	0.8	3000×1600×1250	5.0	18.5
GD-40/0.02-160	5.0	40	0.02	16	2800×1460×1530	3.0	22
GD-100/0.5-6	2.0	100	0.05	0.6	3000×2000×1560	6.0	18.5
GD-36/1-150	4.0	36	0.1	15	3000×1500×1500	4.0	45
GD-35/0.7-300	4.0	35	0.07	30	3000×1600×1500	4.0	22
GD-500/15-35	4.5	500	1.5	3.5	3000×2000×1700	4.0	45
GD-150/15-210	4.5	150	1.5	21	3200×1700×1600	4.0	45
GD-120/8-220	4.5	120	0.8	22	3200×1700×1600	3.8	45
GD-100/9	4.5	100	0.0	0.9	3200×1700×1800	4.5	22
GD-100/1.5-150	4.5	100	0.15	15	3200×1700×1800	4.5	45
GD-40/30	4.5	40	0.0	3.0	3200×1700×1800	4.0	18.5
GD-200/10-15-90	4.5	200	1.0-1.5	9.0	3200×1800×1600	4.0	37
GD-100/7-150	4.0	100	0.7	15	3000×1800× 1600	4.0	55
GD-25/-0.1-47	4.0	25	-0.01	4.7	3000×1800×1600	4.0	15
GD-45/0.5-100	4.0	45	0.05	10	3000×1800×1600	4.0	30
GD-30/0.1-160	4.0	30	0.01	16	3000×1800×1600	4.0	18.5
GD-120/2.5-70	4.0	120	0.25	7.0	3000×1800×1600	4.0	37
GD-135/10-210	4.0	135	1.0	21	3000×1600×1400	4.0	37
GD-60/40-350	4.5	60	4.0	35	3000×1800×1600	4.0	30
GD-95/10-350	4.0	95	1.0	35	3000×1600×1400	4.0	37
GD-220/11-90	4.0	220	1.1	9.0	3000×1800×1600	4.0	37
GD-300/15-220	4.5	300	1.5	22	3600×2200×1700	5.0	75
GD-300/13-210	5.0	300	1.3	21	3500×2300×1800	6.0	75
GD-120/12-350	6.5	120	1.2	35	3500×2300×1600	8.5	45
GD-165/10-250	8.0	165	1.0	25	3500×2300×1500	8.5	55
GD-120/8-350	6.5	120	0.8	35	3500×2300×1600	8.5	45
GD-800/210-320	8.0	800	21	32	3500×2300×1500	8.5	37
GD-420/8-39	6.5	420	0.8	3.9	3600×2500×1700	6.0	75
GD-370/20-200	4.5	370	2.0	20	3600×2200×1700	5.0	75
GD-350/18-210	4.5	350	1.8	21	3600×2200×1700	5.0	75
GD-300/8-120	4.5	300	0.8	12	3600×2200×1700	5.0	75
GD-308/4	10.0	308	0	0.4	4200×3200×2600	10.0	55
GD-180/8.5	5.0	180	0	0.85	4200×3200×2600	10.0	55

Customized is accepted , Pls provide the following information to us ,then we will do the technical proposal and best price to you.
1.Flow rate: _______Nm3/h
2.Gas Media : ______ Hydrogen or Natural Gas or Oxygen or other gas
3.Inlet pressure: ___bar(g)
4.Inlet temperature:_____ºC
5.Outlet pressure:____bar(g)
6.Outlet temperature:____ºC
7.Installation location: _____indoor or outdoor
8.Location ambient temperature: ____ºC
9.Power supply: _V/ _Hz/ _3Ph
10.Cooling method for gas: air cooling or water cooing
For any more information about the gas compressor, please kindly contact us
https://xzhuayan.en.made-in-china.com/contact-info.html
Picture Dispaly
Company strength display
After Sales Service
1.Quick response within 2 to 8 hours, with a reaction rate exceeding 98%;
2. 24-hour telephone service, please feel free to contact us;
3. The whole machine is guaranteed for one year (excluding pipelines and human factors);
4. Provide consulting service for the service life of the whole machine, and provide 24-hour technical support via email;
5. On-site installation and commissioning by our experienced technicians;
Our Customer
Exhibition Display

Certificate display
Packaging and Shipping
FAQ
1.How to get a prompt quotation of gas compressor ?
1)Flow Rate/Capacity : ___ Nm3/h
2)Suction/ Inlet Pressure : ____ Bar
3)Discharge/Outlet Pressure :____ Bar
4)Gas Medium :_____
5)Voltage and Frequency : ____ V/PH/HZ
2.How long is delivery time ?
Delivery time is around the 30-90 days .
3.What about the voltage of products? Can they be customized?
Yes, the voltage can be customized according to your inquire.
4.Can you accept OEM orders?
Yes, OEM orders is highly welcome.
5.Will you provide some spare parts of the machines?
Yes, we will .
