Product Description

Factory Low cost Potato Chips Machine French Fries Processing Line Machine
1.Description:
Fried potato chips is one kind of snack processed from fresh potato after washing, peeling, slicing, frying and flavoring. It keeps the special delicious flavor of roasted potato on one respect and has the characteristics of rich nutrition, delicious, convenient and so on, thus won the flavor of the consumers.
2. Operation procedure:

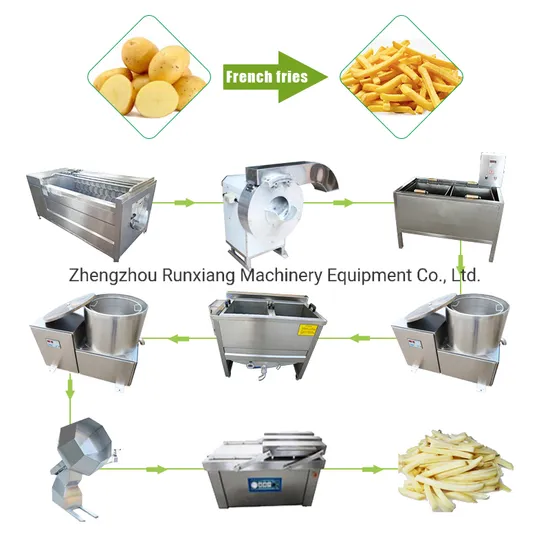

Washing and peeling--cutting--blanching--dewatering--frying--de oiling--flavoring--packing
3. Brief introduction for the potato chips production line:
(1). Fresh potato cleaning and peeling machine
(2). Potato slicer/chips making machine
(3). Blanching machine
(4). Dewatering machine
(5). Frying machine
(6). De-oiling machine
(7). Flavoring/seasoning machine
(8). Potato chips packaging machine
4, All materials of our machines are 1.5mm thickness 304 Stainless steel.
5, Now we have capacities as below:
30-40kg/h, 70-80kg/h and 150kg/h. 500kg\h, and also can make the special capacity according to your needs.

Machine name	Power	Dimension
Washing peeling machine	1.5kw	700*630*950mm
Potato cutter	1.1kw	900*850*1000mm
Blanching machine	24kw	1000*500*1000mm
Dehydrator	1.5kw	1000*600*740mm
Fryer	36kw	1200*1000*1200mm
Deoiler	1.5kw	1000*600*740mm
Seasoning machine	1.1kw	1150*800*1300mm
Packing machine	1.5kw	800*500*1000mm

Machine detail:
This potato chips production line is the best choice for making potato chips with low investment and power consumption. This whole line is made up of potato washing peeling machine, potato cutting machine, blanching machine, dehydrating machine, frying machine, deoiling machine, flavor mixing machine and nitrogen filling packing machine.
1.Peeler: cleaning and peeling process at one time, high efficient and low consumption.
2. Cutter: cut into strip,flake and julienne shape, adjustable cutting size
3. Blanching machine: do rinsing and color protection of the cut potato chips.
4. Dehydrator: centrifugal dehydration, reduce the time when drying, and improve the taste of the potato chip.
5. Fryer: keeps the potato chips quality and taste.
6. De-oiling: use the centrifugal, overcome the shortcoming of botheration.
7. Flavor Machine: make the potato chips turning even, use the spray type to add the seasoning, not easy to break.
8. Vacuum package machine:when packing, put into nitrogen, can avoid break of the potato chips.
We also have full automatic potato chips making machine line(150kg\h,300kg\h,500kg\h):
