Flame Resistant Underground Conveyor Belt

Product Description

Product Description Main Products:EP Conveyor BeltNylon Conveyor BeltCanvas Conveyor BeltSteel Cord Conveyor BeltSidewall Conveyor BeltFire Retardant Conveyor BeltHeat Resistant Conveyor BeltCold Resistant Conveyor BeltOil/Acid/Alkali Resistant Conveyor BeltSpecial Pattern (Chevron) Conveyor Belt Steel cord conveyor belt is suitable for high strength, long distance, heavy loading transportation of materials, which are widely used in coal mineral, mines, metallurgy, electricities, ports, chemical industries, etc. It has the following characteristics:
Characteristic:1,High allowable strength and high safety factor;2,Minimal elongation, short stretching distance;3,The steel wire rope is firmly bonded with rubber and has excellent dynamic performance;4,Soft belt body, good grooving, good linear operation;5,Excellent impact resistance;6,Reliable joint, long service life.
Product featuresThe wire rope conveyor belt is composed of core glue, wire rope, cage cover layer and side glue. It has the advantages of mildew-proof, moth-proof, anti-aging, good heat resistance, high tear strength, and the belt surface can be refurbished after it is used out. Features High tensile strength. Good impact resistance, long life, small elongation in use, good groove formation, good flexibility resistance, suitable for long intervals, large distances, and high-speed conveying of materials.

Detailed Photos Applications:It is widely used in material delivery for coal/coke, mine, harbour, metallurgy, electric power and chemical industry.

Mining Conveyor Belt	Lump Size	Temperatrure of Materials Carried	Belt Surface Temperature
Coke	100~200mm(4~8 inch)	70~100 ºC	50~60 ºC
Cement	Powder	100~250 ºC	80~90 ºC
Clinker	10~30 mm (0.4~1.2 inch)	100~220 ºC	100~110 ºC
Molding	--	200~250 ºC	80~90 ºC
Metal Powder	--	170 ºC	120~130 ºC
Raw Material	below 30mm(1.2 inch)	180~220 ºC	100~120 ºC
Sintered Ore	25~200 mm(1~8i nch)	200~400 ºC	130~150 ºC
Return of Sintered Ore	below 10mm(0.4 inch)	260 ºC	180~200 ºC

Product classification1. According to the structure, it is divided into ordinary type and impact-resistant and tear-resistant type.2. According to the purpose: in addition to ordinary types, there are also types such as wear-resistant, heat-resistant, cold-resistant, acid and alkali-resistant, flame-retardant, tear-proof, non-flammable, and ozone-resistant.3. Varieties: According to the performance of the covering glue, it can be divided into: ordinary steel wire rope core conveyor belt, flame-retardant steel wire rope core conveyor belt, heat-resistant steel wire rope core conveyor belt, wear-resistant steel wire rope core conveyor belt, cold-resistant steel wire rope core conveyor belt, acid and alkali-resistant steel wire rope core conveyor belt, oil-resistant steel wire rope core conveyor belt, flame-retardant steel wire rope core conveyor belt and other varieties. The strength is higher than that of ordinary transportation belts, and the length is longer, which can reduce the conversion point and save power and energy consumption.
Product Parameters Standard specifications

Belt Strength	Cord dia (mm)	Cord structure	Pitch (mm)	Tension (N/mm)	Cover thick mm	Weight (kg/m)	Pulley Min mm	Cord stre KN/pc
ST-630	3.0	6*7+1WS	10	90	5*5	20.2	800	6.93
ST-800	3.5	6*7+1WS	10	110	5*5	20.6	800	8.8
ST-1000	4.0	6*7+1WS	12	140	6*6	24.7	800	13.2
ST-1250	4.5	6*7+1WS	12	175	6*6	25.4	800	16.5
ST-1600	5.0	6*19+1WS	12	225	6*6	26.0	1000	21.12
ST-2000	6.0	6*19+1WS	12	285	8*6	30.0	1000	26.4
ST-2500	7.5	6*19W+1WS	15	355	8*6	32.2	1250	41.25
ST-3150	8.1	6*19W+1WS	15	450	8*8	35.7	1400	51.98
ST-4000	9.1	6*19W+1WS	16	570	8*8	37.8	1600	74.8
ST-4500	9.7	6*19W+1WS	16	645	8*8	38.7	1800	79.2
ST-5000	10.9	6*19W+1WS	17	751	8.5*8.5	41.9	1800	93.5
ST-5400	11.3	6*19W+1WS	17	760	9*9	43.9	2000	101
ST-6300	12.3	6*19W+1WS	18	900	10*10	48.3	2000	124.74

Rubber Cover

Grade	Tension Strength N/mm Min	Elongation at Break % Min	Max. Abarsion mm3
H	24	450	120
D	18	400	100
L	15	350	200
K	15	350	200

Certifications

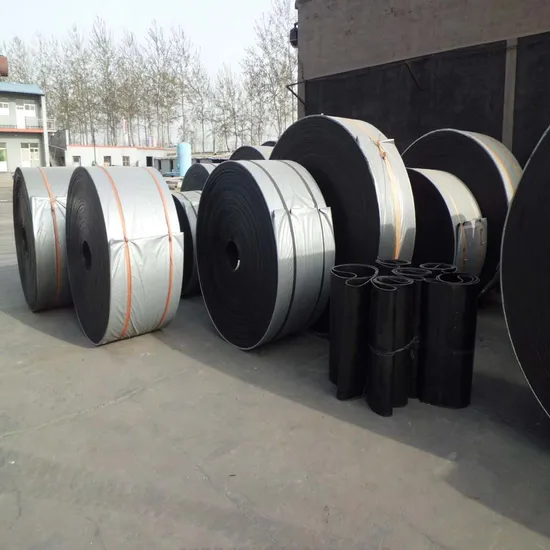

Packaging & Shipping
Company Profile
Our company is the High-end Conveying Equipment brand , with excellent technical team and in house intellectual property & national patents,developing intelligent conveying machinery. Focusing on transforming itself into international competitive one-station solution provider of intelligent conveying system, providing not only intelligent products but also whole cycle management from construction to operation & service for our customers.Our company located in Hengshui city in North China Plain, it's the cross road of Beijing,Tianjin and Hebei. We have more than 800 units advanced manufacturing equipments, including 20 large and main units and three automatic production lines. The factory covers 253,000 square meters. It's registered capital is 71,550,00 USD, There are more than 300 employees which contains 30 with middle-level titles and 125 technical workers with high technical skills. Our company is mainly engaged in the manufacture, sales and technical services of belt conveyors, large angle belt conveyors, horizontal curved belt conveyors and long distance crossing conveyors. Our products can be used in metallurgy, building materials, electric power, coal, port and other industries, products have been covered the whole domestic market, and exported to the United States, Germany, France and other EU countries, Australia, Brazil, along the Belt and Road countries, Southeast Asian countries and African emerging markets, totally more than 50 countries, gained the customers' praise.
