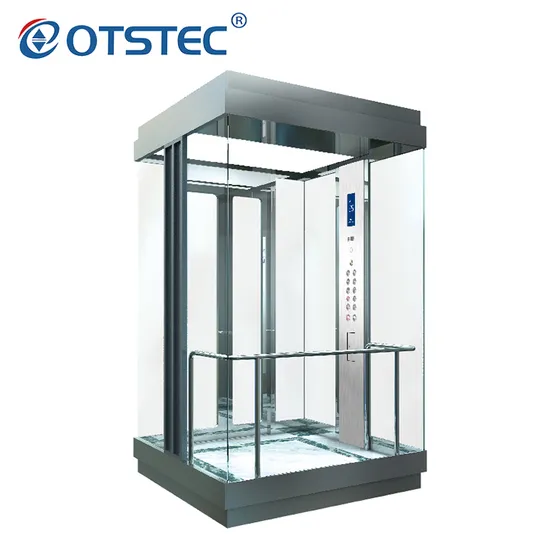

Factory Manufacturer Panoramic Lift Glass Elevator with Sightseeing Elevator
Basic Info.
Model NO.
OTN-30
Type
with Machine Room
Speed
0.4m/S-6.0m/S
Capacity
450kg-1600kg
Persons
6 - 10
Shape
Half Circle/Circle/Square/Hexagon/Capsule
Number of Sides
Four
Driving Type
Gearless Motor
Control Mode
Signal/Group Control
Elevator Door
Center Opening / Side Opening
Door Knife
Single
Certification
ISO/CE/Bl/TUV/SGS
After-Sale Service
Online Technical Support, Onsite Installation
Control System
Monarch Vvvf Controller
Material
Tempered Glass
Buffer
Hydraulic Buffer
Optional Function
Ard, IC Card, Remote Monitor
Transport Package
Solid Wooden Case
Specification
20GP/40HQ
Trademark
OTSTEC
Origin
China
HS Code
842810109
Production Capacity
10000 Sets/Year
Product Description
Product DescriptionProduct Parameters
| Small Machine Room | ||||||
| Loading Passenger | Loading Capacity | Speed | Car Size | Shaft(Min.) | Overhead Height | Rise(Max.) |
| Passenger | (Kg) | (m/s) | W*D*H(mm) | W*D(mm) | W*D(mm) | HQ(Max.)(m) |
| 6 | 450 | 1.0 | 1100*1100*2400 | 1700*1800 | 4500 | 45 |
| 8 | 630 | 1.0-1.75 | 1400*1100*2400 | 2000*1800 | 4500 | 95 |
| 10 | 800 | 1.0-2.5 | 1400*1300*2400 | 2000*2000 | 4500 | 120 |
| 13 | 1000 | 1.0-3.0 | 1600*1500*2400 | 2200*2200 | 4500 | 150 |
| 16 | 1250 | 1.0-4.0 | 1950*1400*2400 | 2600*2100 | 4500 | 180 |
| 21 | 1600 | 1.0-4.0 | 1950*1750*2400 | 2600*2450 | 4500 | 180 |
| Machine Room less | ||||||
| Loading Passenger | Loading Capacity | Speed | Car Size | Shaft(Min.) | Overhead Height | Rise(Max.) |
| Passenger | (Kg) | (m/s) | W*D*H(mm) | W*D(mm) | W*D(mm) | HQ(Max.)(m) |
| 6 | 450 | 1.0 | 1100*1100*2400 | 1900*1500 | 4500 | 45 |
| 8 | 630 | 1.0-1.75 | 1400*1100*2400 | 2200*1500 | 4500 | 95 |
| 10 | 800 | 1.0-2.5 | 1400*1300*2400 | 2200*1700 | 4500 | 120 |
| 13 | 1000 | 1.0-2.5 | 1600*1500*2400 | 2400*1900 | 4500 | 150 |
| 16 | 1250 | 1.0-2.5 | 1950*1400*2400 | 2750*1800 | 4500 | 180 |
| 21 | 1600 | 1.0-2.5 | 1950*1750*2400 | 2750*2150 | 4500 | 180 |
Packaging & Shipping
Certifications
Exhibitions
Our Advantages
FAQ
Q1. What is your terms of packing?
A: Generally, we packed our goods by solid wood case,
If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
A: Generally, it will take 25 to 30 days after you confirm the elevator (escalator) specification and drawing, and receiving your advance payment.
Q4. Do you test all your goods before delivery?
A: Yes, for elevator,we will assemble the cabin,cabin frame,door operator ,for escalator,we will test to run 72 hours before delivery,at the meanwhile,we will send you many test pictures.
Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
