Heavy Duty Large Metal Lathe for Sale

Product Description

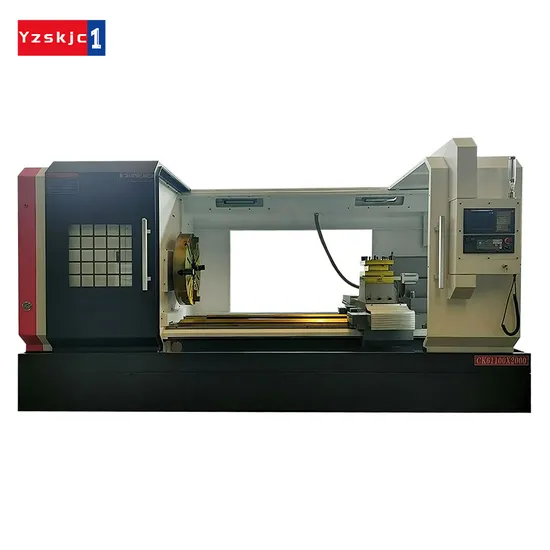

China Heavy duty large metal lathe for sale

Product Description
The main technical parameters of Heavy duty large metal lathe for sale:

Machine model	CK61100
Max.swing over bed (mm)	Φ1000
Max.swing over carriaget (mm)	Φ680
Maximum processing length (mm)	1500,2000,3000
Guide rail width (mm)	600
Spindle rotation form	4-speed continuously variable speed
Spindle speed range (r/min)	30-84/53-150/125-350/300-835
Spindle end structure	D11
Spindle hole diameter (mm)	Φ105
Clamping method	Φ1000 four-jaw chuck
Main motor	11KW (frequency converter 15KW)
X/Z stroke (mm)	1500/2000/3000
Ball screw diameter * pitch (mm)	32*8/63*10
Rapid moving feed (m/min)	4/6
Standard configuration of tool holder	Electric vertical four-station tool holder
Tool holder tool bar section (mm)	40*40
X/Z direction servo drive motor (Nm)	10/15
Tailstock sleeve diameter (mm)	Φ100
Tailstock sleeve inner hole taper No	MT6#
Tailstock sleeve stroke (mm)	250
Machine tool overall dimensions ((L×W×H)) (mm)	3600/4100/4600x1950x2000
Approximate weight of machine tool (Kg)	4400/4800/5600/6700

Main configurations for China factory CNC lathe machining near me:

Name	Specifications	Quantity	Model	Brand Origin
Control System	GSK980TC3 system	1	Guangshu	Guangzhou
Spindle unit	self-control	1		Domestic
Screw bearing			Harbin	Domestic
Electric knife holder	LD-6163	1	Hongda	Domestic
Spindle motor	Main motor(11 KW)	1	Shanghai	Domestic
Ball screw		1	Nanjing Craftsmanship	Domestic
Automatic lubrication device		1		Domestic
Cooling pump	125W	1		Domestic
Frequency converter	11KW	1	HY	Domestic

Main features and function requirements for Heavy duty large metal lathe for sale: This machine tool is a CNC machine tool with high speed, high precision and high reliability. The main components such as the bed base, bed bed, and headboard are all cast from high-strength materials to ensure the stability of the machine tool for long-term use. Adopting an integral bed structure, the machine tool has high positional accuracy, smooth chip removal, and is suitable for high-speed and high-precision machining. High-speed, high-precision and high-rigidity spindle, variable frequency spindle motor. The spindle is assembled in a constant temperature room. After assembly, it undergoes constant temperature running-in for 72 hours. After being put on the machine, it undergoes a continuous 72-hour test run to ensure the reliability of high-precision performance. Use the 4-station vertical electric tool holder method, which has fast tool changing speed and high positioning accuracy. Precision ball screws are used for feed in the X and Z directions. The servo motor is directly connected to the screw through a high-torque and low-inertia imported elastic coupling. The screw support adopts a pre-stretched structure, which can eliminate transmission backlash and pre-compensate the machine tool. The influence of thermal deformation on accuracy during long-term operation ensures positioning accuracy and repeated positioning accuracy; it adopts advanced centralized automatic lubrication device, timing and quantitative automatic intermittent lubrication, and the work is stable and reliable. The machine tool protection adopts a full protection design, which is highly pleasant, unique in appearance, reliable in waterproofing and chip prevention, and easy to maintain. Detailed Photos
Heavy duty large metal lathe for sale :
Packaging & Shipping
Heavy duty large metal lathe for sale:
Our customers :
Our Advantages
After Sales Service
The warranty period is 12 months, calculated from the date of successful installation and trial operation.The equipment provided by the seller is new and unused. The performance of the equipment, after installation, debugging, and operation complies with the relevant national standards or stipulated in the agreement between the parties.The seller shall provide relevant technical support within 2 hours upon receiving a phone call from the buyer. In the event that the buyer is unable to resolve the issue independently, the seller will conduct troubleshooting at the within 24 hours in sellers' country . Parts identified as quality-related issues during the warranty period will be replaced free of charge.We have professional technician team and we could offer installation and training in customers' factory , just charge for reasonable labor fee .
