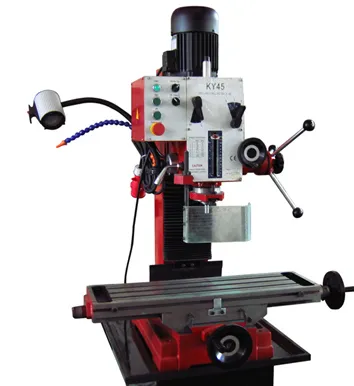

High Precision Bench Household Manual Drilling Milling Machine (KY45FG/KY40FG/KY32FG)

High Precision Bench Household Manual Drilling Milling Machine (KY45FG/KY40FG/KY32FG)

US$1,120.00-1,380.00 3 Sets (MOQ)

Basic Info.

Model NO.
KY45FG/KY40FG/KY32FG
Spindle Travel
130mm
Face Milling Capacity
80mm
End Milling Capacity
32mm
Power
1.5kw
Transport Package
Wooden Case
Specification
KY45FG/KY40FG/KY32FG
Trademark
KY
Origin
China
Production Capacity
150-200 Sets /Month

Product Description

Specifications
Drilling capacity 32mm/40mm/45mm
Face milling capacity 80mm
End milling capacity 32mm
Max. Distance from spindle nose to table 450mm
Min. Distance from spindle axis to column 260mm
Spindle travel 130mm
Spindle taper MT4 or R8
Step of speed 6
Range of spindle speed 50Hz 80-1250 rpm
60Hz 95-1500 rpm
Swivel angle of headstock perpendicular Size of table 800*240mm/700*240mm
Forward and backward travel of table 175mm
Left and right travel of table 500mm/400mm
Power 1.5KW
Voltage/frequency As customer's requirement

Warehouse to film
Packing & Delivery
