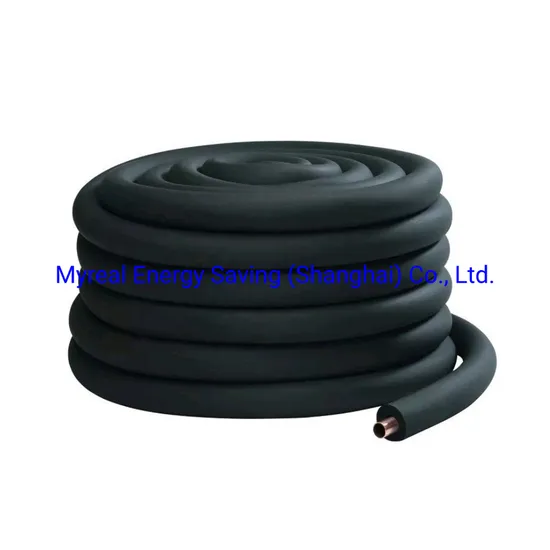

Armacell Class 0 COB-40*076 Excellent Quality Foam Rubber Pipe Heat Insulation Tube
Basic Info.
Model NO.
COB-40*076
Feature
Heat-resistant, Insulating, Cold-resistant
Raw Materials
Foam Rubber
Performance
Insulating Rubber Slab
Color
Black Rubber Sheet
Max. Service Temperature
+105 °c
Min. Service Temperature
-50 °c
Water Vapour Diffusion
10,000
Thermal Conductivity
0.039
Surface Spread of Flame
Class 1
Fire Performance
Class 0
Transport Package
Cartons
Specification
ID 76* Tkn 40mm, Length 2m/pc
Trademark
armacell
Origin
China, Suzhou
Production Capacity
600000PCS/Month
Product Description
Product Description ArmaFlex Class 0 is a flexible insulation material that reliably protects against water vapour ingress due to its closed-cell structure. No additional water vapour barrier is required.Product Parameters
| Property | Value /Assessment | Standard / Test Method | |||||
| Temperature Range | |||||||
| Service Temperature | Max. service temperature | + 105ºC | + 85ºC if sheet or tape is glued to the object with its whole surface. | When the service temperature is under -200ºC, please contact our technical department | |||
| Min. service temperature | - 50 ºC | ||||||
| Thermal Conductivity | |||||||
| θm | -20 | +/- 0 | +40 | [ ºC ] | GB/T 10294, GB/T 10296 DIN52612, DIN52613 | ||
| λ ≤ | 0.032 | 0.034 | 0.039 | [ W/(m·k) ] | |||
| Water Vapour Diffusion Resistance | |||||||
| Water vapour diffusion resistance factor | μ > 10,000 | GB/T 17146 DIN52615 | |||||
| Water vapour permeability | ≤ 1.96 x 10-11g/(m·s·Pa) | ||||||
| Fire Performance & Approvals | |||||||
| Surface spred of flame | Class 1 | BS 476 Part 7: 1997 | |||||
| Fire performance according to building regulations | Class 0 | BS 476 Part 6: 1989 UK Building Regulation | |||||
| Burning Behaviour of Building materials and products | Class B1 | GB 8624-2012 | |||||
| Flammability | V-0, FM Approved | UL 94, FM 4924 | |||||
| Practical fire behaviour | Does not generate flaming droplets | ||||||
| Others | Registered by the Fire Services Department of Hong Kong for the entire range of thickness. Product conforms to the requirements for building products under the Fire Safety and Shelter Department, Singapore. | ||||||
Packaging & Shipping Paper Carton or plastic bags
Minimum order quantities and different lead times may apply.Please confirm with our customer service representative when place an order. Self-adhesive option available upon request. Minimum order quantities and different lead times may apply. Awards & Certificates
