High Shear Horizontal Aloe Gel Milling Jam Making Machine with Motor for Grinding

Product Description

High Shear Horizontal Aloe Gel Milling Jam Making Machine with Motor for Grinding

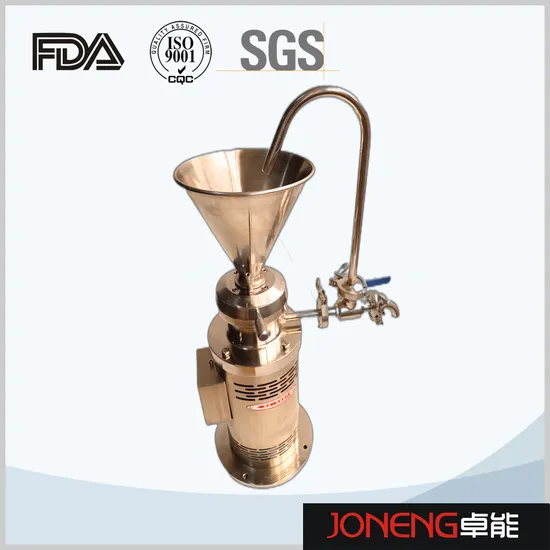

A stainless steel grinding mill or grinding colloid mill is a machine that uses stainless steel parts to break down solid particles or liquid droplets into smaller molecules. The machine is made up of a rotor and a stator, with the rotor spinning at high speeds and forcing a slurry into a cavity formed by the stator. The cones of the mill, which are made of stainless steel or corundum, crush the compounds together, shearing them into smaller pieces.
Working Principle
A stainless-steel grinding colloid mill, also known as a colloid mill, uses the rotor-stator principle to reduce the size of particles in a liquid suspension or droplets in emulsions:
Feed: Solid materials are fed into the mill's inlet, also known as a hopper.
Shear: The rotor and stator collide with each other, forcing the material into a cavity formed by the spinning rotor and fixed stator. The material is then passed through a narrow gap between the rotor and stator, where it experiences intense shearing, rubbing, and cutting. Centrifugal force also propels the material to the outside of the rotor.
Refine: The material is crushed, emulsified, and homogenized to reach a refined product. Additional passes through the mill can further reduce the drop size. Colloid mills can be used for a variety of applications, including superfine grinding, mixing, dispersing, emulsifying, and extracting liquids, ointments, and highly viscous products.
Technical Specifications

Model	Fineness um	Yield T/H	Grinding Disc Diameter mm	Cooling water pipe mm	Outlet Diameter mm	Inlet diameter mm	Speed rpm	Motor Power kw	Dimensions Length*Width*Height mm	Weight kg
JM-L50	2-50	0.01-0.1	50	none	20	42	2880	1.5	280*350*750	45
JM-L65	2-50	0.01-0.5	50	10	20	42	2880	1.5	280*350*750	45
JM-L80	2-50	0.3-1	80	12	25	57	2880	3	350*550*950	85
JM-L100	2-50	0.5-2	100	12	32	76	2880	5.5	400*650*980	145
JM-L120	2-50	0.5-3	120	12	32	76	2880	7.5	400*650*980	148
JM-L140	2-50	0.5-4	140	12	40	89	2880	7.5	420*650*1000	150
JM-F50	2-50	0.01-0.1	50	none	20	42	2880	2.2	320*550*750	85
JM-F65	2-50	0.01-0.5	50	10	20	42	2880	2.2	320*550*750	85
JM-F80	2-50	0.3-1	80	12	25	57	2880	4	700*320*960	145
JM-F100	2-50	0.5-2	100	12	32	76	2880	5.5/7.5	800*400*980	220
JM-F120	2-50	0.5-3	120	12	32	76	2880	7.5	800*400*980	225
JM-F140	2-50	0.5-4	140	12	40	89	2880	11/15	800*400*1000	285
JM-F180	2-50	1-8	180	12	40	108	2880	18.5/22	1000*480*1150	385
JM-W80	2-50	0.3-1	80	12	25	57	2880	3	600*350*500	80
JM-W100	2-50	0.5-2	100	12	32	76	2880	5.5	700*420*550	125
JM-W120	2-50	0.5-3	120	12	32	76	2880	7.5	700*420*550	130
JM-W140	2-50	0.5-4	140	12	40	89	2880	7.5	700*420*580	150
Note: The output of (L vertical/F split/horizontal) colloid mill equipment changes with the nature of the material, the concentration and viscosity of the material, and the thickness adjustment of the equipment. The maximum output of the equipment is calculated based on the water flow rate (for reference only). Please inquire in detail for specific requirements. Conventional JM-50 and JM-65 models can be equipped with 220v single-phase electricity. Conventional motors above 3KW default to three-phase electricity. For materials with low concentration 3K, single-phase electricity can be customized (if you have special voltage requirements, please contact our company)

JoNeng was established in July 2007, located in Wenzhou, China. Totally around 100 nos of workers and the factory Covers 6800m2.
We have three manufacturing factories under Joneng enterprise. Jiayuan is especially into elbow, tee, reducer fittings in both sanitary grade and schedule grade ; Lingdong is focusing into ferrule, union, sight glass, butterfly valves which are produced from CNC machines; Ezo is into manhole covers and small tanks.
We mainly manufacture:
Stainless steel butterfly valves, ball valves, check valves, CPM valves, diaphragm valves..;
Stainless steel sanitary & Industrial grade elbow, tee, reducer, ferrule, union fittings ;
Stainless steel sight glass, spray ball, manhole cover, flanges,strainers, filters,pipe clamps;
Stainless steel centrifugal pumps, CIP pump, emulsifying pump, rotary pumps; The products are produced according to SMS, DIN, AS, BS, BPE, JIS,JIS, ISO,ANSI B16.5, ASME and other standards. They also can be customized. Our products have been exported to dozens of
countries and regions such as Europe, America, Middle East,Australia,Turkey, Iran,Thailand... more than 100 countries.
Joneng is approved with CE, PED, ISO 9001 quality management system. The products are complied with FDA certificate.
The product can be widely used in Dairy, Beer, Wine,Beverage, Food, medicine, Chemical,Water Treatment and other fields.
JoNeng always insist in "What we say, What we do". Our goal is to make a centennial factory.
3 PMI machines to inspect the chemical for raw materials, semi finished products and final products to avoid mixing issue.
1 nos of roughness machine to check the surface of the products.We keep huge stock for pipe fittings( stainless steel elbow, tee, reducers) , union, ferrules, butterfly valves, check valves, ball valves....so we can delivery the goods in fast way.
24 hours' action for quality complaints For the stainless steel parts, we take 3 years guarantee without any excuse.Any quality complaints for our valves and fittings, please contact with us, a 24 hours' action is required. √17 years experience
√6800m2
√100 employees
√100+countries
√1000+ partners
OUR PRODUCTION CAPACITY

Production Lines	Stainless steel sanitary pipe fittings' line, machining line, sanitary manhole line,
Product Range	Sanitary butterfly Valve, sanitary diaphragm valve, sanitary pipe fittings, union, ferrule, sight glass, manhole cover, safety valve, sampling valve...
Year Established	2007
Factory Size in Square Meters	5000M2
NO. OF TOTAL STAFF	130
Production Capital	8 000 000 USD
Detail capacity	Manhole covers	12000nos
	Pipe fittings	150000nos
	Ferrules, unions, connectors	200000nos
	Diaphragm valves	15000nos
	Butterfly valves	20000nos
Investment in Manufacturing Equipment	750000USD
Details of equipment	For machining parts 29 nos of LG Mazak CNC Machines 4 nos of local CNC machines 2 nos of automatic CNC center 12 nos of plain lathe For pipe fittings 4 nos of press 3 nos of cutting machine 3 nos of chamfering machine We also have the following quipments 4 nos of polishing machine 12 nos of grinding machine 3 nos of laser marking machine 3 nos of pressure testing machine 1 nos of temperature testing machine 3 nos of spectro instrument 1 nos of surface roughness device
Primary Competitive Advantages	Strict inspection, honest business way, fast revert on order problem
Stocked materials	Big quantity for raw forging of butterfly valve, diaphragm valve, ferrule, union, adapters, pipe fittings, clamps, sight glass, safety valve, manhole cover,
OEM Services Provided	Yes
Design Service Offered	Yes
Sales Volume	6 000 000 USD
Export Percentage	80%
MAIN MARKET	USA, Germany, Hungary, Canada, Thailand, Holland, England, South Africa, Indonesia, Saudi, India, New Zealand, Australia, Middle East...
Own Brand Name	JoNeng

FAQ:
1. Are you a trading company or factory?
We are a manufacturer factory and we also have our own exporting license.
2. Do you have certificate ?
Yes, ISO, FDA, LFGB, CE, PED certificate . We also have some patents in design.
3. How do you control the quality?
In quality control ,the most important is to avoid material mixing .
In our factory , 3 spectro PMI machines are used in raw material warehouse, production plant, dispatch plant.
Pressure inspecting machine, PMI machines, RA roughness spector, hardness testing machine..... all machines help in inspection.
2 staff inspect during production in different sections
5 staff inspect the finished productions to avoid shortage, poor quality, mixing chemical....
4. If there is any quality problem, how do you solve it?
We are very proud that we never make one customer leave us. We are not 100% perfect, there is some quality problem.
Normally replacement, or compensation, or resend goods to customers as per the condition. To be discussed as per condition.
5. How long is your delivery time?
For normal products in 7-10 days; for bulk order, in 15-25 days. It depends.
6. Warranty time?
3 years warranty for all of our stainless steel products. Gaskets or the easy broken parts are not included due to the different application for customers.
7. Why trust in us ?
14 years in this industry . It makes us professional .Good credit in this market.
All of our machines are the assurance of our responsibility.
8. Free sample ?
Free samples can be provided for first cooperation under sincere cooperation.
9. What is the MOQ?
1pcs MOQ is welcome for starting cooperatoon
10.Material certificate ?
Material certificaite, mill certificate, pressure testing certificate, roughness certificate, measure certificate, RT certificate,... can be available, please declare when inquiry us.
11. More questions are appreciated.
