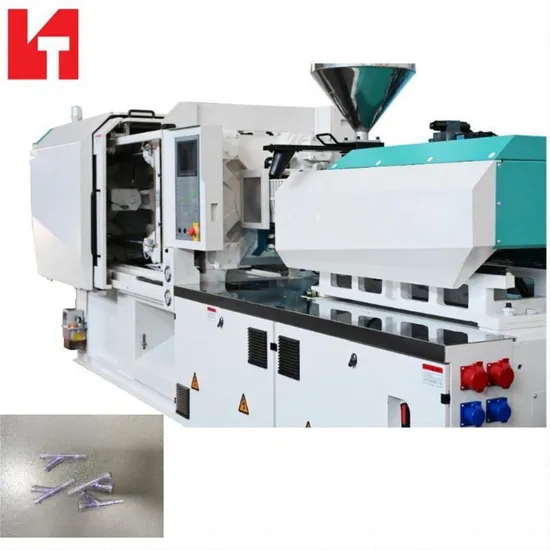

Reliable 140t Injection Molding Machine with User-Friendly PLC Interface
Basic Info.
Model NO.
NT140
Type
Preform Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Plunger Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
ISO9001:2008
Marketing Type
Hot Product
Core Component
Motor, PLC
Material
Stainless Steel
Applicable Industrial
Manufacturing Plant
Voltage
380V/50Hz 3p+N+E(Alterable)
Function
Plastic Parts Production
Mold
Can Be Customizable
Clamp Force
1400kN
Space Between Tie Bars
420*420
Transport Package
at Seller′s Option
Specification
4.8m*1.3m*2.1m
Trademark
Leantall
Origin
China
Production Capacity
20sets/Month
Packaging & Delivery
Package Size
480.00cm * 130.00cm * 210.00cm
Package Gross Weight
3800.000kg
Product Description
Product Parameters| Part | Name | Unit | NT140 | ||
| Injection unit | SCREW DIAMETER | mm | 38 | 42 | 45 |
| SCREW L/D RATIO | L/D | 22 | 20 | 18.5 | |
| INJECTION STROKE | mm | 170 | 170 | 170 | |
| NJECTION SPEED | Mm/sec | 112 | 112 | 112 | |
| SHOT VOLUME(THEORETICAL) | CM3 | 193 | 235 | 270 | |
| INJECTION WEIGHT(PS) | g | 175 | 213 | 245 | |
| INJECTION PRESSURE | Mpa | 177 | 145 | 126 | |
| INJECTION RATE | cm³/sec | 127 | 155 | 178 | |
| SCREW SPEED | rpm | 212 | |||
| clamping unit | CLAMP FORCE | Kn | 1400 | ||
| OPEN STROKE | mm | 390 | |||
| SPACE BETWEEN TIE BARS | mm×mm | 420X420 | |||
| MAX.MOULD HEIGHT | mm | 460 | |||
| MIN.MOULD HEIGHT | mm | 160 | |||
| EJECTOR STROKE | mm | 120 | |||
| EJECTOR FORCE | Kn | 46 | |||
| EJECTOR NUMBER | N | 5 | |||
| others | MAX.PUMP PRESSURE | Mpa | 16 | ||
| SEVRO DRIVE POWER | Kw | 18.5 | |||
| HEATING POWER | Kw | 7.5 | |||
| MACHINE DIMENSION(L*W*H) | m×m×m | 4.8*1.3*2.1 | |||
| MACHINE WEIGHT(ESTIMATE) | T | 3.8 | |||
Product Description
Packaging & Shipping
Company Profile
Our Advantages
Q: Are you manufacturer or trading company? A: We are manufacturer with decades experiences,located in Zhejiang province. Q: What is the product range? A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc. Q: Where is your main selling market? A: We have business domestic,USA,Russia,Indonesia,Egypt,Turkey ,Uzbekistan, Pakistan,etc. Q: Will you offer field installation and operator training at the buyer's factory? A: Yes,we will arrange our skilled engineers for filed installation and training. Q: What is the delivery time(equipment production time)? A: It will be ready around 50 days after getting mutual confirmation about the order details and prepayment. Q: Do you also have source for molds and spare parts? A: Yes,we can offer with the competitive quality and reasonable price. Customized as required. Q: What is the standard of package? A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.
