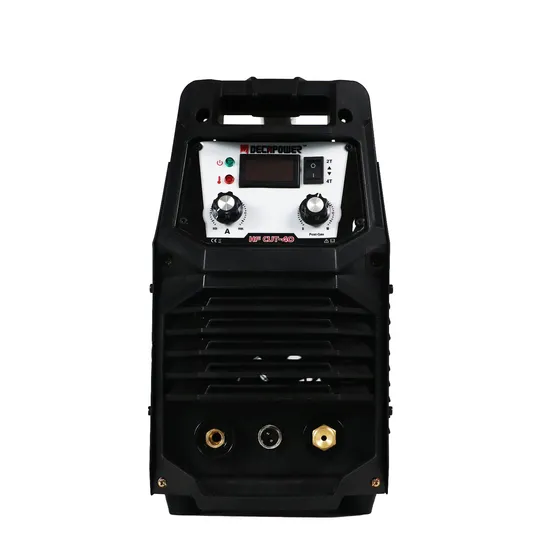

Decapower Heavy Industry Cut 25-30mm Inverter Plasma Cutting Machine (HF CUT 80)

Product Description

Product Features
1.HF CUT-80 is single phase inverter Plasma Cutter capable of clean cutting 25mm mild steel and evering 30mm mild steel.
2.The machine is light weight and extremely portable and is suited to heavy industrial work.
3.This powerful machine is perfect for site work as well as panel and fabrication work.
4.The machine comes standard with 4 metre torch making it extremely versatile for making cuts away from the machine itself.
5.The torch can be used in either 2T or 4T modes making it more comfortable for longer cuts.
6.Optional extras for the machine include an air filter unit to maintain clean and dry air as well as a circle cutting kit with roller guide.Product Parameters

Model#	CUT-40HF	CUT-60HF	CUT-80HF	CUT-100HF	CUT-120HF
Type	IGBT	IGBT	IGBT	IGBT	IGBT
Rated Input Voltage (V)	220V	380V	380V	380V	380V
Rated input frequency (Hz)	50/60Hz	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Rated input Power (KVA)	4.5KVA	7.8KVA	11.2KVA	15KVA	19.2KVA
Non-load Voltage (V)	240V	240V	320V	320V	330V
Plasma ARC Starting	HF Torch	Non-torch	Non-torch	Non-torch	Non-torch
2T/4T control	Support	Support	Support	Support	Support
Air Flow Pressure	3-4Bar	4-4.5Bar	6Bar	6Bar	6Bar
Output curent range (A)	40A	60A	80A	100A	120A
Rated Duty cycle (%)	48%@30ºC 60%@25ºC	60%@30ºC 75%@25ºC	80%@30ºC 100%@25ºC	90%@30ºC 100%@25ºC	85%@30ºC 100%@25ºC
Efficiency (%)	85%	85%	85%	85%	85%
Class of Insulation	H	H	H	H	H
Shell protection grade	IP21S	IP21S	IP21S	IP21S	IP21S
Max. Cutting Thickness	16mm	25mm	30mm	40mm	45mm
QualityCutting Thickness	12mm	20mm	25mm	35mm	40mm
Connector size	DKJ-25	DKJ-25	DKJ-25	DKJ-25	DKJ-25
N.W./G.W. (kg)	7.25/KGS	22KGS/KGS	22.45KGS/KGS	32.1KGS/KGS	32.3KGS/KGS
Machine Size (LxWxH mm)	420*180*340mm	520*250*440mm	520*250*440mm	560*300*585mm	560*300*585mm
Packaging	BROWN CARTON BOX	BROWN CARTON BOX	BROWN CARTON BOX	BROWN CARTON BOX	BROWN CARTON BOX
Accessories included:	1pc xPT CUT TORCH with 3m cable
	1pc x Eartch Clamp with 1.2m cable

Why Choose Us
Company Profile
Our Manufacturer TAIZHOU LEMIN WELDING EQUIPMENT CO., LTD is the manufacturer of DECAPOWER company group.We're focusing on developing and producing reliable quality Inverter Welding Machines and Air Plasma Cutter with favorable price, such as MMA/ARC WELDER, TIG WELDER, MIG WELDER and AIR PLASMA CUTTER which has been approved by CCC, CE certificate.
Core Target
Tailor client's assortment products with innovation, competitive price and well presentation.
People
We're culturally diverse globally gained. Our Knowledge and Industry focused terms are driven to satify and exceed customer's expectations.
Culture
Our "CAN-DO" and "YES.WHY NOT" philosophy defines DECAPOWER's global approach. Our customer-centric spirit makes it easy to work and being partner with us.
FAQ
1. Who are we?
We are the professional manufacturer of welding machines and plasma cutters since 2011. We're located at Wenling City of Zhejiang Province in maindland of China.

2. What do we manufactur?
We're mianly producing Inverter Welding Machine of
MMA welders from 100 Amp to 500Amp (DIY or Industry purpose).
TIG welders from 160Amp to 300Amp, (DC or AC/DC).
MIG/MAG welders from 120Amp to 230A, (Gas or Gasless).
Air Plasma Cutter from 40Amp to 120Amp, (Pilot or HF arc strike).
3. How can we guarantee the quality?
Always a pre-production sample before mass production;
Always 100% final Inspection before shipment.

4. What is your warranty terms?
We provide 1 year warranty time for the whole machine since you received it.
During the time, we will supply you the free spare parts for maintanence.
Meanwhile, we offer on-line technical supports for operating guide and troubleshooting.
5. Our advantages?
OEM/ODM is available.
Small order is acceptable, even 1 piece.
Quick Delivery is available in 45 days.
Overseas Warehouse (Russia & West-Europe) supports Fast dispatch.
