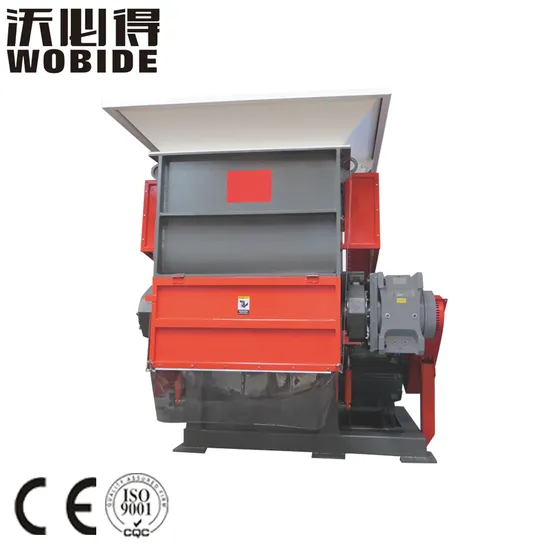

Wobide Machinery Industrial Compact Waste Plastic Bottle Single Shaft Recycling Shredder Machine

Product Description

Product Description

Model	WLS1500/450
Main Shaft Length(mm)	1500
Main Shaft Tactical Diameter(mm)	450
Main Shaft Speed(rpm)	78
Rotor Blades(pcs)	99
Fixed Blades(pcs)	4
Flat Blades(pcs)	102
Motor Power(kw)	55
Hydraulic Power(kw)	4
Screen Mesh Diameter(mm)	30-100
Cutting Chamber Dimension(mm)	1840*1540
Overall Dimension(mm)	2600*2750*2160
Weight(kg)	8500

Detailed Photos
Application
Application: Lefeover material of injection molding machine
Chemical blue barrel
Garbage bin
Pallet and other large-capacity barrel containers
Packaged bundle film
Blow molding industry waste
Carpet
Wood
Kitchen and household garbage.
Shredder Product Series

Model	WLS1000/450	WLS1200/450	WLS1500/450	WLS1800/450	WLS2000/450
Main Shaft Length(mm)	1000	1200	1500	1800	2000
Main Shaft Tactical Diameter(mm)	450	450	450	450	450
Main Shaft Speed(rpm)	78	78	78	78	78
Rotor Blades(pcs)	63	81	99	117	135
Fixed Blades(pcs)	3	4	4	5	5
Flat Blades(pcs)	72	84	102	120	138
Motor Power(kw)	22	37	55	75	90
Hydraulic Power(kw)	2	3	4	4	5
Screen Mesh Diameter(mm)	30-100	30-100	30-100	30-100	30-100
Cutting Chamber Dimension(mm)	1840*1030	1840*1260	1840*1540	1840*1840	1840*2040
Overall Dimension(L*W*H)(mm)	2600*2450*2160	2600*2450*2160	2600*2750*2160	2600*3250*2160	2600*3250*2160
Weight(kg)	6000	7200	8500	9500	11000

More Products

Company Profile

FAQ

1.What information shall I provide when I request for quotation?
Information should be including parameters or technical requirements, such as: processing materials, output size, capacity, etc.
2. Are you trading company or manufacturer?
We are ISO9001 certified manufacturer focus on fabricating solide waste recycling machine since 1995, address: No.3 Geely Avenue, Toumengang New Street, Linhai, Taizhou 317000, Zhejiang China.
3. What kind of products do you offer?
We have four main categories of products, shredder, plastic crusher, plastic recycling and washing line, plastic granulator andauxiliary equipment.
4.What are the applications of these products?
Our products are wildly used in shredding and crushing of plastic woven bags, plastic film, PA/PC plastic block, household appliance shells and inner tanks, plastic pipes, plastic containers, wastepaper, straw, wood, urban household garbage, medical waste, electronic waste and waste metal, etc. And waste plastic recycling and washing and plastic granulation.
5. Do you support product customization?
Yes, not only we provide customized service but also provide solutions to our customer.
