50L Agricultural Sprayers China Agriculture Sprayer Drone Uav Supplier Wholesale Professional 4-Axis ODM Custom Fumigation Crop Spraying Drone

Product Description

Product Description

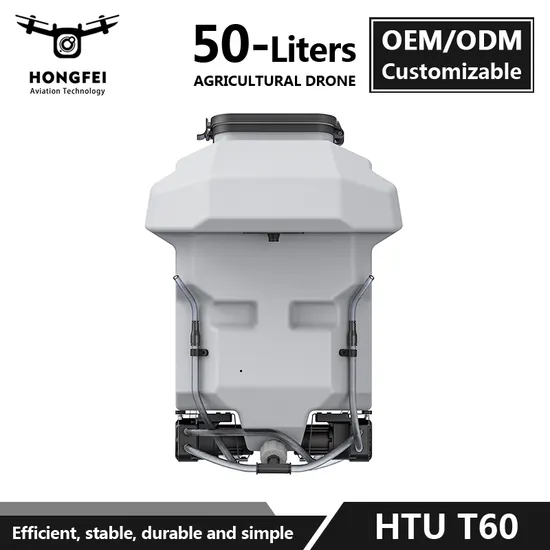

HTU T60 Intelligent Drone HTU T60 Agricultural Drone: Operational efficiency is fully optimized, with a maximum load of 60kg, a spraying tank of 50L and a spreading tank of 76L.
Two types of spreaders are available to meet different needs. Fruit tree mode is added, which makes the operation easier in mountainous areas. A brand new experience, easy to manage the time of farmland labor.

Wheelbase	2200mm	Spreader Tank Capacity	76L (Max. Payload 60KG)
Overall Dimensions	Spraying Mode: 2960*1705*840mm	Spreading Mode 1	SP4 Air-Blown Spreader
	Spreading Mode: 2960*1705*855mm	Feeding Speed	100KG/min (For Compound Fertilizer)
Drone Weight	39.7KG	Spreading Mode 2	SP5 Centrifugal Spreader
Water Tank Capacity	50L	Feeding Speed	200KG/min (For Compound Fertilizer)
Spraying Type	Wind Pressure Centrifugal Nozzle	Spreading Width	5-7m
Spraying Width	6-10m	Battery Capacity	20000mAh*2 (53.2V)
Max. Flow Rate	5L/min (Single Nozzle)	Charging Time	About 12mins
Droplet Size	50μm-500μm	Battery Life	1000 Cycles

Product Features
Four Wind Pressure Centrifugal Nozzles
Innovative wind pressure centrifugal nozzles, fine and uniform atomization; 50 - 500μm adjustable droplet size; Large flow, flow rate up to 20L/min; Newly upgraded dual-channel high-flow metering pump; Precise control of liquids, less waste.

Spreading Solution
Optional Air-Blowing Mode or Centrifugal Mode.

Option 1: SP4 Air-Blowing Spreader	Option 2: SP5 Centrifugal Spreader
- 6 channel air-jet spreading - No harm to seeds and drone body - Uniform spreading, 100kg/min feeding speed - Powdered materials supported - High-precision, low-dosage scenarios applicable	- Dual-roller material discharging, efficient & accurate - Strong spreading power - 8m adjustable spreading width achievable - 200kg/min feeding speed - Suitable for large fields and high-efficiency operations

Orchard Mode: Easy Operation for All Terrains
3D + AI identification, precise 3D flight routes; Rapid mapping, intelligent flight planning; One-click upload, fast operations; Suitable for complex environments like mountains, hills, orchards, etc.
Intelligent Flight Route, Accurate & Flexible
Auxiliary point mapping, smart breakpoint, flexible flight; Night mode supported, full-time operation; Newly upgraded radar; Autonomous recognition of slope changes, dynamic detection of targets.

Dual-Battery System, Active Heat Dissipation
Two external 20Ah batteries, extended flight time; Lower operational temperature through wind fields; 9000W dual-channel air-cooling charger ensures fast charging and continuous operations.

Charger		Secondary Lithium-ion Battery Pack
Input Voltage	AC 220V-240V	Voltage	53.2V
Input Voltage Frequency	50/60Hz	Capacity	20000mAh
Output Voltage	DC 61.0V (Max)	Discharge Rate	8C
Output Current	165A (Max)	Charging Rate	5C
Output Power	9000W (Max)	Protection Level	IP56
Number of Channels	Dual Channel	Battery Life	1000 Cycles
Weight	20KG	Weight	About 7.8KG
Size	430*320*300mm	Size	139*240*316mm

Product Photos

Application Scenarios
HTU T60 is widely used in large fields, farms, orchards, breeding ponds and other areas.
Packaging & Shipping

Production, assembly	Testing	Packaging (customized boxing method available)	Loading and shipping

Company Profile
Hongfei Aviation Technology Co., Ltd.
Is Established in 2003, with a factory in Anhui, China and a stable team of highly skilled employees, we are a professional UAV operation solution provider.
Our products have passed ISO certification and CE certification, and we have several patent certificates. We are committed to providing professional solutions for our partners in the drone industry and creating a complete supply chain of drone products.

Strength	Service	Quality	Certificates
Years of operation, with rich manufacturing and sales experience. ·Support OEM/ODM ·Independent factory ·With professional R&D team ·Possess many patents ·One of the leading drone manufacturers in China	Quality service to meet your needs. ·Perfect pre-sales and after-sales service ·According to the application industry, we can match the best solution for you ·Focus on customer feedback, timely and effective solution to customer problems	Professional production system to ensure the quality of each product. ·Passed ISO9001 international quality system certification ·Controlling the details, to ensure that each detail of the product delivery	Received several certifications. ·20 invention patents ·15 utility model patents ·23 software copyrights ·1 appearance patent

FAQ
1.What is the best price for your product?
We will quote based on the quantity of your order, the higher the quantity the higher the discount.
2.What is the minimum order quantity?
Our minimum order quantity is 1 unit, but of course there is no limit to the number of units we can purchase.
3.How long is the delivery time of the products?
According to the production order dispatch situation, generally 7-20 days.
4.What is your payment method?
Wire transfer, 50% deposit before production, 50% balance before delivery.
5.What is your warranty time? What is the warranty?
General UAV frame and software warranty of 1 year, the warranty of wearing parts for 3 months.
