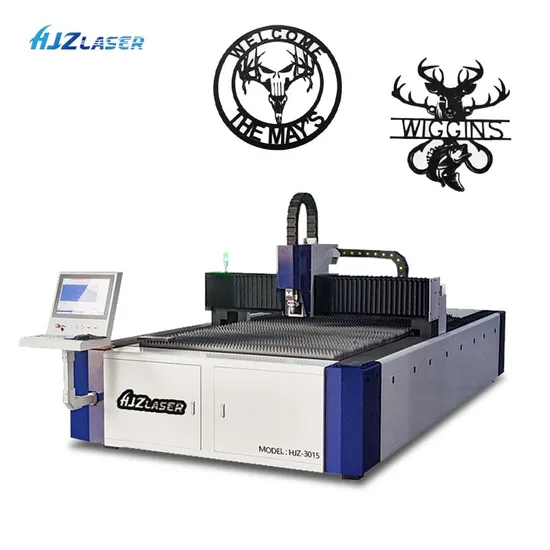

3015 CNC Stainless Steel Aluminium Metal Laser Cutter Flat Fiber Sheet Cutting Machine for Metal Carbon Steel Stainless Steel Sheet Tube Plate Pipe Cutting
| US$9,980.00-15,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HJZ-1000-3015
Application
Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Advertising Industry
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Gantry Type
Laser Classification
Semiconductor Laser
Laser Technology
Laser Fusion Cutting
Linear Guide
Hiwin
Certification
CE, ISO 9001:2000
Power Supply
380V/50Hz/60Hz
Laser Source
Ipg/Raycus
Laser Type
Fiber Laser
Working Area
1500*3000mm
Laser Cutting Head
Raytools
Processing Technology
Annealing and Abrasive Blasting
Control System
Cypcut
Cutting Material
Metal
Export Packing
Standard Plywood Packing
Cooling
Water Cooling
Watt
1kw 2kw 3kw
Name
Low Cost Laser Cutter
Transport Package
Standard Plywood Packing for Export
Specification
1000W, 2000W
Trademark
HJZ LASER
Origin
Wuhan, China
HS Code
8456110090
Production Capacity
500sets/Month
Product Description
High power 1000W 1500W 2000W 3000w 6000w 10000w fast professional iron sheet fiber laser metal cutter
Standard Configuration of Fiber laser cutting machine: German IPG Fiber laser source; Japan YASKAWA Servo motor with double ball screw driving sytem Imported World Famous "Lasermech" laser head with auto focusing height follower Automatic Lubrication System for Mechanic Taiwan "Hiwin" Ball Screw Rod Laser Moving Control Card Red Light Pointer US imported Focus Lens Japan SMC Gas system Imported Germany Reducer
Technical Data :
| 1 | Machine Name | Metal Plate Fiber laser cutting machine |
| 2 | Model | HJZ- 1000-3015 |
| 3 | Laser machine cutting area | 3000x1500mm |
| 4 | Fiber Laser Power | 500w/750w/1000/1500/2200/3300/4000/6000/8000/12000/25000W |
| 5 | Laser wave length | 1064nm |
| 6 | Transmission system | Gear + rails (we have standard brand,we can also produce as your requirements) |
| 7 | X.Y axis location accuracy | ±0.01mm |
| 8 | X.Y axis repeat location accuracy | ±0.01mm |
| 9 | X.Y axis max moving speed | 30m/min |
| 10 | Max cutting speed | 1--30m/min(it will according to metal material and laser power) |
| 11 | Cutting thickness | Detailed in the following cutting thickness |
| 12 | Application Material | Metal sheet Iron/CS/SS/Aluminum/Copper and all kinds metal |
| 13 | Advantages | >Excellent beam quality >Simple , compact, electrically and optically efficient >Compatibly powerful and reliable >Maintenance free >multilingual, more than 11 foreign languages >3 years warranty . |
| 14 | Gross weight | 4000KG |
| 15 | Net weight | 3800KG |
| 16 | Machine size | 4800*2600*1860mm |
Warranty & Service
Training can be processed in the following ways:
1) Workers of customers can come to our factory in Wuhan, China to get the most professional hand-by-hand training.
2) We can send engineers to customers' country and do training for workers in customers' target factory. However, tickets and daily consumption like food and accommodation should be afforded by customers.
3) Remote training through Internet tools like Team-viewer, Skype and other instant communication software.
Guarantee:
We offer free Two-year warranty and durable maintenance&repair support for the purchased machines. Within the warranty time, we are responsible for the cost-free repair once the equipment fail or the machines break down(except human factor and force majeure causes) and we shall offer the replacement parts for free(except consumed parts). During the non-warranty time, we just charge the flat cost based on actual cost of repair.
WuHan HJZ Laser Technology co. Ltd.
