Durable Anti-Corrosion Electric Cabinet Lock for Outdoor Parcel Lockers

Product Description

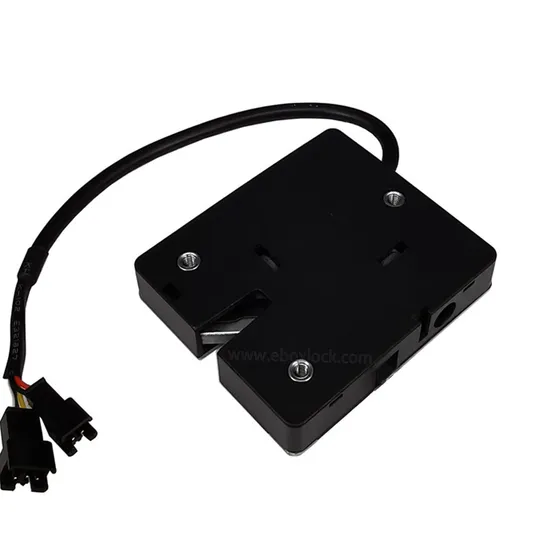

Durable Anti-Corrosion Electric Cabinet Lock DJ7-S is a compact electromechanical lock with concealed mechanism rated IP67, it is ideal for outdoor cabinets, drawers and lockers.
Surface mounting either vertically or horizontally offers easy and flexible installation. The cabinet lock is compatible with any existing access control system or simply controlled through a remote keypad or key switch. The cabinet lock allows mechanical override for emergency open.
Features
Available in 12VDC or 24VDC Tough metal/ABS construction, stainless steel option Water proof concealed mechanism Optional internal microswitch for latch open/close output signal Optional door sensor Convenient mechanical override enables manual release during power failure Three-bolt regular triangle mounting enables high security and low install cost Accepts access control signals from wireless RF key fobs or proximity cards, numeric keypads, card readers, Can be fitted to outdoor locker, mail box and drawers etc
Specifications

Operation Voltage:	12/24VDC intermittent ±10%
Power Consumption:	12V DC 1500mA
Max. power on:	Less than 1 second
Operation Mode:	Fail Locked
Holding Force:	150KG
Cycle Rating:	More than 1,000,000
Working Temperature:	-20ºC ~ +60ºC
Dimensions LxWxH:	72mm*62.5mm*14mm
Protection Class:	IP67

Available options:
Extension cable with a variety of connectors
Plated-steel and stainless steel outer casing options
Mechanical override option for manual unlock in case of power failure
Rear or front mount mechanical override options
Optional push to open strength
Built-in microswitch for door open/close output signal
Able to add customer's Model No. And logo
Able to customize cable and connectors for customer

Options for customization
Voltage	Current	Trigger Spring	Mounting holes	Material	Cable	Connector
9V 12VDC 24VDC 48V	1500mA 2000mA	10N 25N 35N	M5 thread(standard) Ø5.5 thru (Optional)	Steel Stainless steel	Twisted RVV Flat cable	Molex KF2510 pH RJ11
We can offer customized samples maximum 10PCS. MOQ of batch order for customization: 500PCS.

Applications
The electronic cabinet lock is ideal for various applications as following:
Electronic lockers for storage or delivery
Steel cabinet or metal furniture
Retail display cases and drawers
Filing cabinet
Utility cabinets and drawers
Key cabinet
Museum or retail product display cases
Pharmaceutical cabinets and drawers
Electronic mailbox and lock box
About US
Dajiang is a designer and manufacturer specializing electrified locking solutions for lockers, cabinets and kiosks. No matter size-restricted enclosures or heavy-doored metal cabinets; we can meet your particular security requirement with customized design for your applications.
Our ranges cover electronic cabinet locks, electronic drawer locks, smart parcel locker control system, vending machine control system, and IOT control hardware and software. With professional security control solution, Dajiang locks and controllers is ideal for areas of parcel locker, smart lockers, vending lockers, cash drawers; post mailboxes; medicine and archive cabinets; Key Cabinets and mailbox.
Quality control melts into the whole process and our products are completed under continuous supervise and multistage of tests. We are very proud of our product and service. We are confident you will enjoy the experience with us and appreciate all opportunity to answer any questions or provide any further information.
