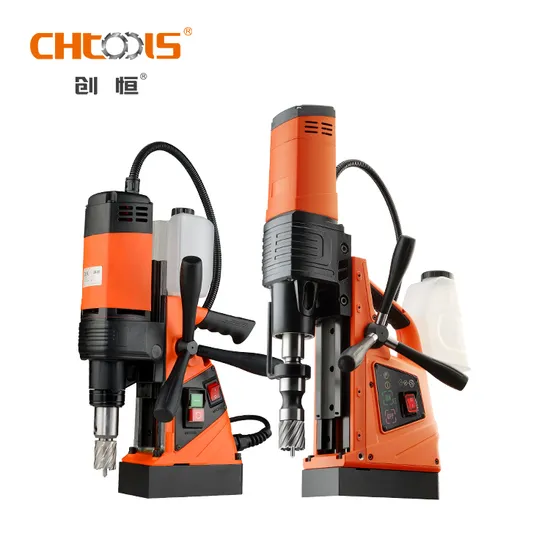

Chtools Annular Cutter with 450rpm Drills Magnetic Drill Machine

Chtools Annular Cutter with 450rpm Drills Magnetic Drill Machine

US$290.00-310.00 1 Piece (MOQ)

Basic Info.

Model NO.
DX-35
Structure
Deep Hole Drilling
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
Other
Hole Diameter
35mm
Automatic Grade
Manual
Precision
High Precision
Certification
CE, ISO 9001, ISO4001
Condition
New
Magnetic Adhesion
10000n
Tool Holder
19.05mm
Stroke
120mm
Magnetic Base Size
167*84*44mm
Input Power
1100W
The Max Cutting Depth
50mm
The Max Cutter Capacity
35mm
Countersunk Drilling
10-35mm
The Min Cutter Depth
10mm
Load Speed
450rpm
Transport Package
Plastic Box
Specification
55*22*45cm
Trademark
CHTOOLS
Origin
China(Mainland)Zhejiang
HS Code
8459290000
Production Capacity
10000sets/Month

Product Description

Product Type
DX-35
Stroke
120mm
Magnetic base bize
167*84*44mm
Input power
1100W
The max cutting depth
50mm (2")
The max cutter capacity diameter
35mm (1-3/8")
Motor can adjust the height to
95mm
The max diameter of twist drill
13mm
The min cutter depth
10mm
Magnetic adhesion
10000N
The type of shank
19.05mm (3/4")
Total weight
15.4kg
Load speed
450rpm
Countersunk drilling
10-35mm

Zhejiang Xinxing Tools Co., Ltd. established in 1992, is a manufacturer concentrating on R&D and manufacture of cutting tools with high-performance. Drafting unit for Chinese industrial standard of annular cutter.
Our products include high efficiency energy saving annular cutter series that won the single industry
champion, and rail cutter, hole saw, and self-developed magnetic drilling machine series.
In addition, a series of high-precision tools, spade drill, BTA deep hole drill, S drills, and milling cutter have been added.
The company has modern production lines, including internationally-known numerical control machine tool, full-automatic CNC machine tool, heat treatment production line, strong production capacity, From raw material testing, blanking, rough processing, heat treatment, finishing processing to finished product inspection and testing, and all the production processes are completed by our own factory. For you, which means: The most reliable products supply and the fastest delivery time.
After many years of technological innovation and development, the company has more than 110 core independent intellectual property rights patents, including 10 invention patents. The company implements a strict quality management system and has successively passed the ISO9001 quality system certification and the ISO14001 environmental system certification.
In the future, CHTOOLS will devote to become a leading international cutting tool manufacturer, provide you with more effective and better services, become your trusted tool supplier. Production process
