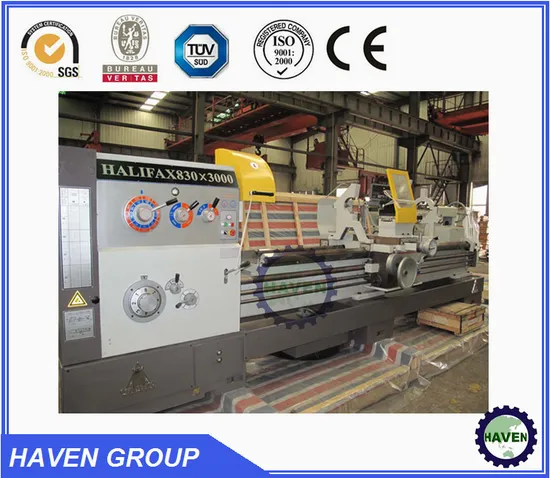

CW6273C/3000 CE Standard Horizontal Lathe Machine
| US$99.00-99,999.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CW6273C/3000
Tool Holder
4 station tools
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
max. swing diameter
730mm
max. workpiece length
3000mm
spindle bore diameter
105mm or 130mm
Transport Package
Wooden Pallet
Specification
CW6273C/3000
Trademark
HAVEN
Origin
China
HS Code
846694
Production Capacity
50 Units Per Month
Product Description
CW6273C/3000 CE Standard Horizontal Lathe MachineMain Features:
This series horizontal lathe has good reputation in this line and populated by customers in domestic and abroad. It including: CW663C, CW6 73C,CW683C, CW693C, ect. Distance between centers are 1000mm,1500mm,2000mm,3000mm,4500mm,6000mm.
Main Specifications:
| Model | Unit | CW6163C CW6263C | CW6173C CW6273C | CW6183C CW6283C | CW6193C CW6293C | |
| Swing over bed | mm | 630 | 730 | 830 | 930 | |
| Swing in gap | mm | 800 | 900 | 1000 | 1100 | |
| Swing over cross slide | mm | 350 | 450 | 550 | 650 | |
| Distance between centers | mm | 750,1000,1500,2000,3000,4500,6000 | ||||
| Length in gap from face plate | mm | 300 | ||||
| Spindle nose | Cll or D11 | |||||
| Spindle bore | mm | 105,130 | ||||
| Spindle speeds | rpm/steps | 10-800/18 | ||||
| Cross slidle travel | mm | 480 | ||||
| Top rest travel | mm | 225 | ||||
| Rapid traverse | mm/min | 3200,1900 | ||||
| Quill diameter | mm | 90 | ||||
| Quill travel | mm | 260 | ||||
| Quill taper | MT5 | |||||
| Bed width | mm | 550 | ||||
| Metric threads | mm/kinds | 1-240/53 | ||||
| Inch threads | tpi/kinds | 30-2/31 | ||||
| Module threads | mm/kinds | 0.25-60/46 | ||||
| Diametral pitch threads | Lpi/kinds | 60-0.5/47 | ||||
| Main motor power | kw | 11 | ||||
| Packing size | Length | mm | 3460,3390,3795,4330,5310,6810,8310 | |||
| Width | mm | 1400 | ||||
| Heigth | mm | 2000 | ||||
