Bottle Machines PVC Styrofoam Film Scrap Plastic Shaft Waste Casing Equipment Crusher
| US$690.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
FTC_180
Type
Hard Plastic Crusher
Raw Material
PVC
Structure
Tangential Feed
Knife Classification
Claw Knife Crusher
Knife Roll
Solid Knife Roller
Automation
Automatic
Computerized
Non-Computerized
Certification
CE, ISO9001:2008, QS, GMP
Shaft Design
Customized
Core Components
Motor, PLC
Dimension(L*W*H)
920mm*610mm*1050mm
Machinery Test Repor
Provided
Voltage
220V/380V/415V/600V or Customized
Transport Package
Strong Package
Trademark
Fante
Origin
China
Product Description

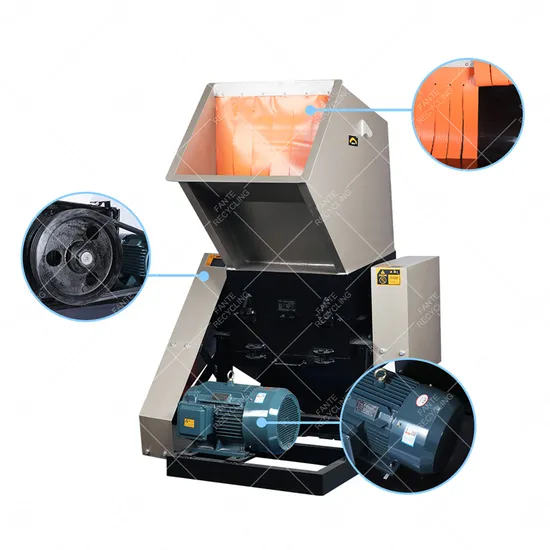

Equipped with advanced cutting blades, the Fante Plastic Crusher ensures precise and efficient shredding, reducing the volume of plastic waste and facilitating the recycling process. Its robust construction and durable components guarantee long-term reliability, making it suitable for both small-scale and large-scale plastic recycling operations.The Fante Plastic Crusher features user-friendly controls and safety mechanisms to ensure smooth operation and operator protection. Its compact design allows for easy installation and maintenance, making it an ideal choice for businesses of all sizes.
| Model | PC-250 | PC-300 | PC-400 | PC-500 |
| Motor Power (kW) | 4 | 4 | 7.5 | 11 |
| Mainshaft Speed (rpm) | 570 | 570 | 570 | 550 |
| Rotating Diameter (mm) | 200 | 200 | 300 | 300 |
| Moving Knife Count pcs | 3 | 3 | 3 | 6 |
| Fixed Knife Count pcs | 2 | 2 | 2 | 2 |
| Feed Port Size (mm) | 310*170 | 370*170 | 500*205 | 610*225 |
| Feed Port Height (mm) | 900 | 930 | 1120 | 1135 |
| Crushing Capacity (kg/h) | 150 | 200 | 300 | 400 |
| Screen Diameter (mm) | Φ8 | Φ8 | Φ10 | Φ10 |
| Weight (kg) | 160 | 185 | 368 | 470 |
| Dimension (mm) | 910*620*1050 | 910*690*1070 | 1120*820*1300 | 1280*930*1330 |
| Model | PC-5060 | PC-5070 | PC-5080 | PC-50100 |
| Motor Power (kW) | 15 | 18.5 | 22 | 30 |
| Moving Knife Count pcs | 6 | 6 | 6 | 6 |
| Fixed Knife Count pcs | 4 | 4 | 4 | 4 |
| Rotating Diameter (mm) | 460 | 460 | 460 | 460 |
| Feed Port Size (mm) | 620*470 | 720*470 | 820*470 | 1000*470 |
| Feed Port Height (mm) | 1410 | 1415 | 1420 | 1500 |
| Screen Diameter (mm) | 14 | 14 | 16 | 16 |
| Crushing Capacity (kg/h) | ≤500 | ≤700 | ≤900 | ≤1000 |
| Weight (kg) | 860 | 980 | 1180 | 1600 |
| Dimension (mm) | 1360*1180*1846 | 1470*1280*1860 | 1520*1380*1880 | 1800*1750*2200 |
