Nanyang Myhr 23.5kw Drying Chamber Machine China Manufacturing Wft-Khg30 Air Energy Wood Kiln Drying Machine for Wood Drying

Product Description

NANYANG MYHR 23.5KW Drying Chamber Machine China Manufacturing WFT-KHG30 Air Energy Wood Kiln Drying Machine For Wood Drying
Product Description

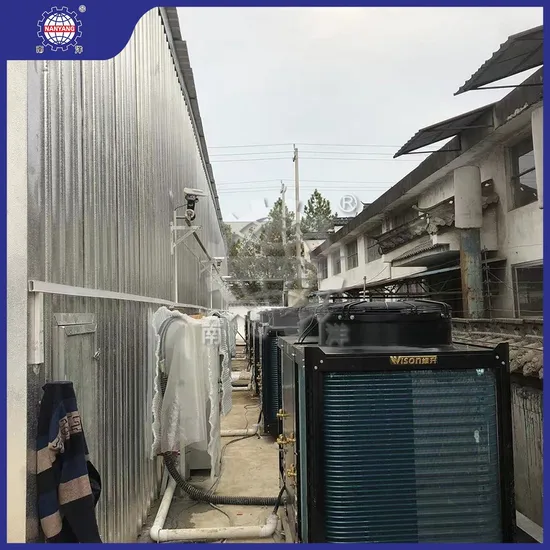

MYHR HEAT PUMP (AIR ENERGY) WOOD DRYING KILN
Nanyang heat pump (air energy) wood drying kiln is a new generation of environmentally friendly and energy-saving drying equipment developed and produced by our company, with technical support from the Guangzhou Institute of Energy, Chinese Academy of Sciences. It uses an air energy heat pump heating method, and
at the same time, it is equipped with electric auxiliary heating in winter and at night to dry and heat treat the wood. According to the reverse Carnot principle, the air energy heat pump unit pressurizes the gas Freon by the compressor and becomes a high-temperature and high-pressure gas that enters the condenser. The refrigerant condenses and liquefies to release high-temperature heat to heat the air in the drying room, achieving the effect of wood drying and heat treatment.
Product Parameters

Product Model	WFT-KHG15	WFT-KHG20	WFT-KHG25	WFT-KHG30
Heating Capacity [KW]	48	64	72	96
Rated Power [KW]	13.4	16.5	22.5	23.5
Rated Current [A]	20.2	24.9	34.8	35.5
Maximum Input Power [KW]	20.1	24.75	28.5	35.25
Maximum Input Current [A]	30.5	37.6	42.8	53.6
Maximum Dehydration Capacity [L/H]	38	58	67.5	84
Optimum Air Outlet Temperature	55	55	55	55
Maximum Air Outlet Temperature	75	75	75	75
Ambient Operating Temperature	-5~43ºC
Power Supply	380V~50Hz
Refrigerant Type	Mixed Condensation
Dimensions (Length * Width * Height) [MM]	1510*810*1545	2100*910*2020	2100*910*2020	2100*910*2020
Main Unit Weight [KG]	360	770	850	850
Main Unit Noise [DB(A)]	≤68	≤72	≤72	≤72

Common Parameter Configuration Table

Scope of Application	Drying Kiln Space	<60	60~100	100~120	120~150	150~180	180~200
Hardwood	Number Of Heat Pump Specifications	15P×1	25P×1	15P×2	20P×2	25P×2	30P×2
	Total Power Of Heat Pump	12	20	24	32	40	48
	Number Of Fans	2	3	4	5	6	8
	Power Of Auxiliary Electric Heating	15~30	30~60	30~60	30~60	30~90	30~90
	Total Installed Capacity	48	89	96	107	148	162
	Maximum Temperature Of Drying Kiln	75
Softwood	Number Of Heat Pump Specifications	20P×1	15P×2	20P×2	25P×2	30P×2	25P×3
	Total Power Of Heat Pump	16	24	32	40	48	60
	Number Of Fans	2	3	4	5	6	8
	Power Of Auxiliary Electric Heating	15~30	30~60	30~60	30~60	30~90	30~90
	Total Installed Capacity	52	93	104	115	156	174
	Maximum Temperature Of Drying Kiln	80

Product Features
1. Energy saving
The system has an energy efficiency of 35%. That is, 1 part of the electricity input can obtain 3.5 parts of heat for wood drying.
2. Environmental protection
The system has zero pollution and zero emission during operation, meets national environmental protection requirements, and replaces boilers.
3. Simple
Easy to install, no special equipment verification is required. Simple operation, no special equipment operation certificate is required, unattended operation is achieved, and labor management costs are greatly reduced.
4. Low operating cost
Due to the high efficiency and energy saving of the heat pump, the cost of wood drying is greatly reduced.
Company Profile
FAQ
Q1. How long does it take to get a reply after we send the inquiry?
A: We will reply to you within 24 hours after receiving the inquiry.
Q2. Are you a direct manufacturer or trading company?
A: Our factory is located in Hangzhou City, Zhejiang Province. You are welcome to visit us.
Q3. What products can I buy from your factory?
A: Our main products are: wood band saws and carriages; wood drying equipment, saw blade sharpening machines; saw blade rolling machines, saw blade welding machines, etc.
Q4. What are the main application areas of your products?
A: Application areas of woodworking band saw machines and Large-scale Vertical Band Saw Carriage: furniture, flooring, wooden boards, building materials, handicrafts, lumber, wood packaging, and other wood products companies.
Application scope of wood drying kiln: furniture, flooring, wooden boards, building materials, handicrafts, wood, wood packaging, and other wood products enterprises.
Q5. Do you accept OEM and ODM custom orders?
A: We accept drawings to customize your products, and we have a professional R&D team.
Q6. How does your company ensure product quality?
A: We will have corresponding tests after each process is completed. For the final product, we will do a 100% comprehensive inspection according to customer requirements and industry standards.
Q7. What payment method?
A: When quoting, we will confirm the transaction method to you, FOB, CIF, CNF, or other methods. Generally, customers pay 30% in advance, and the balance is paid before factory shipment. We mostly pay by T/T, of course, L/C is acceptable.
