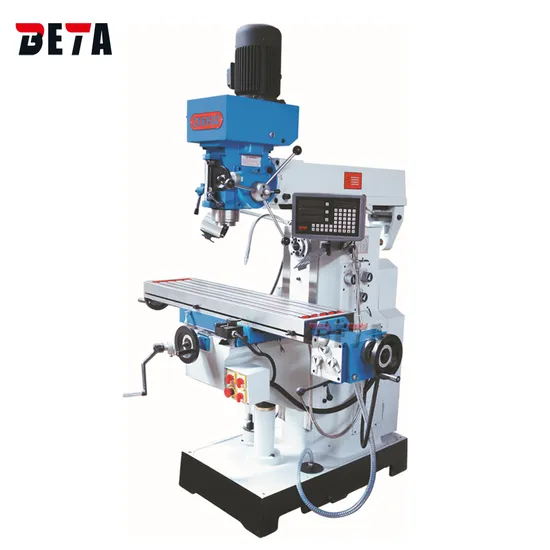

High Precision Drilling and Milling Machine Zx6350z
Basic Info.
Model NO.
ZX6350Z
Type
Worktable Milling Machine
Object
Tool
Structure
Lifts
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Drilling Milling Machine for Metal
Model
Zx6350z
Control
One Servo Motor Control X/Y/Z
Cross Travel
270mm
Vertical Travel
360mm
Delivery Time
3 Months
Warranty Time
12 Months
Table Size
280X1120mm
Spindle Travel
120mm
Transport Package
Wooden Case
Specification
ZX6350Z
Trademark
BETA
Origin
Shandong, China
Production Capacity
30 Sets Per Month
Packaging & Delivery
Package Size
170.00cm * 136.00cm * 224.00cm
Package Gross Weight
1450.000kg
Product Description
High Precision Drilling And Milling Machine ZX6350Z| Model | Unit | ZX6350Z |
| Table size | mm | 280x1120/280x1270 |
| Longitudinal travel | mm | 600/750 |
| Cross travel | mm | 270 |
| Vertical travel | mm | 360 |
| T-slot No. and size | - | 3x16 5x14 |
| Distance spindle axis and column surface | mm | 230-630 |
| Distane spindle nose to table surface | mm | 120-480 |
| Spindle taper | - | ISO40/ISO30/R8/MT4 |
| Spindle travel | mm | 120 |
| Spindle speed range(50HZ/60HZ) | rpm | 90-2000/108-2400(V) |
| rpm | 40-1300/48-1560(H) | |
| Spindle motor power | kw | 2.2 (V) 2.2(H) |
| Head swivel | degree | ±45° |
| Packing size | mm | 1700x1360x2240 |
| N.W./G.W. | kg | 1350/1450 |
TENGZHOU BETA CO.,LTD. is a highly reputed professional Machine Tool manufacturer and exporter in CHINA. We focus on complete seals solution include seal making CNC machine, seal processing software, seal materials and cutting tools, the annual output quantity up to more than 1000 units.
Having focused on international market. We have placed the priority on both machines' quality and service. All machines will thoroughly follow every stage during manufacturing, assembling, final testing, packing and shipping, we promise that every provided machine will be strictly tested and be ready to operate before delivery.
