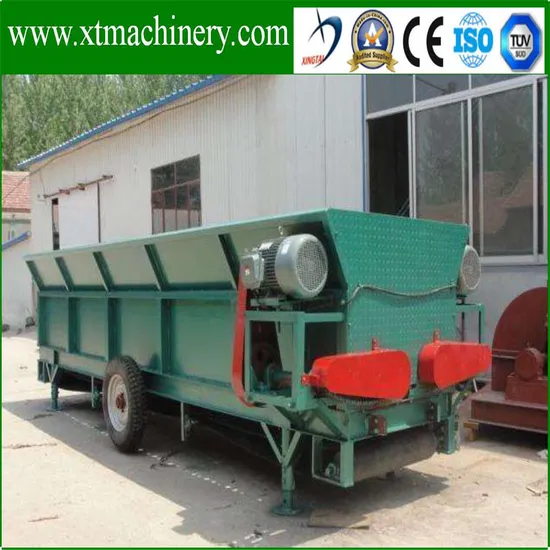

Double Roller/Single Roller Tree Trunk, Log Wood Debarker for Paper Making

Product Description

Working principle of wood debarker:
1.Peeling machine adopts an open hopper, which can be supplied from one head to the other, and the other is out of material. It overcomes the shortcoming of the existing roller type peeling machine.
2.Because of the impact of the teeth on the wood section of the wood peeling machine, not only is the wood segment circulated in the shell, and it revolves around itself, so the peeling machine has a high efficiency, and the eucalyptus and poplar trees have a better peeling effect, and the net degree is more than 95%
3.The wood peeling machine has a strong adaptability to wood. It can peel off the length and shape of different tree species, diameter, and the shape of the wood removing machine. The concave part of the bend wood section can also be in good contact with the peeling teeth because of the rotary motion and irregular beating of the wood section. Therefore, the stripping rate of bending logs is much higher than that of other drum types.
4.The wood peeling machine is fixed because of the large machine shell, so the energy consumption is small, the failure rate is low, the maintenance work is small, the vibration and noise are much lower than that of the roller peeling machine. The wood removing machine can be produced by the machine landing machine, even without the installation of the base, it is convenient to use.
Feature of Wood peeling/debarker:
1.Using four point tool, easy to use, low cost.
2.Voltage controlled by the hydraulic cutter, advanced structure, reliable performance.
3.Continuously variable feeding mechanism of frozen material, bent wood, eucalyptus, oak, elm and other trees with good hard peeling peeling effect.
4.High cleanliness, high productivity, and little damage to wood

Model	XT-P6		XT-P9		XT-P12
Roll number(pcs)	1	2	1	2	1	2
Power(kw)	7.5	7.5*2	15	15*2	30	30*2
Rotate speed(r/min)	160		160		160
capacity(t/h)	5-10	7-15	7-15	15-25	15-25	25-35
Dimension(m)	6.3*1.31*1.55	6.3*1.31*1.55	9*1.5*1.7	9*1.5*1.7	12.6*1.6*1.7	12.6*1.6*1.7
Weight(t)	1.4	2.3	2.5	3.5	4.2	5.5
