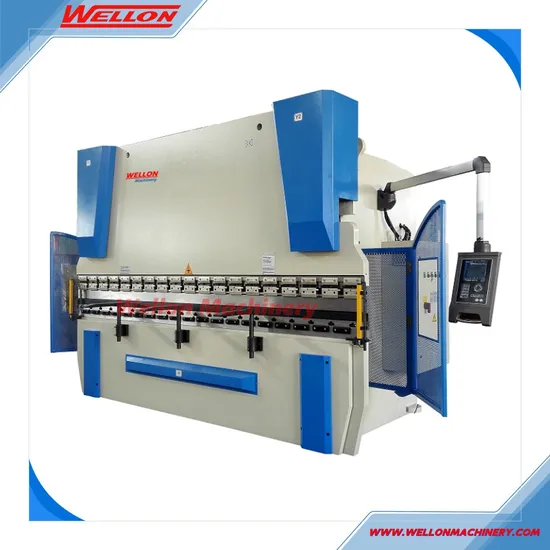

Da53t 4+1 Axis CNC Press Brake Machine 40t Hydraulic Bending Machine

Product Description

Detailed Photos Product DescriptionDA53T 4+1 axis CNC press brake machine 40T hydraulic bending machine
Product Description Performence Features:
1. Whose structure:
Totally European streamlined design,Monoblock welded steel frame rigid & Heat Treated.
Our machine designed according to the most modern design and performances point of view.
The machines are designed by experienced engineers using FEM & DOE analysis techniques.
2.The machine production and processing
Engineers utilize parametric 2D Pro/Engineer as well as static and mechanism analysis.
The CNC Press Brake is equipped with the patented Reflex proportional frame deflection
compensation system.
Automatic tonnage and stroke adjustment for bending angles with easy angle input and operation of machine.
The sheet metal bending process for near silent working (63dB). Full conformity with EC Machinery Directive
for safety and NR-12, NR-13.
80% less oil volume and less frequent oil changes. Moreover there is no need to change oil at least 5 years.
From a design standard (ABNT, ISO, IEC, CE) feature robust, next-generation automation;
Provides CNC control of standard 4+ 1 axis with Y1+ Y2 + X +R+V-axis Crowning(RPS-0).
3. Electrial system:
Electrical Cabinet under the standard of IP65, Electrical under international CE Standard, safe and reliable, strong anti interference capability..
Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
Front Side Covers with safety switches, Back light safety guards (Category-4) ,Foot pedal conforming to CE regulation.
4. Hydraulic System:
A complete electrolyte servo synchro CNC controlled press brake.Close loop electro-hydraulic servo-control system,the most advanced.
Hydraulic system is from Bosch,Germany,a full loop electric-hydraulic proportional servo control By Bosch - Rexroth from Germany.
All seals in cylinder is PARKER from USA,Being able to work under rated load continuously,stable working and high precision.
The hydraulic system is made in compliance with current regulations (Directive 98/37 EC).
5. Synchro control system:
PRESS BRAKE have a perfect bending accuracy thanks to the HEIDENHAIN optical lines. Y1+Y2 axis in a
tolerance of ±0.01 mm
Full electronic synchronisation with proportional valve technology assuring maximum bend accuracy and
repeatability through constant monitoring and correction of beam parallelism by CNC system.
The system is designed to allow for the programming of Ram tilting Y1,Y2 be programmed separately,can bend
cone-shape work piece.
6.V-axis Crowning System:
The CT12 series cnc press brake is equipped with the active crowning system , simply one of the best crowning system on the market.
No matter how you act your crowning system (villa Mechanical or hydraulic crowning) the key is how you manage your crowning system.
ACSG simply does the job: ACSG bends the lower beam following in real time the bending of the ram no matter what, where and how you bend.
ACSG guarantees a constant bending angle, all over the length of the bending line, without any alignment or correction by the operator.
The heart of the ACSG are the crowning pistons driven by the real time information about the deformation of the ram.

Item	WE67K-40/2000	WE67K-40/2200	WE67K-40/2500
Nominal Pressure(KN)	400	400	400
Length of Working Table (mm)	2000	2200	2500
Distance Between two columns(mm)	1800	1800	2000
Throat Depth (mm)	250	250	250
Ram stroke(mm)	100	100	100
Motor power(kw)	4	4	4

Main Configuration

No.	Components	World Famous Brand
1	Control System	DA53T 4+1 aixs
2	Electrical Components	Schneider Electrical from France
3	Main Motor	Siemens from Germany
4	Hydraulic System	Bosch-Rexroth from Germany
5	Hydraulic Pump	Sunny from USA
6	Ball screw/ Liner guide	From Taiwan
7	Foot switch	KACON from South Korea
8	Travel switch	Schneider Electrical from France
9	Tubing connector	EMB from Germany
10	Mechanical Crowning system	From Weili
11	SEAL/ GUIDE RING	PARKER from USA
12	Servo motor	INOVANCE
13	Grating ruler	GIVI from Italy

Standard Accessories Back side
Ball screw and Liner Guide from HIWIN Taiwan
Quick Clamp
Standard Mold
Hydraulic Pump from Sunny USA
Valve From Rexroth Germany
Electrical Cabinet
Siemens Motor
DA53T Controller
Schneider Electrical
Mechanical Crowing
Foot Switch
