Product Description

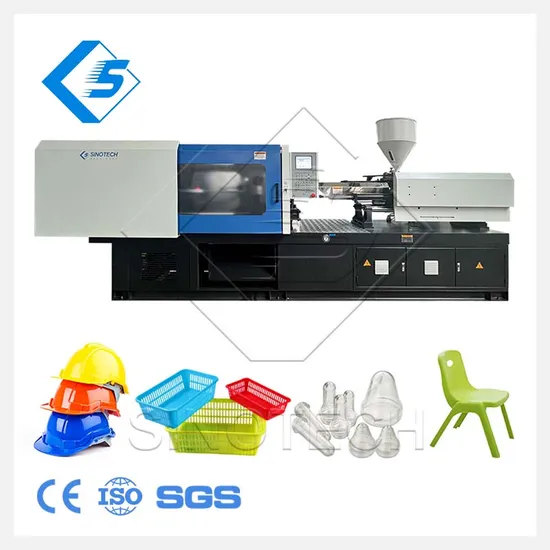

Plastic Chair Making Machine/ Injection Moulding Machine
Product Description
SINO-TECH ST-480A injection molding machine is designed for plastic dustbin, chairs, car bump pallet etc. It is with demoulding linkage which shorten the plastic parts cycle time. ST-480A with high speed, stable performance and it is energy-saving. Our customers can get higher production with same labor and cost.
Main Features1. 30% higher energy saving than using traditional variable pump.
2. Stable and smooth movement supported by AC servo motor.
3.Effective reduction of energy consumption due to reduced oil.and cooling water attained by hydraulic system.
4. High performance European B&R control system.
We are professional plastic injection molding machine manufacturer for all kinds of plastic products, Clamping force from 70 to 1600Ton, injection weight from 50 to 10000g. Also we have CE and ISO certification.
Product Parameters

ITEM	UNIT	ST-480A
INJECTION UNIT
SCREW DIAMETER	mm	70	75	80
SCREW L/D RATIO	L/D	22.6	21	19.7
THEORETICAL SHOT VOLUME	cm³	1346	1545	1785
SHOT WEIGHT99(PS)	g	1225	1406	1600
INJECTION PRESSURE	Mpa	201	175	154
THEORETICAINIECTION RATE(PS)	G/s	370	423	484
PLASTICISING CAPACITY	G/s	6.04	71.4	83.7
SCREW TORQUE	N.m	3490
MAX.SCREW ROTATE SPEED	R/min	150
INJECTION STROKE	mm	350
CLAMPING UNIT
MAX.CLAMPING FORCE	KN	480
MAX.OPENING STROKE	mm	770
SPACE BETWEEN TIE BARS	mm	760*760
MOULD HEIGHT	mm	280-790
MAX DAYLIGHT	mm	1560
EJECTOR FORCE	KN	113.4
EJECTOR STROKE	mm	195
EJECTOR QUANTITY		13
OTHER
PUMP MOTOR POWER	KW	45
PUMP PRESSURE	MPa	16
HEATING POWER	KW	28
HEATING ZONE		5
SIZE	m	7.5*2.1*2.45
NET WEIGHT	t	20
OIL TANK CAPACITY	L	850
INTERNATIONAL DESIGNATION		4800-2710

Detailed Photos
01 Clamping Unit
- Extra durability achieved through optimised clamping structure
- Optimised platen design to disperse stress
- Accurate pause and smooth and speedy movement supported by strengthenedtoggle
- High pressure lubrication system adopted in clamping unit to support machine protection during high speed productior
-The toggle's special heat-treated steel case enables higher wear resistance -High-rigidity frame supports smooth movementugh optimised clamping structure
-Optimised platen design to disperse stress
- Accurate pause and smooth and speedy movement supported by strengthened toggle
- High pressure lubrication system adopted in clamping unit to support machine protection during high speed production
- The toggle's special heat-treated steel caseenables highe wear resistance -High-rigidity frame supports smooth movement
02-Injection Unit
-Newly optimised injection unit design to enable various production needs
-Diagonally located cylinders to facilitate better stress distribution
-Linear quide rail significantly reduces mechanical wear and tear

03 Hydraulic System
- Efficient and stable servo hydraulic system
- Minimised energy loss attained through the advanced hydraulic pipeline design
- Low-noise

S09 Smart Control System
- High performance European B&Rcontrol system -10.4TFT colour LCD display - Users can identify the changes of parameter and sources of the changes
- Parameter data statistics for quality control -Auto control of temperature by PID - Mould parameter can be stored in USB devices and used in another injection moulding machine
- Remote motoring of parameter and operation sequence byMODEM or Ethernet -Multi-language selection
Application

Company Profile
Certifications
FAQ
Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video. Q: How can we get the exact price of plastic machine? Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation. Q: Do you provide any spare parts with machine? Yes, we offer all necessary spare parts before shipment.(contact us for packing list ) Q: How about your after-sale service ? We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist. Q: What is the lead time? For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.) Q: What is the warranty period for your machine ? 12 months warranty for components and technical support . Q: Do you provide custom machines? Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs. Q: How can we install the machine when it arrives? We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees. Q: What's the advantage of SINOTECH? We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.
