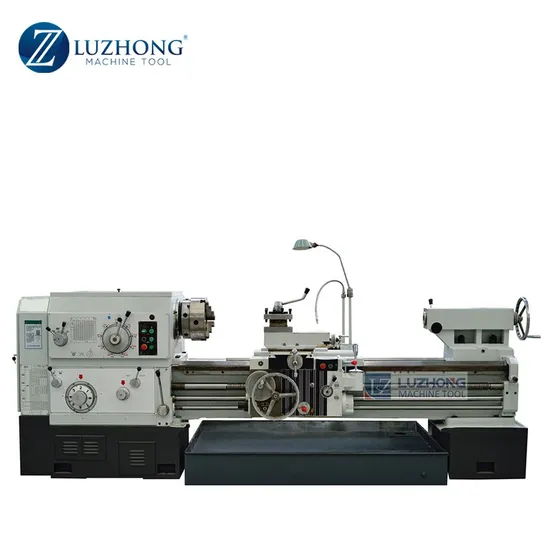

Horizontal Metal lathe machine CW61100L CW61125L heavy manual lathe machine

Product Description

Horizontal Metal Lathe Machine CW61100L CW61125L Heavy Manual Lathe Machine
Product Description
Product main features and uses:
1. This machine can undertake a variety of turning work piece, it can turning the various parts of the outer circle, inner hole, end and metric thread, Whitworth, module thread and pitch diameter of the thread forming surface; in addition, you can also meet drilling, every hole, sets and other materials process requirements. It can also be used in hard cutting tool for powerful cutting, processing a variety of ferrous and non-ferrous metals.
2. The machine has the advantages of high power, high speed, low noise, strong rigidity, high precision and good accuracy. It also has the advantages of easy operation, flexible operation, convenient operation, safe and reliable. In addition, the machine tool used in the production of brand-name manufacturers of AC frequency conversion speed control device, the four gear step less speed control, in the original ordinary lathe based on the increase of the working accuracy, stable and reliable.
3. This machine tool is driven by AC variable frequency speed regulation motor. After sliding gear, I realized that I, II, III, IV four gear shift frequency conversion speed control, which has good torque characteristics and functional characteristics, and the sliding plate has the advantages of fast movement and convenient operation.
4. Size precision machined parts in the machine tool to achieve of IT7 level surface roughness up Ra3.2.It has the following characteristics:
1)Bed large width sidewall double tendons, the inner ribs board using the box-shaped and oblique tendon composite structures, and overall high rigidity.
2)Manipulation concentrated slipped board has fast transfer institutions, with a single handle visualize manipulation.
3)Lathe structural stiffness and transmission stiffness, high accuracy and stability, and powerful cutting.
4)Bed rail with VHF hardening ,movement, light and flexible, long service life, improve the machining accuracy.
5)Overall appearance, easy to wipe and maintenance. Product Parameters
Product main technical specification:

Item	Specification	Units	CW61100L	CW61125L
Machining range	Max. swing over bed	mm	1000	125014001600
	Max. swing over cross slid	mm	600	85010001200
	Max. turning length	mm	1500-12000
	Bed width	mm	755
	Max. work piece weight	T	6T(8T)
Spindle	Spindle nose code		A2-15
	Diameter of the spindle	mm	130(145)
	Spindle inside taper	mm	Metric140 1:20
	Range of spindle speeds	r/min	4-330
	Spindle speed series		four step variable speed
Feeding system	Longitudinal and transverse feeding number range	mm/r	56;0.05-6.0
	Screw pitch	mm	12
	Number range of the thread under Metric system	mm	44;1-120
	Number range of the thread under British system	mm	40;30-1/2
	Number range of the module thread	mm	46;M0.5-M60
	Number range of the diametric pitch	mm	48 30-1/2
	Slide fast moving speed	mm/min	3750
Knife rest	Max. cross travel of turret	mm	650
	Max. travel of compound slide	mm	250
	Length of section of knife handle	mm	45*45
Tailstock	Sleeve diameter of tailstock	mm	160
	Sleeve trip of tailstock	mm	300
	Cone hole taper tailstock's sleeve	Morse	Morse6#
	Main motor power	KW	22KW(30KW)
Machine appearance	L*W*H	mm	6200*1900*1800(3m)
Size, weight	Net weight	kg	13000(3m)
