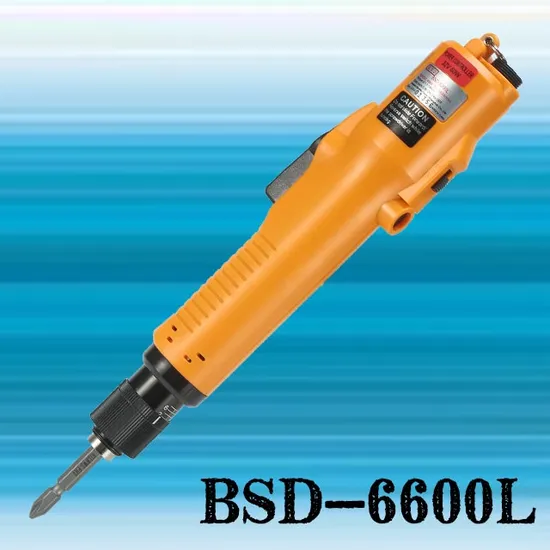

Bsd-6600L Kilews Torque Precision Fully Automatic Electric Screwdriver for Production Line, Production Tools, Shut off Clutch
| US$113.73-199.82 | 10 Sets (MOQ) |
Basic Info.
Model NO.
BSD-6600L
Voltage
DC Low Voltage
Power Supply Voltage
220V
Automation
Fully Automatic
Power Source
Electricity
Function
Professional, Household
Condition
New
Customized
Non-Customized
Torque (N.M)
0.29~1.57
Power Consumption
48W
Speed (r.p.m)
700/1000
Applicable Screw Size
2.3~3.5 mm
Starting Method
Trigger Start
Power Supply
Bsp-32hl-60W
Transport Package
33.5*11*9cm
Specification
DC TYPE ELECTRIC SCREWDRIVER WITH POWER SUPPLY
Trademark
BSD
Origin
China
HS Code
84672990
Production Capacity
50000 Piece/Year
Product Description
FeaturesNew technology high temperature-resistant, vibrating-resistant, slippery-resistant, friendly holder, free from fatigue under long-time using and improve production efficiency. Low-voltage automatic clutch electric screwdrivers with power controllers, can keep long-time operation, high stability, no influence by fluctuated voltage and improve production efficiency. High tech DC motor made by Japanese materials. Fast start with low electric current. Suitable for high-tech PC, notebook computers, game cube, etc. Specifications
| No | Item | Data | ||
| 1 | Torque | 0.29~1.57N.m | 3~16 kgf.cm | 2.57~13.89 Lbf.in |
| 2 | Unloaded Rotation Speed(r.p.m) | Lo 700 Hi 1000 | ||
| 3 | Torque Adjustment | Stepless | ||
| 4 | Screw Size Dia(mm) | 2.3~3.5(Machine Screw) | 2.3~3.0(Tapping Screw) | |
| 5 | Power Consumption | 48W | ||
| 6 | Weight(g) | 480 | ||
| 7 | Length(mm) | 230 | ||
| 8 | Repeatable Torque Accuracy (%) | ±3% |
External Dimention
Torque Range Reference Chart
Product Configuration
Successful Project
Company Photo
