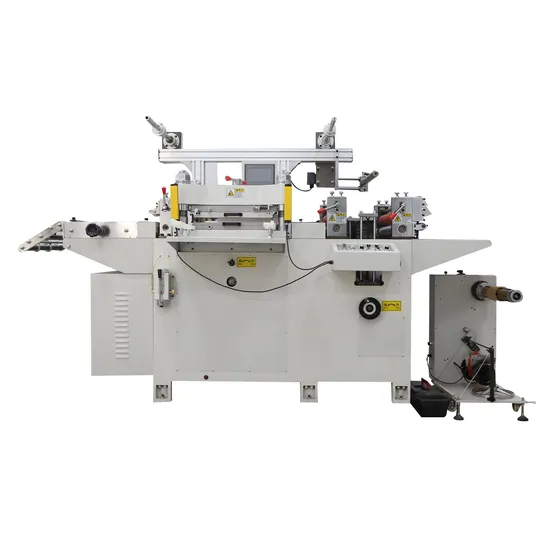

Paper/Label/Foam/Sticker/Adhesive Film Automatic Kiss Cut Die Cutting Machine

Product Description

Product Description Die cutting machine for paper/foam/paper/film/sticker/film
Automatic Die Cutting Machine
1, Automatic cutting machine
2, for Roll Film, Foam, Paper, Sticker, Label Die Cutting3, Machine With Lamination+Punching+Sheeting Function
sticker paper cutting machine 1, Feature: This is a kind of flat-bed die cutting machine with high precision, whose material-going is controlled by servo motor. The three photoelectric eyes do the web guiding job. Die cutting, laminating, waste rewinding an sheeter ( or rewinding) can be finished in one process. The machine is applicable to die cut adhesive paper label, Dacron film label and laser anti-false label. It is an ideal auxiliary for flexo printer, silk-screen printer, rotogravure printer and so on. Product Parameters
2, Main Technical Parameter:

Model	DP-320B	DP-420B
Die Cutting Speed	20-180m/min	20-180m/min
Max Putting Diameter	600mm	600mm
Max Web Width	320mm	410mm
Max Die Cutting Width	300mm	410mm
Max Die Cutting Length	290mm	450mm
Positioning Precision	0.10mm	0.10mm
Total Power	2.5kw	3.5kw
Power Supply Voltage	220V	380V
Machine Weight	1500kg	2000kg
place need in Dimensions(L X W X H)	6000X1350X1700mm	6600X1550X1750mm

3, Charateritics: 1. This is a kind of flat-bed die cutting machine with high precision, whose material-going is controlled by servo motor. 2. The three photoelectric eyes do the web guiding job. 3. Die cutting, laminating, waste rewinding an sheeter (or rewinding) can be finished in one process. 4. The machine is applicable to die cut adhesive paper label, Dacron film label and laser anti-false label. 5. It is an ideal auxiliary for flexo printer, silk-screen printer, rotogravure printer and so on. 4, Optional Configurations: 1. Hot stamping 2. Punching 3. Laminating 4. Adding conveyor belt 5. Full-cut for die cutting After-service: 1. Warranty for machine: 12months 2. After-service: A reply within 24 hours 3. A free training in our factory available before delivering machines
separate waste at here :
OPTIONAL OF LAMINATION MACHINE UNWINDING : Detailed Photos
Application
Company Profile
ABOUT OUR COMPANY
Kunshan Dapeng Precision Machinery Co.,Ltd established in 2009 , Start the export from 2011 , and bought own company buiding at 2020 , Located at No.511, North of Huangpujiang Road, Kunshan City , Jiangsu , China .
Dapeng Machinery is professional manufacture of high precision Die-Cutting Machine and high precision hydraulic die cutting machine , Microcomputer control Slitting machine , laminating and slitting machine , Roll to Sheet Cutting machine and other customized machine as Non-standard for customer requirement . The machine are widely applied to various shielding material , sticker material , insulating material , conducting material , electronic material and LCD glass etc. laminating , striping and die cutting process .And vanity , bag, shoes and hats industry , plastic industry , all kinds of rope , strip and roll material,trimming processing and so on
The company has the excellent manufacturing equipment , abundant technology strength , the perfectionism quality management system and after-sales service .The company focused on quality-oriented and customer benefit first operating method , gain the trust and praise from our customer , the products command a ready market at home and abroad. The company adopt inland advanced technical and create , through 15 years transform and innovate , developed many kinds of machine type by themselves , and can customize many kinds of multifunction machine.Dapeng enterprise to bring customers not only products , but more important is their professional service and expertise . In the competitive market , the company stick to " QUALITY UPPERMOST , USER SUPREME " for the business purpose all along to support the more perfect and excellent service for home and abroad customer , and make a Win-Win situation.
our production factory
