Versatile Homogenizing Mixer for Liquid Washing and Mixing Needs

Product Description

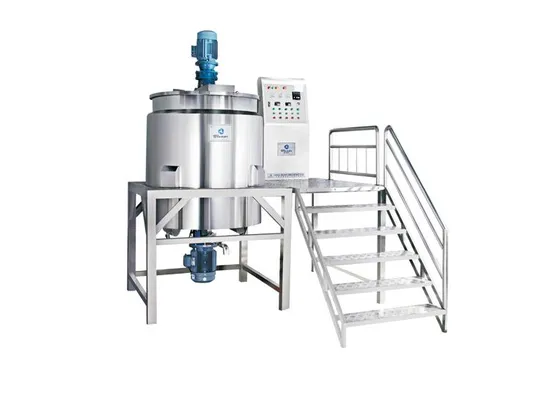

Liquid Washing Homogenizing Mixing Tank for Liquid Products Mixing
Brief introduction to representative production process:
1. The heating pot & the cooling pot are used independently so as to enhance efficiency and save energy.
2. The material sucking(AES)homogenizer is adopted to accelerate the dissolution and alleviate labor intensity.
3. The whole machine has compact structure with convenient operation.
4. If it is allocated with heating water furnace, the plate type heat exchanger will make the using effect better.
Usage
This unite is available for manufacturing liquid products(such as detergent, shampoo, shower gel, ect) It integrates mixing, homogenizing, heating, cooling, pump discharging finished products and fefoaming(optional)functions. It is the ideal equipment for liquid products in domestic and international factories.
Performance And Features
The all-round wall scraping mixing adopts the frequency conventer for speed adjustment, so that high quality products with different process can satyisfy customer requirements.
The diversified high-speed homogenizer can powerfully mix solid and liquid raw materials and rapidly dissolve many indissoluble materials such as AES, AESA, LSA, ect. During the liquid detergent production process so as to save energy consumption and shorten production period.
The pot body is welded by imported three-layer stainless steel plate. The tank body and the pipes adopt mirror polishing, which fully conforms to GMP requirements.
According to customer's requirement, the tank can heat and cool materials.
The heating way include steam heating & electric heating. Easy to discharge, bottom direct discharge or by transfer pump.
Technology Parameter of LW Liquid Washing Homogenizing Mixer

Model	Capacity	Homogenizing motor(kw)	Stir motor(kw)	Length(mm)	Wide(mm)	Height(mm)	Total power(kw)	Limit vacuum(Mpa)
LW-200	200L	2.2-4	0.75	-	-	-	5	-
LW-300	300L	2.2-4	1.3	-	-	-	6	-
LW-500	500L	5.5-7.5	3	-	-	-	11	-
LW-800	800L	7.5-11	4	-	-	-	12	-
LW-1000	1000L	7.5-11	4	-	-	-	12	-
LW-2000	2000L	11-15	5.5	-	-	-	17	-
LW-3000	3000L	15-18	7.5	-	-	-	23	-
LW-4000	4000L	21	7.5	-	-	-	29	-
LW-5000	5000L	21	7.5	-	-	-	29	-

Technology Parameter of EL Liquid Washing Homogenizing Mixer

Serial No.	Specification	Voume	Blending Power	Blending Rotation Speed	Homogenizing Power	Homogenizing Rotation Speed	Heating Method
		L	KW	R/min	KW	R/min
1	ELJ-(X)-200	200	1.5	0-65	4	3000	Steam Heating or Electric Heating
2	ELJ-(X)-500	500	2.2	0-65	7.5	3000
3	ELJ-(X)-1000	1000	4	0-65	11	3000
4	ELJ-(X)-1500	1500	5.5	0-65	11	3000
5	ELJ-(X)-2000	2000	5.5	0-53	15	3000
6	ELJ-(X)-3000	3000	7.5	0-53	18.5	1500
7	ELJ-(X)-5000	5000	11	0-53	22	1500

Technology Parameter of PME Liquid Washing Homogenizing Mixer

Model	Capacity (L)	Mixing Power (KW)	Mixing Speed (r/min)	Homogenizing Power(KW)	Homogenizing Speed(r/min)	Heating Method
PME-200	200	0.75	0-65	2.2-4	3000	Steam Heating or Electric Heating
PME-300	300	0.75	0-65	2.2-4	3000
PME-500	500	2.2	0-65	5.5-7.5	3000
PME-1000	1000	4	0-65	7.5-11	3000
PME-2000	2000	5.5	0-53	11-15	3000
PME-3000	3000	7.5	0-53	18	3000
PME-5000	5000	11	0-42	22	3000
