Decorative Wall Panel Selflock Roof Panel Machine with Automatic Decoiler for Roofing

Product Description

Product Description

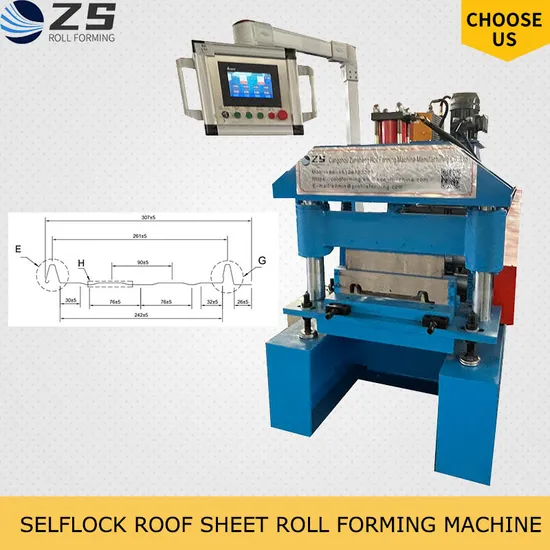

Innovative Self Lock Metal Join Hidden Roof Sheet Roll Forming MachineAdvanced Self Lock Metal Join Hidden Roof Sheet Roll Forming Machine is one of the most popular types of roll forming machines available. It expertly crafts various shapes of steel roof sheets, perfect for use in buildings, factories, supermarkets, and more. This versatile machine accommodates coil widths of 500mm and thicknesses ranging from 0.3mm to 0.8mm. Built with a robust 16mm thick wall board type to ensure a solid machine frame, it operates at impressive speeds of up to 15m/min. The PLC with touch screen operation makes the machine incredibly user-friendly and straightforward to operate.
Elegant Profiles:
We offer customization options to tailor the machine to your specific designs and requirements:

Precision Hydraulic Curve Machine:

Detailed Roll Forming Machine Components:

No.	Name	Qty
1	De-coiler	1 Set
2	Forming Machine	1 Set
3	Hydraulic Cutting Device	1 Set
4	PLC Control Box	1 Set
5	Hydraulic Pump Station	1 Set
6	Production Support Table	1 Set
7	Pre-sliding Cutter	1 Set

Efficient Working Flow:
Uncoiler ----- Molding Core ----- Hydraulic System ----- Automatic Control System ----- Automatic Shearing Mechanism ----- Products Receiving Tables
Detailed Photos
Feeder System:
Introducing the latest innovation in feeder systems.
Experience unparalleled stability with no coil swing.
Effortless adjustment for optimal performance.
Working width: Within 600mm
Main Roll Forming System:
Driving Type: Choose from Chain (common), Gear, or Gearbox;
Forming Model: Available in Integral Forming or Split Forming;
Forming Machine Structure: Options include Medium-plate Type (common), Arch Type, or Guide-pillar Type;
Roller Material: 45# high-quality steel
Shaft Diameter: 70mm, made from robust 45# steel
Motor Power: Options include 4.0kW, 5.5kW, or custom specifications as per design requirements;
Main Frame: Constructed using durable 350# or 400# H-beam steel welded.
Roller Details:
Precision CNC-processed rollers ensure high accuracy, delivering perfectly formed products every time.
Hydraulic Cutting System:
Working Model: Available in Hydraulic Cutter (common) or Electric Cutter;
Cutter Blade Material: Cr12, known for its superior durability.
Hydraulic Oil Pump System:
Equipped with a hydraulic oil pump featuring an efficient fan cooling system.
Power: 4kW
Reliable gear pump mechanism.
Automatic Seaming Machine:
Operates efficiently using electrical power.
PLC Control System
Automatically controls the quantity and cutting length with precision.
Input production data (batch, pcs, length, etc.) on the touch screen, and let the system handle the rest.

Combined With	PLC, Inverter, Touch Screen, Encoder, etc
PLC	Siemens (German brand) Or Delta(Taiwan brand)
Inverter	Siemens (German brand) Or Delta(Taiwan brand)
7-Inch Color Touch Screen	Siemens (German brand) Or Delta(Taiwan brand)
Encoder	Omron (Japan brand)Switch Bottom, Indicate Light, Power Supply, Intermediate Relay, AC Contactor
Thermal Relay	Siemens (German brand) Or Delta(Taiwan brand)
Air Switch	LG-LS(Korea brand)Cut-to-Length Tolerance≤±1 mmControl Voltage 24V

After-Sale Service:
1. The warranty period is 18 months from the date of receipt of the machine.
Within the 24 months, we will send replacement parts free of charge.
2. Lifetime technical support for all our machines.
3. Technicians available for installation and training at the client's factory, additional costs apply.
Terms of Trade:

Minimum order quantity (MOQ)	1 Set
Delivery time	about 60 workdays
Port of loading	port of Tianjin
Type of payment	by T/T or by L/C
Export	to more than 80 countries and regions, including South Korea,Taiwan, UK, Ireland, Greece, Australia, USA, Mexico, Brazil, Russia,Saudi Arabia, UAE, Iran , India, Singapore, Malaysia, Thailand, Indonesia, Philippines, Vietnam, South Africa, Nigeria, Egypt, etc

Packing Style:

Packing method

Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
