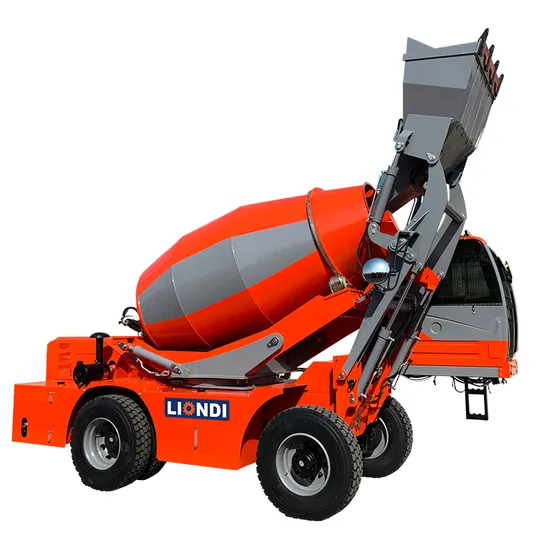

Liondi 4.0 Cu. M. High-Matched Unibody Frame Self-Feeding Mixer Truck
Basic Info.
Model NO.
LMT-40
Certification
ISO9000, CCC, EPA, CE
Transmission Type
Automatic
Emission Standard
State four
Displacement
4
Payload
20T
Fuel
Diesel
Drive Mode
4-Wheel Drive
Maximum Horsepower
91kw
Condition
New
Model
Lmt-40
Output Per Lot
4cubic Metres
Horizontal Rotation
270 Degrees
Discharge Port Height
2m
Capacity
18 Cubic Hours
Engine
Yuchai Power Ycd4j22t-125
Rated Power
91kw
Climb
40 Degrees
Speed
Low Speed 0-25 Kph,/High Speed 0-40 Kph
Power System
24V
Weight
9000 Kg
Turning Radius
3000mm
Transport Package
Container Packing
Specification
900kg
Trademark
Liondi
Origin
Shandong
HS Code
8429510000
Production Capacity
About 50, 000 Units Are Produced Each Year
Product Description
Product Description Liondi 4.0 cu.m. high-matched unibody frame self-feeding mixer truck1.Output per lot: 4.0 cubic metres
2.Drum rotation: discharge port height 2.2 meters, tank horizontal rotation 270 tank can be raised and lowered
3.CAPACITY: Up to 5 batches per hour, 20 cubic hours
4.ENGINE: Yuchai power ycd4p22t 125, diesel, water-cooled, 4 cylinders, 2400 RPM, rated power 91KW
5.Drive mode: The engine is directly connected to the 315 torque converter through the drive shaft to the transmission with dual high and low speed through the drive shaft to the front and rear axles to achieve 4-wheel drive
6.SPEED: dual altitude, low speed 0-25 kph, high speed 0-50 kph
7.Driver's seat: Widen the luxurious cab of the excavator, front window can be opened, anti-roll, anti-falling object type, double armrest cushion seat
8.Hydraulic System: closed oil, axial piston motor, three gear pump to participate in the work, tank adjustable speed
9.JOYSTICK: Two hydraulic pilot joysticks control the scoop, upper arm, 270 turn, lift tank
10.Water Supply System: self-priming driven pump, 24V self-timing Centrifugal pump, hydraulic high-pressure car washing machine
11.BRAKES: internal hub brakes and emergency brakes on 4 wheels, activated by a small Servo pump on a separate two-loop, negative-pressure parking brake, front and rear axles equipped with internal wheels
Product Parameters
Detailed Photos
Company Profile
FAQ
| 1. who are we? |
| Our company was established in Shandong in 2020, mainly selling road roller, excavator, forklift, wheel loader, backhoe loader mobile light tower, road crack sealing machine and concrete leveling equipment. |
| 2.Do you have free samples? |
| Sorry,no |
| 3.What is the price terms? |
| FOB, CIF, EXW |
| 4.How about the MOQ of mixer truck? |
| 1 set is OK. |
| 5.what can you buy from us? |
| Mixer truck |
| 6. How is your price compare with factories? |
| Our company specializes mixer truck, behind the factory support, to provide you with competitive prices. And the company has a variety of mixer truck to meet all your needs. |
