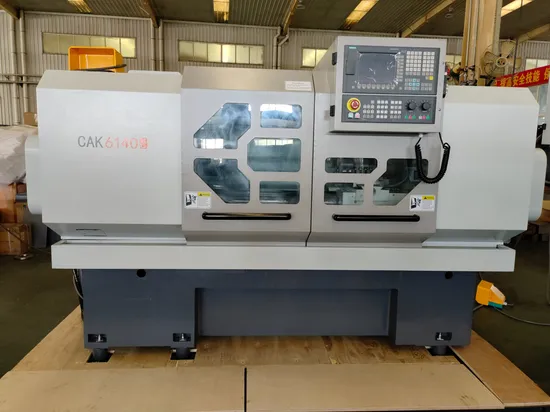

Flat Bed CNC Lathe Cak6140c
| US$9,720.00-12,290.00 | 1 set (MOQ) |
Basic Info.
Model NO.
CAK6140C*1100MM
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.02~0.03(mm)
Performance Classification
High-End CNC Machine Tools
Certification
ISO 9001
Condition
New
Distance Between Centers
1100mm
Transport Package
Veneer Box
Specification
400*1100mm
Trademark
xing
Origin
Linyi, Shandong, China
HS Code
84581100
Production Capacity
1000 Sets
Product Description
Main featureThe guideways are hardened and precision ground·Infinitely variable speed change for spindle·The system is high in rigidity and accuracy·The machine can smoothly run with low noise·Design of electromechanical integration, easy operation and maintenance
It can turn taper surface, cylindrical surface, arc surface, internal hole, slots, threads, etc., and is used especially for mass production of disc parts and short shaft in the lines of automobile and motorcycle.
Standard configuration:
GSK CNC system, lighting & cooling systems, spindle &
bedway lubrication system, electric toolpost, half enclosed
protective cover.
Special configuration:
CNC systems of FANUX, SIEMENS, HUAZHONG & KND
power chuck, gang tool holder, steady rest, follow rest,
pad iron, communication interface.
| Parameter | |
| SPECIFICATIONS | CAK6140C*1100 |
| Swing diameter over bed | ф400mm |
| Swing diameter over table | ф200mm |
| Distance between centers | 1100mm |
| Bedway width | 320mm |
| Spindle taper | MT6 |
| Spindle nose | A2-6 |
| Spindle speed | 50~3000r/min |
| Spindle bore | ф66 |
| Chuck size | 200mm |
| Longitudinal stroke | 1000mm |
| Cross stroke | 300mm |
| Turning tool size | 20×20mm |
| Tailstock stroke | 140mm |
| Tailstock taper | MT4 |
| Rapid feed | X:6m/min Z:8m/min |
| Min. setting unit | 0.001mm |
| Repositioning accuracy | X:0.012mm Z:0.016mm |
| Circle/cylinder | 0.005,0.03/300mm |
| Torque of feed motor | X:6N.m Z:7.5N.m |
| Power of motor | 5.5kW |
| CNC system | SIEMENS808D |
| N.W/G.W | 1730/1830kg |
| Overall dimensions | 2250×1400×1730mm |
| Package | Veneex box |
