Weichai Power Diesel Generator Cheapest Price Present Offer 1600kw Diesel Power Bank Generator Sets 2000kVA

Product Description

Efficient production, Professional ability, Excellent quality
Specifications
1) Output range: From 15kW (18.75KVA) up to 2800kW (3500KVA)
2) The Engine models: 16M33D1980E310
3) Alternator: Marathon, Leroy Somer and Chinese brand with brushless and "H" Class Insulation.
4) Water-cooled
5) Key start / auto start
6) Sound-proof / weather-proof canopy is optional
7) 230 / 400V AC, 50Hz / 60Hz, three-phase and four wires alternating current output
Power Range

Diesel Genertor Series with Weichai Engine
Unit model	Output power	Output voltage	Output current	Rated frequency	Rated speed	Dimensions	Weight
HQ50GF	50kW	110/220/380v	90A	50/60Hz	1500/1800rpm	1800×790×1650(L×W×H mm	850kg
HQ75GF	75kW	110/220/380v	135A	50/60Hz	1500/1800rpm	2100×770×1320(L×W×H mm)	980kg
HQ100GF	100kW	110/220/380v	180A	50/60Hz	1500/1800rpm	2100×770×1320(L×W×H mm)	980kg
HQ120GF	120kW	110/220/380v	216A	50/60Hz	1500/1800rpm	2500×800×1390(L×W×H mm)	1550kg
HQ150GF	150kW	110/220/380v	270A	50/60Hz	1500/1800rpm	2800×890×1550(L×W×H mm)	1900kg
HQ200GF	200kW	110/220/380v	360A	50/60Hz	1500/1800rpm	2900×890×1510(L×W×H mm)	2500kg
HQ250GF	250kW	110/220/380v	450A	50/60Hz	1500/1800rpm	3000×950×1550(L×W×H mm)	3100kg
HQ300GF	300kW	110/220/380v	540A	50/60Hz	1500/1800rpm	4100×1500×2150(L×W×H mm)	3100kg
HQ350GF	350kW	110/220/380v	630A	50/60Hz	1500/1800rpm	3000×950×1550(L×W×H mm)	3250kg
HQ400GF	400kW	110/220/380v	720A	50/60Hz	1500/1800rpm	3400×1050×1850(L×W×H mm)	3550kg
HQ500GF	500kW	110/220/380v	900A	50/60Hz	1500/1800rpm	4050×1540×1920(L×W×H mm)	5200kg
HQ600GF	600kW	110/220/380v	1080A	50/60Hz	1500/1800rpm	4050×1540×1920(L×W×H mm)	5200kg
HQ700GF	700kW	110/220/380v	1260A	50/60Hz	1500/1800rpm	5050×1840×1920(L×W×H mm)	8000kg
HQ800GF	800kW	110/220/380v	1440A	50/60Hz	1500/1800rpm	5050×1840×1920(L×W×H mm)	9000kg
HQ850GF	850kW	110/220/380v	1530A	50/60Hz	1500/1800rpm	5050×1840×1920(L×W×H mm)	9000kg
HQ900GF	900kW	110/220/380v	1620A	50/60Hz	1500/1800rpm	5550×1940×1920(L×W×H mm)	12000kg
HQ1000GF	1000kW	110/220/380v	1800A	50/60Hz	1500/1800rpm	6550×1940×1920(L×W×H mm)	12000kg
HQ1200GF	1200kW	110/220/380v	2160A	50/60Hz	1500/1800rpm	6550×1940×1920(L×W×H mm)	12000kg
HQ1500GF	1500kW	110/220/380v	2700A	50/60Hz	1500/1800rpm	7550×2240×2320(L×W×H mm)	15000kg

Note: Only part of the product power is shown. The specific parameters are subject to actual conditions. If necessary, please consult customer service. Product details

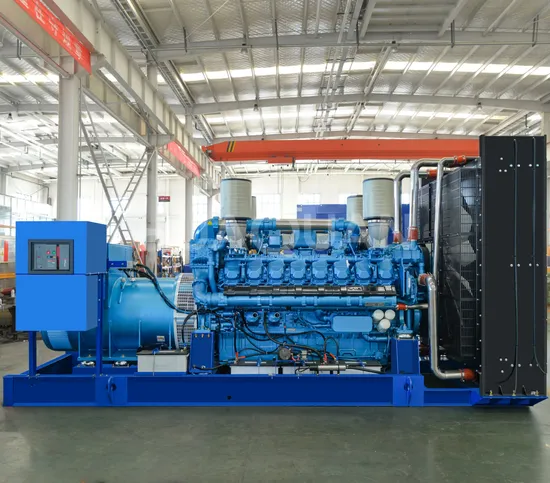

Model	HQ1600GF
Output power	1600kW
Power factor	COSΦ = 0.8 (lagging)
Output voltage	400V / 230V
Output current	2880A
Rated frequency	50Hz/60Hz
Rated speed	1500rpm/1800rpm
Dimension	7550×2240×2320(L×W×H mm)
Weight	15000kg
Diesel engines brand	WEICHAI
Diesel engines model	16M33D1980E310
Start method	DC 24V Electric
Cooling method	Closed water-cooling
Speed regulation mode	Electrically controlled high voltage common rail
Protection class	IP22
Connecting mode	3-phase 4-wire Y type
Insulation class	H class

You can add automation, sound attenuated enclosure and mobile trailers. Sincerely welcome you to establish long-term cooperation with us, to create a bright tomorrow.
Company Profile
Shandong Huaquan Power Co., Ltd. is located in Shandong, China. It was established in 2010 with a registered capital of 70 million and more than 100 R & D personnel. It currently covers an area of more than 40,000 square meters. The main business is divided into three major sections: emergency equipment, energy storage power supply, and power engineering. The main products include energy storage power supply, diesel power stations, gas power stations, trailer power stations, container power stations, flood prevention emergency pumps, integrated generators, container transformation stations and so on. Adhering to the corporate mission of "making green energy all over the world", Huaquan Company has created three major brands including "HQ-POWER", "HUAQUAN" and "huaquan". At present, the company has developed into a powerful brand in the power industry, and its products are exported to more than 100 countries and regions.
Partner


Exhibition

Customer case
As backup and mobile power sources supporting infrastructure construction, our company's products are mainly aimed at the fields of communication and power industry, and are widely used in many industries with high reliability requirements for power supply, such as offshore shipbuilding, petroleum and petrochemical, mining, manufacturing, transportation, high-rise buildings, banking and finance, the company's products are mainly aimed at the fields of communication and power industry, and are widely used in many industries with high reliability requirements for power supply, such as ship electricity, petroleum and petrochemical, mining, manufacturing, transportation, high-rise buildings, banking and finance. Relying on a comprehensive and powerful marketing service system, the company's products have now covered various parts of the country and are best-selling in North America, Europe, South America, Australia, Africa, the Middle East, Southeast Asia, and other parts of the world.
Packing and shipping
FAQ
1. Who are we?
Shandong Huaquan Power Co., Ltd. is located in Weifang City, Shandong Province. We have been specialized in producing generators for more than ten years. We have our own registered trademarks, production lines, testing equipment, sales team and research and development team. Our main products are portable power station, diesel oil generator set, gas generator set, trailer power station, container power station, water pump sets, integrated generator, container converting substation and so on.
2. How can we guarantee quality?
Huaquan Power focus on quality and responsibility .we pays more attention to the quality what we offer to our client and also care the after sale service for our customers.
(1). Huaquan Power series diesel generators offer one year warranty or 1000 running hours, during its warranty time, we offer spare parts for free. (Caused by the quality problems)
(2). When you buy our generator, we suggest you choose our spare parts service pack. When you need buy spare parts, you can get them from us all the time.
(3). When you meet problems, you will easy to contact with us.
3. Delivery and Payment terms:
(1) Delivery always after your payment within 3-7 days, we have so many sets in stock, any time you can order from us.
(2)We accept T/T, L/C payment and so on, 30% as deposit.
