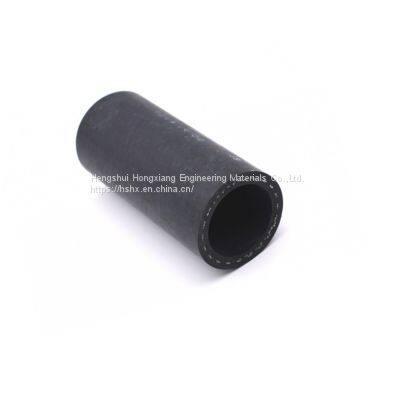

DIN EN853 1SN/ SAE100 R1AT Steel Wire Braided Hydraulic Hose

Product Details

Product Description

Product Description
The high pressure steel wire braided hose is mainly used in medium and high pressure hydraulic systems. The EN853 1SN steel wire reinforced hydraulic hose is reinforced by a layer of high-strength steel wire, which can work well in high pressure environments.
High pressure one steel wire braided hydraulic hose can be used in mining hydraulic fluids, cranes, mining equipment, injection molding machinery, agricultural machinery and various machinery fields.
High pressure one steel wire braided hydraulic hose is also commonly used for conveying glycol, mineral oil, fuel, lubricating oil, emulsion, etc.
In addition, since the surface of the steel wire braided hydraulic hose can be divided into two types: smooth surface and fabric surface, it has weather resistance, ozone resistance, aging resistance and sunlight resistance.
Applicable Specification: DIN EN853 1SN/ SAE100 R1AT/ ISO 1436-1SN
Working temperature: -40 °C to +100 °C; (-40 °F to +212 °F).

Inside Diameter(ID)			Reinforcement Diameter (RD)	Outside Diameter (OD)	Max Working Pressure		Min Burst Pressure		Bend Radius	Weight
DN	inch	mm	mm	mm	bar	psi	bar	psi	mm	Kg/mt
-03	3/16 "	5.0	9.4	11.4	250	3625	1000	14500	90	0.17
-04	1/4 "	6.3	11.0	13.0	225	3263	900	13052	100	0.21
-05	5/16 "	7.9	12.8	14.8	215	3118	860	12472	115	0.26
-06	3/8 "	9.5	14.8	17.2	180	2610	720	10440	130	0.33
-08	1/2 "	12.7	18.0	20.2	160	2320	640	9280	180	0.42
-10	5/8 "	15.9	21.3	23.8	130	1885	520	7540	200	0.50
-12	3/4 "	19.1	25.0	27.8	105	1523	420	6092	240	0.64
-16	1 "	25.4	32.5	35.5	88	1276	352	5104	300	0.86
-20	1-1/4 "	31.8	41.3	44.0	63	914	252	3656	420	1.26
-24	1-1/2 "	38.1	47.7	51.0	50	725	200	2900	500	1.55
-32	2 "	50.8	60.4	64.0	40	580	160	2320	630	2.02
-40	2-1/2 "	63.5	73.0	77.0	40	580	160	2320	800	2.53
-48	3 "	76.2	83.5	88.0	35	508	140	2032	920	2.74
