Concrete Pump Diesel and Electric Power Concrete Mixing Pump

Concrete Pump Diesel and Electric Power Concrete Mixing Pump

US$3,200.00-4,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
Concrete Pump
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Construction
Structure
Cylinder Type
Productivity
6m3/H
Feeding Height
1000mm
Vibrating Amplitude
2.6mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Yellow
Model
Hw15-15
Max.Aggregate Size
15mm
Max Vertical Delivery Distance
20-30m
Max Horizontal Delivery Distance
40-50m
Transport Package
Wooden Case
Specification
1750*700*1200mm
Trademark
HW
Origin
China
HS Code
8413400000
Production Capacity
1000sets/Month

Product Description

To customers:
1. We are a factory focus in Construction Machines for more than 10 years with CE, ISO, BV, TUV. 2. All of our Concrete Pump has both electric and diesel power for your choice;
3. Specialized After-Sales Service Team for 24h aboard site serving;
4. Overseas Spare Parts, guarantee the sufficient spare parts locally.
Products Description:

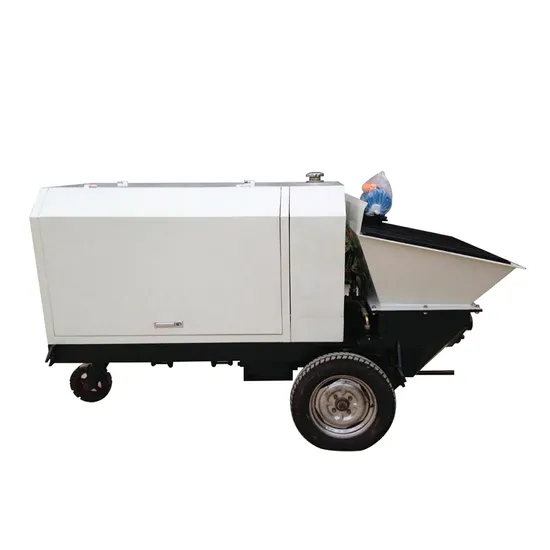

Hengwang HW15-15 Concrete Pump
Max Vertical Delivery Distance : 30m
Max Horizontal Delivery Distance : 50mmDelivery Capacity: 6m3/h
Hengwang Concrete Pump: High construction efficiency; Continuous pumping of field agitator, siring with traditional mixer Compared with mixing and manual feeding, the efficiency is increased by more than 5 times.
Product Paramenters:
Concrete Pump (Model: HW15-15)
Power
 15kw
Voltage
 220V/380V, (We also have Diesel type)
Max.Aggregate Size
 15mm
Max Vertical Delivery Distance
 20-30m
Max Horizontal Delivery Distance
 40-50m
Delivery Capacity
 5-6m3/h
Cylinder Stroke
 350mm
Diameter of Delivery Pipe
 80-100mm
Total Weight
 600kg
Steel pipes
 10m
Hoses
 10m
Overall Dimension (L*W*H)
 1750*700*1200mm

Machine details
Packing details: Wooden case
