Water Backwash Selfcleaning Filter Externally Internal Fed Rotary Drum Cylindrical Cartridge Basket Johnson Strainer Trommel Sugar Mill Wedge Wire Screen

Product Description

Water Backwash Selfcleaning Filter Externally Internal Fed Rotary Drum Cylindrical Cartridge Basket Johnson Strainer Trommel Sugar Mill wedge wire screen Product Description We Manufacture and Supply high quality water backwash selfcleaning filter rotary drum Cylindrical Cartridge Screen basket that are made from looped wires formed into a deep wedge-shaped section. According to buyer's needs, we can make available Wedge Wire Screen in various shapes and forms including flat panels, curved sieve bends, conical baskets and cylinders. Our testing team ensures that Wedge Wire Screen passes all quality checks before supplying. Our clients trust us for delivering only premium Wedge Wire Screen at reasonable price. We always deliver all orders on time.
water backwash filter screen drum
https://hengshui-guangxing.en.made-in-china.com/product/esOtPxvuCdYE/China-Circular-Rotary-Drum-Screen-Diameter-100-to-2500-mm.html
Selfcleaning filter drum screen
https://hengshui-guangxing.en.made-in-china.com/product/NXoxHVCEndUA/China-Selfcleaning-Filter-Rotary-Drum-Screen-From-China-Manufacturer.html
Sugar Mill Drum screen
https://hengshui-guangxing.en.made-in-china.com/product/WZfAlEpuvQVS/China-Sugar-Mill-Wedge-Wire-Drum-Screen-China-Facory-Customize.html
rotating drum screen
https://hengshui-guangxing.en.made-in-china.com/product/NXoxHVCEndUA/China-Selfcleaning-Filter-Rotary-Drum-Screen-From-China-Manufacturer.html
water treatment drum screen
https://hengshui-guangxing.en.made-in-china.com/product/NXoxHVCEndUA/China-Selfcleaning-Filter-Rotary-Drum-Screen-From-China-Manufacturer.html
wedge wire screen cylinder
https://hengshui-guangxing.en.made-in-china.com/product/kdiGXWTKAxhB/China-Wedge-Wire-Screen-Cylinders-China-Manufacturer.html

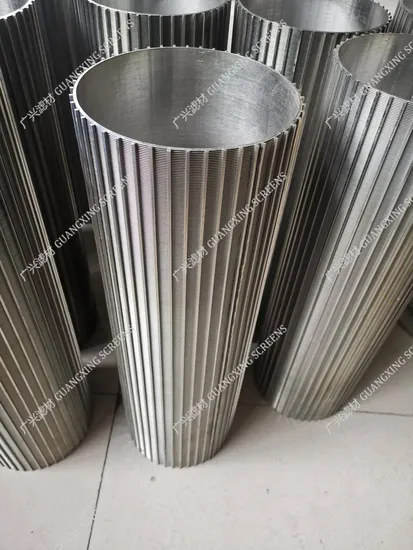

Rotary drum wire screen, also called wedge wire cylinder, is a type of cylindrical "V" shape wedge wire screen, which is made of stainless steel V shaped wires and support rods. As the wedge wire rotary drum screen is working under high pressure when separation and filtration, so there is reinforced rods on the structure.
The end of rotary drum wire screen is welded flanges or welded rings for easy installation.
The slot sizes and structures may varies according to different materials and working conditions.

Material	SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc
OD Range	19mm-2000mm
ID Range	13mm-1981mm
Length Range	Up to 6000 mm
Slot Range	20 micron to 3000 micron (Tolerance:+-5 micron)
Wedge Wire	0.5x1.5	0.75x1.5	1x2	1.5*2	2x3	2*4	3*5
Support Rod	1.5x2.5	1.5x2.5	1.5x2.5	1.8*2.5	2x3	2x4	3x5
	2x3	2x3	2x3	2x3	2x4	3x5	3x6
					3x5	3x6	3x10
					3x6	3x10	4x7
					3x10	4x7	5x6
					4x7	5x6	5x8
End Finishing	Thread fitting, Flange, Closed Plated, Resistance welded closed plate, Metal Ring, etc
Note	Customized According To Requirement

Applications
Poultry, meat and seafood processing Fruit and vegetables processing Snack and frozen food processing Brewing and wine making processing Chemical processing Municipal waste water treatment plant Industrial waste water treatment plant Tanning industrial processing Detailed Photos
Certifications
Packaging & Shipping
Company Profile hengshui guangxing screens Co.,ltd is a leading manufacturer & supplier of custom-built WEDGE WIRE SCREEN. The superior quality and reliability of our SCREENS are setting new standard in process of filtration & separation. The screen surface is made of looped and pressed wires of Stainless Steel,assembled on threaded rods,which give a very high load screening capacity and great resistance to wear. The screens are available in slit openings from 0.35 mm to 1.55 mm in different size as per need of application. Sharp wire edge cut into a flowing stream, providing an efficient liquid solid separation. Screens are available in flat panels cylinders or unique fabricators shapes. Uniform, narrow slot width resulting in precise screening and higher filtering efficiency.

Company information
Company Information
Hengshui Guangxing Screens Co.,Ltd is a leading manufacturer of water well screen, flat panel screens, intake screens, rotary drums, cartridges and fabricated stainless wedge wire screen products.
Our factory founded in 1986 to produce the best possible profile wire screens available.

We provide screening solutions to almost every industry, including:
Water Well,
Food &Beverage Screens,
Pharmaceutical & Biological industries,
Refining & Petrochemical,
Water Treatment & Liquid / Solids Separation,
Mineral & Aggregate Processing,
Pulp & Paper Screens.

Guangxing Screens is producing wedge wire and profile wire in several materials, with a wide variety of sizes, shapes and precision openings.

For over 30 years, Guangxing Screens has continuously produced metal products for customers seeking a competitive advantage in their industry. Guangxing Screens is an ISO-9001:2008 registered company.
We are committed to producing quality products which meet or exceed both customer and industry standard. The majority of our products are exported to original equipment manufacturers of 35 countries of Europe, America, Africa, and Asia.

We know our customers and we listen to them and respond quickly to their needs.
