Product Description

Product Description

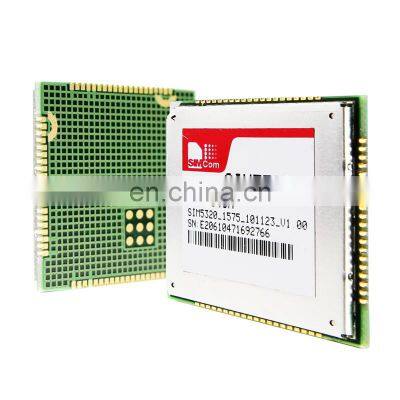

DescriptionSIM5320 SIMCOM gsm/gprs gps module1.Tri-Band/Single-Band HSPA/WCDMA2.Quad-Band GSM/GPRS/EDGE module solution3.low price• SMT type 3G WCDMA Module SIM5320SIM5320 series is Dual-Band HSDPA/WCDMA and Quad-Band GSM/GPRS/EDGE module solution in a SMT type which supports HSDPA up to 3.6Mbps for downlink data transfer.• It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C, Keypad, PCM, etc. With abundant application capability like embedded LUA script, TCP/ UDP/ FTP/ FTPS/ HTTP/ HTTPS/ SMTP/ POP3 and MMS, the module provides much flexibility and ease of integration for customer's application. It is ideal for a wide range of products like PDA, MID, PND, POS, Tracker, AMI, Health Care etc.General features SIM5320A: Dual-Band UMTS/HSDPA 850/1900MHz Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz SIM5320E: Dual-Band UMTS/HSDPA 900/2100MHz Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz SIM5320J: Dual-Band UMTS/HSDPA 850(800)/2100MHz Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz * GPRS multi-slot class 12 * EDGE multi-slot class 12 * WCDMA 3GPP release 5 * Output power - UMTS 850/1900: 0.25W - UMTS 900/2100: 0.25W - GSM850/GSM900: 2W - DCS1800/PCS1900: 1W * Control Via AT Commands * Supply voltage range: 3.3V~ 4.2V * Extended Operation temperature: -30 to +85 * Dimension: 30 * 30* 2.9g * Weight: 5.6 Specifications for GPS * A-GPS: MS-Based, MS-Assisted * Stand-alone GPS Support embedded Script Language * LUA Script Language Specifications for Data transfer * HSDPA - Max. 3.6Mbps(DL) * WCDMA - Max. 384Kbps(DL), Max. 384Kbps(UL) * EDGE Class: - Max. 236.8Kbps(DL), Max. 118Kbps(UL) * GPRS - Max. 85.6Kbps(DL), Max. 42.8Kbps(UL) * CSD - GSM data rate 14.4Kbps - WCDMA data rate 57.6Kbps - WCDMA 64kbps CSD for Video call Specifications for SMS * Point to point MO and MT * Text and PDU mode Specifications for Network Identity and Time zone (NITZ) * Support in GSM and WCDMA Other features * USB Driver for Microsoft Windows 2000/XP/Vista * USB Driver for Windows CE/Mobile * USB Driver for Linux 2.6 * Firmware update via USB * MMS * TCP/IP * FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS * FOTA * eCall Reday Interfaces * USB2.0 * UART * SIM card * SPI * I2C * Keypad * Constant current sink * GPIO * RTC * ADC * PCMWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
