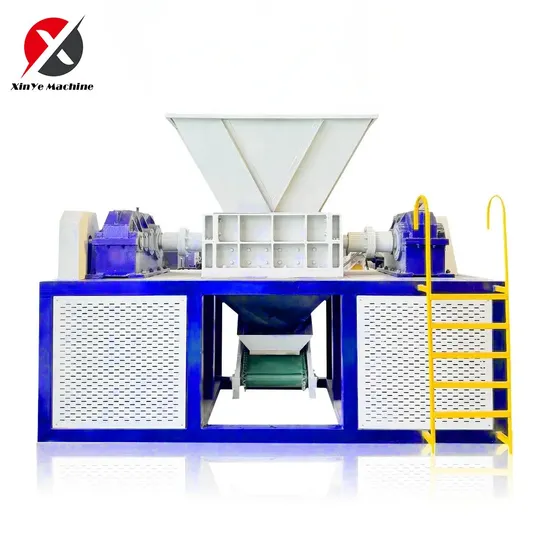

Heavy-Duty Crusher Shredder for Recycling Aluminum Profiles, Rubber Tires & Wood Logs

Heavy-Duty Crusher Shredder for Recycling Aluminum Profiles, Rubber Tires & Wood Logs

US$5,000.00 1 Set (MOQ)

Basic Info.

Model NO.
600/800/1000/1200/1400/1600
Service Life
≥15 Years
Certification
CE, ISO
Voltage
380V
Structure
Horizontal
Transport Package
Standard Exported Package
Specification
600/800/1000/1200/1400/1600
Trademark
XINYE
Origin
China
HS Code
8477800000
Production Capacity
100 Sets Per Month

Product Description

Product Description
1.Dual motor+Dual reducer drive system, low speed, high torque and strong tearingability;
2.German high alloy steel cutting tools, wear-resistant and durable, long service life;
3.42CrMo high alloy steel spindle, high precision machining, good mechanical strengthand strong impact
resistance;
4.Fixed knives are set on both sides of the knife box to prevent material winding, which can be disassembled
independently and easy to maintain;
5.Self aligning roller bearing, 4-fold sealing,effective dustproof and waterproof;
6.PLC control system, current monitoring,overload protection, automatic reverserotation, protection of motor
and tool;
7.The equipment has long service life and low maintenance cost Detailed Photos
Product Parameters
Model 600 800 1000 1400 1600 2100
Main shaft speed(rpm) 73 73 73 73 73 73
Ram travel(mm) 500 820 820 820 1000 1000
Rotor diameter(mm) Φ220 Φ400 Φ400 Φ400 Φ480 Φ480
Number of rotor blades(pcs) 23 44 52 80 94 122
Number of fixed blades(pcs) 4 6 6 10 12 16
Discharge height(mm) 500 610 610 610 950 950
Screen holes diameter(mm) 40 40 40 40 40 40
Motor power(kw) 18.5 37 45 75~90 2x55~2x75 2x75~2x90
Hydraulic power(kw) 1.5 2.2 2.2 5.5 7.5 7.5
Cutting chamber dimensions(mm) 540x600 830x710 830x840 830x1300 1000x1535 1000x1995
Overall dimensions(LxWxH)(mm) 1800x1350x1700 2810x2000x2115 2810x2100x2115 2810x2890x2115 3475x4100x2700 3475x4900x2700
Weight(kg) 1600 4500 4700 6200 10800 13000

FAQ Q:Are you a factory or a trade company?
A:We are a manufacturer with our own factory in Ma'anshan, Anhui Province, China. Welcome to take a visit! Q:How to choose a shredder machine? A:Our technical consulting services can help, recommend the most suitable machine and program according to your needs, capacity, site and other actual situation. Q:How about the service? A:We provide after-sales service, including on-site installation, commissioning equipment, guidance and training of operators etc. Make regular return visits to solve your equipment problems and optimize your equipment maintenance methods. Q:How long is your delivery time?
A:Generally, it will be about 20-35 working days after deposit, which also will affected by the actual situation of the project.
Q:Which trade terms is available? A:FOB, CFR,CIF, EXW and other terms based on your needs.
